- Review
- Open access
- Published:
Perovskite nanocomposites: synthesis, properties, and applications from renewable energy to optoelectronics
Nano Convergence volume 11, Article number: 36 (2024)
Abstract
The oxide and halide perovskite materials with a ABX3 structure exhibit a number of excellent properties, including a high dielectric constant, electrochemical properties, a wide band gap, and a large absorption coefficient. These properties have led to a range of applications, including renewable energy and optoelectronics, where high-performance catalysts are needed. However, it is difficult for a single structure of perovskite alone to simultaneously fulfill the diverse needs of multiple applications, such as high performance and good stability at the same time. Consequently, perovskite nanocomposites have been developed to address the current limitations and enhance their functionality by combining perovskite with two or more materials to create complementary materials. This review paper categorizes perovskite nanocomposites according to their structural composition and outlines their synthesis methodologies, as well as their applications in various fields. These include fuel cells, electrochemical water splitting, CO2 mitigation, supercapacitors, and optoelectronic devices. Additionally, the review presents a summary of their research status, practical challenges, and future prospects in the fields of renewable energy and electronics.
Graphical abstract
1 Introduction
The perovskite structure, which is constructed with an ABX3 atomic arrangement, has attracted increasing attention due to its ability to be implemented in various research areas. This is achieved by manipulating the elements of A, B, and X. The unit cell is formed by A cation groups and BX6 octahedra sharing corners. Distortion of the unit cell typically occurs due to the rotation of BX6, which alters the B-X, B-X-B angles, leading to changes in the optical, electronic, and band structure. Depending on the X atom, perovskite materials have been classified as oxide perovskite (oxygen) and halide perovskite (Cl, Br, I), each offering distinctive material properties [1]. The perovskites have been recognized for their outstanding performance in a range of applications, including supercapacitors, fuel cells, water splitting, solar cells, photocatalysts, CO2 reduction, and so on [2,3,4,5,6,7,8,9,10,11,12,13].
Although these oxide and halide perovskites offer their unique material properties in many applications, they also have limitations and numerous research efforts have been made to overcome these limitations. Oxide perovskites suffer from low photoconversion efficiency and low catalytic reactivity due to the low carrier density in the materials, which hinders efficient charge transport. In contrast, halide perovskites have low chemical stability and reliability in light, heat and moisture [14,15,16,17,18,19,20,21,22,23,24]. Efforts to address these shortcomings of perovskites have included tailoring morphology and texture properties, partial substitution of AB cations and X ions, and fabrication of heterogeneous interfaces. Nevertheless, single-phase perovskites continue to face challenges, necessitating innovative approaches. It has motivated the development of nanocomposites to meet diverse performance requirements simultaneously [25,26,27,28,29,30,31,32,33,34,35]. The materials for nanocomposite formation include perovskite materials [36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56], metal oxides (e.g., Si, Ti, Zr) [57,58,59,60,61,62,63,64,65,66], sulfide materials (e.g., CdS, PbS, ZnS) [67, 68], polymers [69, 70], and glass [71]. The nanocomposite formation assists in optimizing the crystal structure, enhancing structural stability, and providing additional pathways for charge transport in perovskites. Thus, it has been regarded as a promising approach to compensate perovskite properties. This review aims to comprehensively summarize recent advancements in perovskite nanocomposites, focusing on their synthesis methodologies and applications in electrochemical and optoelectronic fields. The synthesis methodologies of perovskite nanocomposites can be classified into two principal categories: in-situ and post-synthesis techniques. This review also examines the latest research trends, practical challenges, and emerging opportunities associated with these nanocomposites, particularly in applications such as fuel cells, electrochemical water splitting, electrochemical CO2 reduction, supercapacitors, LEDs, and solar cells. It provides insights into the potential and limitations of perovskite nanocomposites in enhancing the performance and stability.
2 Perovskite nanocomposites (materials property)
Nanocomposite structures exhibit a variety of forms, including non-core/shell bonded structures, and core/shell structures. Non-core/shell nanocomposites are typically synthesized from a single precursor solution and consist of different crystal structures and compositions. These unique compositions often enhance catalytic performance due to the formation of unique and close interfaces between different heterostructures. Hybrid nanocomposites composed of different compositions of perovskite materials or different materials are synthesized, creating intimate connections between phases by using one mother precursor solution to synthesize multiple phases with different proportions [55, 57, 72]. The synthesized nanocomposites, comprising small units, prioritize interface formation throughout manufacturing processes, yielding nanoscale products abundant in heterointerfaces. It frequently facilitates the optimization of perovskite’s electronic structure and accelerates the diffusion paths of ions and electrons by fostering interfaces between diverse crystal phases within nanocomposites. Thus, the formation of interfaces between different crystal phases of nanocomposites can induce unexpected physical and chemical properties, and strong interactions can promote the long-term stability of the synthesized nanocomposites [56, 61, 73, 74]. These structural advantages demonstrate significant improvements in tuned bandgap for catalytic activity, electron mobility for electrical conductivity, magnetic properties, energy capacity and density, surface area and structure, and long-term stability in perovskite oxide-based nanocomposites. For uniform mixing, spray pyrolysis is used to synthesize nanocomposites with high surface area and uniform structure [62,63,64]. Furthermore, hybrid nanocomposites comprising two or more perovskite types with disparate crystal structures or compositions can interact closely through shoulder-to-shoulder contact [57, 62] or surface decoration patterns (Fig. 1a) [75,76,77]. A simple method to obtain tightly interconnected nanocomposites is to mix precursors of different components and then proceed with simultaneous crystallization to form the composite. However, this typical route may lack control over size and microstructure. Small amounts of perovskite can be added to a perovskite, often in the form of surface decoration. Surface decoration of perovskite based oxides has proven to be a unique method to enhance catalytic performance due to the formation of highly efficient interfaces.

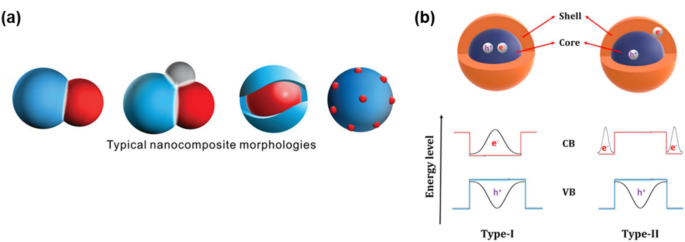

Schematics of various perovskite nanocomposites. a. From left to right, the typical structures of nanocomposites are dual nanocomposite, triple nanocomposite, core/shell nanocomposite, and socketed nanocomposite (surface decoration) [182]. b. Energy level diagram as Type I and Type II of core/shell structure [183]
Within these composite structures, core/shell structures are widely favored for their ability to combine the strengths of each constituent material (Fig. 1a). They offer the added benefit of enhancing the stability and performance of halide perovskite [78,79,80,81]. The heterostructure can exhibit either epitaxial or non-epitaxial relationships, depending on the properties of the materials and the chemical approaches used in their preparation. For epitaxial structure, the distribution of electron/hole wave functions within each component is crucial in determining the composite structure. The energy levels of the valence band (VB) and conduction band (CB) of two semiconductors determine the physicochemical properties of the core/shell nanostructure. When the shell materials have a wider energy bandgap than the core materials, and the conduction band and the valence band edges of the core materials are present in a region smaller than the energy gap of the shell, this leads to the confinement of electrons and holes in the core. This confinement results in the formation of a Type I band structure (Fig. 1b). This nanocomposite structures have been applied to the optoelectronic field of perovskite with the objective of improving its optical properties and increasing its stability [23, 24, 48, 82, 83]. The wide bandgap of the shell materials traps the carriers in the core materials, thereby passivating defects on the core surface. This reduces the impact of defects on the surface on the reaction of the core, resulting in an increase in photoluminescence quantum yield (PLQY). A Type II band structure forms when the conduction band and valence band edge of the core materials are lower or higher than the shell materials. In this case, one type of carriers (either electron or hole) is mainly confined to the core side, while the other type of carriers is stored in the shell side. The Type II band alignment is expected to have fundamentally different properties mainly due to the spatial separation of carriers [84,85,86]. In the context of optical materials, such heterostructures can effectively confine or transfer carriers generated from one side to the other. Consequently, these nanomaterials are employed in a multitude of applications, including the enhancement of light emission, the optimization of solar cell efficiency, and the augmentation of catalytic activity [48, 84, 85, 87,88,89,90,91,92,93,94].
3 Synthesis of perovskite nanocomposites
The synthesis of perovskite nanocrystal (NC)s can be broadly divided into two categories: top-down and bottom-up approaches. Top-down approaches involve reducing and breaking down macroscopic materials into nanostructures and particles, which can be achieved through mechanical mills (Fig. 2b), ball-mill (Fig. 2e), and chemical methods [95, 96]. Bottom-up methods involve building structures from ions, molecules, and clusters in liquid and vapor phases. These include sol–gel (Fig. 2f) [97,98,99,100,101,102,103,104], hydrothermal [105,106,107,108,109], high-temperature injection (Fig. 2i) [110,111,112], ligand assisted reprecipitation (LARP) (Fig. 2i) [113, 114], solid-state reactions [115,116,117,118,119,120,121,122], (flame) spray pyrolysis (Fig. 2c,d) [117, 123,124,125], chemical vapor deposition (CVD) (Fig. 2g) [126], and spin coating (Fig. 2a) [127,128,129,130]. Additionally, perovskite nanocomposites are composites of two or more materials, which allows for the distinction between two scenarios: synthesis of the two or more materials simultaneously (in-situ) or separate post-processing of each material. As previously mentioned, there are several types of perovskite nanocomposites, including core/shell and non-core/shell.
3.1 Core/shell structure
Core shell formation strategies include surface overgrowth of shell materials, multiple shell coatings, and embedding perovskite NCs in the shell matrix [131, 132]. Epitaxial growth is a representative synthesis strategy that involves the direct introduction of a shell precursor into the solution immediately after the core NC is formed. The main process is the binding of ligands to the NC surface, which facilitates the deposition of the shell material onto the core and enables its dispersion in solution without aggregation. The ligands are released to allow for the growth of new atoms, which subsequently re-bind to the surface, thereby initiating a repeating cycle that results in the formation of the core/shell material. Surface passivation, which is applied through the epitaxial overgrowth, has been widely applied in various semiconductors, including metal oxide and metal sulfide, due to its advantages of eliminating trap states, increasing stability, and enhancing photophysical properties. In addition, the formation of the core/shell structure in this manner results in lattice strain due to lattice mismatch, which is related to the diameter of the core and the thickness of the shell [133]. The Matthews-Blakeslee theory is applicable to this phenomenon, and the critical shell thickness that can be grown without causing lattice strain can be obtained. The relationship between critical thickness, lattice mismatch, and dislocation formation demonstrates that as the size of the core decreases, the energy required to compress it increases, resulting in a thicker shell.
A variety of synthesis methods, including ion exchange, hot injection, spin coating, LARP, wet chemical, sol–gel, and others, have been employed for this synthesis, either in situ or post-synthesis, depending on the specific objective and the material. Jia et al. synthesized CsPbX3-Cs4PbX6 core/shell nanocrystals by in-situ process using hot-injection method (Fig. 3b) [78]. This research presents a technical approach and optimized process conditions for synthesizing nanocrystals with high photoluminescent efficiency, enhancing their potential applications in optoelectronic devices. Green-light-emitting CsPbBr3 nanocrystals are prepared as seeds using a high-temperature hot injection method at temperatures above 170 ℃. This process involves the use of cesium oleate and zinc bromide. Afterwards, the shell coating process involves the rapid injection of additional halogen sources into the CsPbBr3 nanocrystal seeds. This is done under optimized conditions that facilitate the formation of the hexagonal Cs4PbBr6 phase. As another example of in-situ synthesis, Tang et al. synthesized CsPbBr3-CdS core/shell quantum dots (QDs) (Fig. 3c) [192]. To fabricate the CsPbBr3 core, Cs-oleate is prepared using Cs2CO3, 1-octadecene (ODE), and oleic acid (OA), which is then reacted with PbBr2 to form QDs. Then, to grow the CdS shell on the CsPbBr3 core, Cd-oleate and sulfur are used as shell precursors. These materials are added to the CsPbBr3 reaction mixture and reacted at appropriate temperatures to complete the core/shell structure. This approach enables the formation of a stable and efficient core/shell structure, enhancing the quantum dot's stability and optical properties.

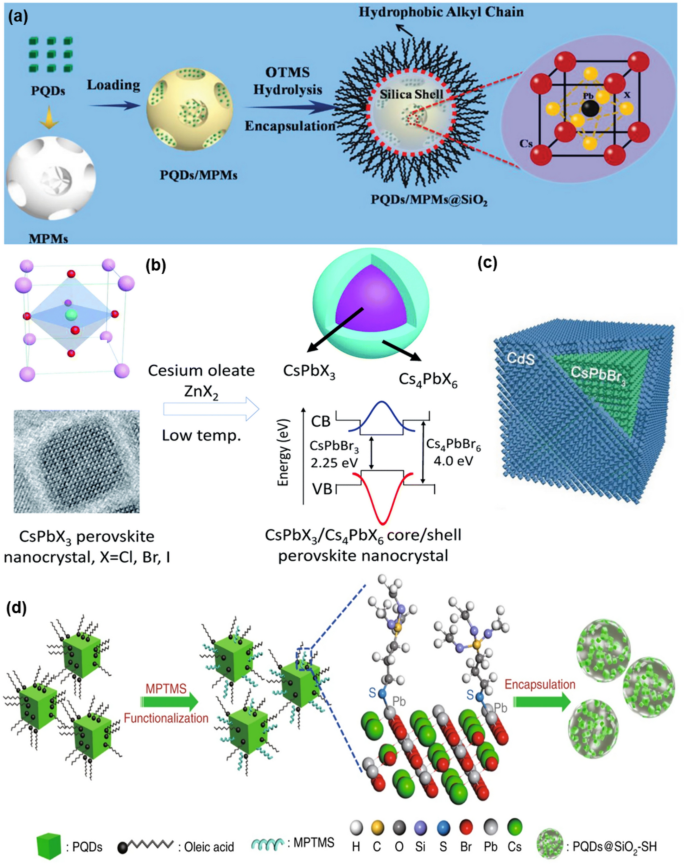

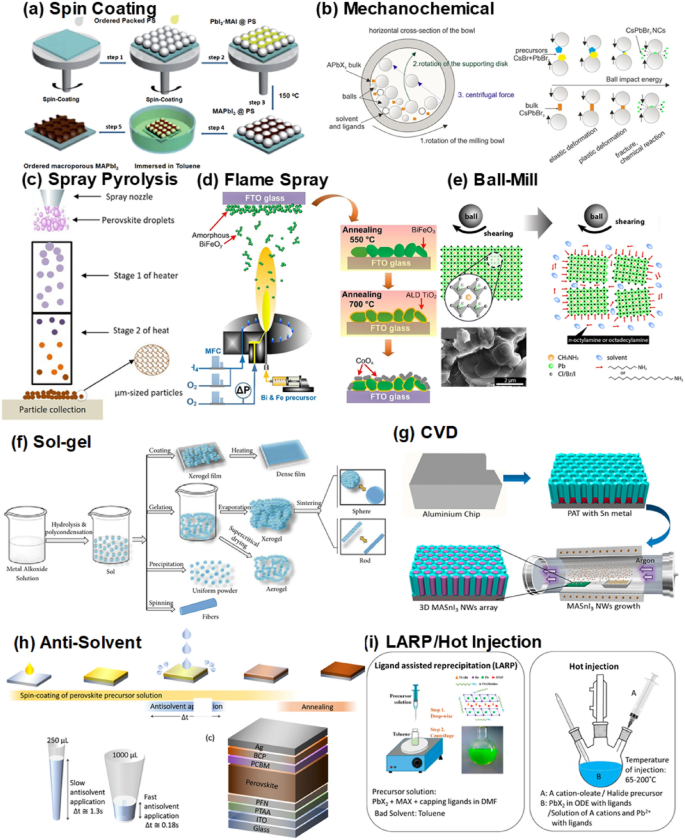

Synthesis methods for core/shell perovskite nanocomposite fabrication (In-situ, and post synthesis) a. CsPbBr3‐Quantum dots-polystyrene-silica hybrid microsphere structures with significantly improved stability for white LEDs [80]. b. Formation CsPbBr3-Cs4PbBr6 core/shell NCs [78]. c. Single halide perovskite-semiconductor core/shell quantum dots [192]. d. Illustration of Pb–S bonding-based perovskite-silica nanodots [134]
As an example of post-synthesis method, Yang et al. synthesized cesium lead bromide (CsPbBr3) perovskite quantum dots (PQDs) within mesoporous polystyrene microspheres (MPMs), subsequently coated with a silica shell by hydrolysis and encapsulation process, and the stable hybrid microspheres are used in the development of white light-emitting diodes (LEDs) (Fig. 3a) [80]. The PQDs are first embedded into the MPMs. This is followed by a hydrolysis process to form a silica coating over the MPMs, effectively encapsulating the PQDs. This encapsulation strategy protects the PQDs from direct environmental exposure, thereby improving their stability. The silica shells prevent direct contact between the PQDs and external erosive agents such as water and solvents, providing significant resistance to degradation. This encapsulation is demonstrated to maintain substantial fluorescence intensity even after 30 days of exposure to challenging conditions, surpassing the stability metrics of previously reported systems. Li et al. developed a Pb–S bonding-based method to synthesize perovskite-silica nanodots which enhances water resistance of the perovskite nanodots (Fig. 3d) [134]. Pre-synthesized CsPbBr3 nanodots were functionalized with (3-mercaptopropyl) trimethoxysilane (MPTPMS) which formed Pb–S bonding with the perovskite via hydrolysis and condensation. The perovskite nanodots are encapsulated by silica, and that kept their emission for six weeks in water.
3.2 Non-core/shell structure
First, nanoscale hybrid composites commonly employ a one-pot mother precursor. This approach leads to the simultaneous crystallization of stable thermal formulas, resulting in the formation of twin or multiple perovskite phases. By employing sol–gel or hot injection synthesis, researchers can produce two or more nanocomposites. These multiphase structures are anticipated to exhibit excellent catalytic performance due to synergistic effects resulting from the unique and intimate interfaces between different heterostructures or due to the structural segregation caused by dopants, resulting in nanocomposites with distinct structures. Yufei Song et al. reported Sr0.9Ce0.1Fe0.8Ni0.2O3-δ nanocomposites for solid oxide fuel cell (SOFC) cathodes, resulting in higher ORR activity, low conductivity, good stability, and reduced thermal expansion coefficient (Fig. 4a) [135]. The nanocomposite was synthesized by the exsolution method with fine temperature control in a bulb, and the nanocomposite consists of a single perovskite main phase, a Ruddlesden-Popper (RP) second phase, and surface-decorated NiO and CeO2 minor phases. These components are intimately mixed in the nanodomain, with the NiO and CeO2 phases mainly located on the surface of the main phases. In this nanocomposite, the RP phase enhanced the oxygen bulk diffusion and the resulting NiO and CeO2 nanoparticles promoted the oxygen surface process, facilitating the surface to the main phase and oxygen migration. Also, spray pyrolysis is used to produce particulate nanocomposites, respectively, providing control over the morphology and phase distribution of the composite. The ratio of the two substances in the particles can be precisely controlled by adjusting the ratio of the precursor, among other factors. The particle size can be controlled by varying the amount of precursor, which in turn affects the crystallinity. Also, the temperature can be used to regulate the particle size, with the amount of carrier gas according to the residence time. A feeder is designed to control the amount of precursor supplied and the size of the initially injected precursor. Javier Zamudio-García et al. prepared La0.98Cr0.75Mn0.25O3-δ-Ce0.9Gd0.1O1.95 (LCM-CGO) nanocomposite layers with different LCM contents, between 40 and 60 wt%, to utilize the benefits of the LCM such as high redox stability and the benefits of the CGO such as high ionic conductivity (Fig. 4c) [62]. They show compatibility with LaCrO3-based electrodes and high ionic conductivity thanks to limited grain growth, resulting in maintaining nanoscale microstructures even after annealing at 1000 ℃. Their synergistic effect results in efficient and durable symmetrical electrodes with high resistance and high efficiency. In addition, the shoulder-to-shoulder structure is also obtained by mixing different precursor solutions in one solution to obtain a perovskite nanocomposite simultaneously. Lujian Jia et al. developed a dual-phase membrane Ce0.9Pr0.1O2-δ-Pr0.1Sr0.9Mg0.1Ti0.9O3-δ (CPO-PSM-Ti) with good chemical stability and mixed oxygen ion–electron conductivity in a reducing atmosphere for H2 purification by sol–gel method and high-temperature sintering (Fig. 4b) [136]. The composites with mixed conductivity and good stability show limited electronic conductivity and excellent chemical stability thanks to Ce0.9Pr0.1O2-δ (CPO).
Various Non-core/shell structures: multi-phase and shoulder to shoulder a. A cobalt‐dree multi‐phase nanocomposite as near‐ideal cathode of SOFC [135]. b. Hydrogen purification through a highly stable dual‐phase oxygen‐permeable membrane [136]. c. La0.98Cr0.75Mn0.25O3-δ-Ce0.9Gd0.1O1.95 (LCM-CGO) nanocomposite layers by the Spray pyrolysis method [62]
Surface decoration can be synthesized by gas-based deposition techniques (e.g., physical vapor deposition) or liquid-based approaches (e.g., impregnation and co-precipitation). Assuming AO exhibits greater reducibility compared to BO, the variance in oxygen chemical potential between the atmosphere and the solid surface triggers an oxygen flux, prompting the formation of reduced A at or just beneath the surface. In some situations, this method can also be considered an "in-situ separation process" because the metal/oxide catalyst platform is automatically generated under the working conditions of the catalytic reaction [137,138,139].
4 Nanocomposite-based applications
4.1 Fuel cells
Fuel cells utilizing hydrogen gas as their primary source are widely recognized as a promising energy storage solution thanks to their ultra-high calorific value of hydrogen (282 kJ/mol), cost-effectiveness, and high efficiency [140, 141]. For efficient fuel cell systems, oxides-perovskite nanocomposites have attracted significant attention as outstanding materials thanks to the following reasons: (1) Structural variations in oxide perovskites (i.e., octahedral distortion, B-cation displacement, and octahedral tilting) derive various polymorphs [142, 143], (2) the majority (~ 90%) of metal elements in the periodic table can be stabilized within the perovskite framework [144], and (3) nanocomposite structures enable high thermal, electrical, and mechanical stabilities. Figure 5a shows the dark-field TEM image of a 0.5Sr0.5(Co0.7Fe0.3)0.6875W0.3125O3−δ (BSCFW) anode, which is a self-assembled composite prepared through simple solid-state synthesis, consisting of B-site cation ordered double perovskite and disordered single perovskite oxide phases [53]. BSCFWs, of themselves, assemble into composite structures, which prevents loss of external surface through agglomeration and limits formation of oxygen vacancies at operating temperatures. Thanks to their unique phase transition, low area specific resistance with chemical and mechanical stability was observed at the temperature range around 500–700 ℃, quasi-epitaxial interfaces between the phases (Fig. 5b,c).

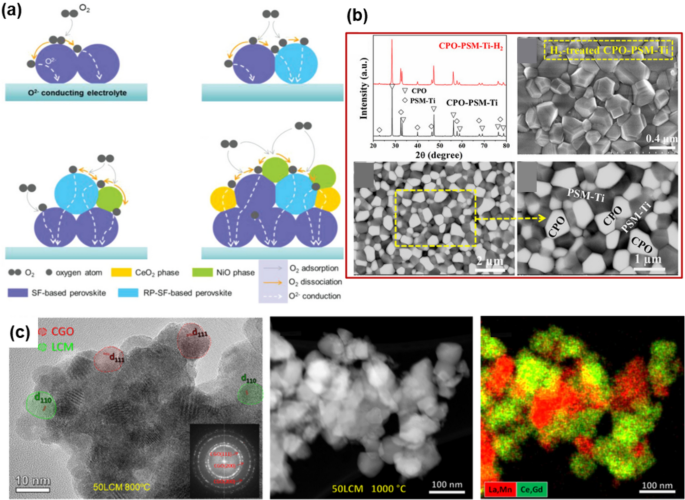

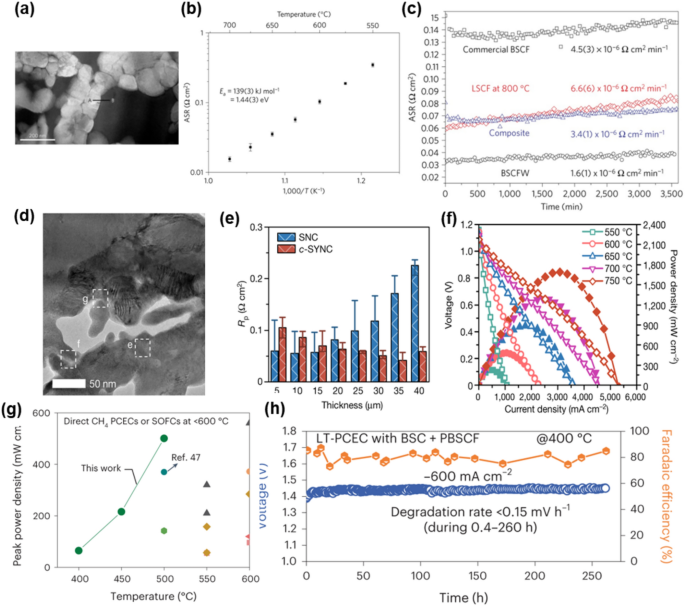

Perovskite nanocomposite applications for Fuel cell a. Dark-field image of BSCFW. Area specific resistance of BSCFW. b. the various temperature and c. various samples [53]. d. HRTEM, e. area specific resistance of the Srx(Yy(Nb0.1Co0.9)1–y)O3−δ composite, f. voltage and power density versus current density curves of an anode-supported H2/air SOFC with Srx(Yy(Nb0.1Co0.9)1–y)O3−δ composite [145]. g. Comparison of electrochemical full-cell performance on methane. h. Long-term stability test at 400 ℃ with a charging current density of 600 mA/cm2 [146]
Despite their advantages, thermo-mechanical instability presents a significant bottleneck, resulting in a substantial internal strain gradient. This issue stems from thermal expansion mismatches among various fuel cell components, leading to concerns such as cell degradation, delamination, and eventual failure. To circumvent the limitations, Y. Zhang et al. developed reactive sintering to combine a cobalt-based perovskite with high electrochemical activity and large thermal-expansion coefficient with a negative-thermal-expansion material (Fig. 5d). Thereafter, they form composite electrodes that do not have an issue regarding thermal-expansion mismatch with the electrolyte [145]. The Srx(Yy(Nb0.1Co0.9)1–y)O3−δ composite electrode demonstrates an area-specific ohmic resistance value of 0.041 Ω·cm2 for a thickness of 35 μm at 600 ℃ (Fig. 5e). The peak power density from an SOFC button cell employing the c-SYNC cathode reaches 1690 mW/cm2 at 750 °C (Fig. 5f).
However, the persistently high operating temperature (exceeding 500 ℃) remains a hurdle to enhancing both power output and stability. This challenge arises from issues like rapid corrosion of electrolytes and cell detachment. Recently, F. Liu et al. report a simple and scalable approach for fabricating ultrathin, chemically homogeneous, and robust proton-conducting electrolytes. They demonstrate an in-situ formed composite electrode, Ba0.62Sr0.38CoO3−δ–Pr1.44Ba0.11Sr0.45Co1.32Fe0.68O6−δ, which significantly reduces ohmic resistance, electrode–electrolyte contact resistance and electrode polarization resistance [146]. As shown in Fig. 5g and h, the PCECs attain high power densities in fuel-cell mode (~ 0.75 W/cm2 at 450 ℃ and ~ 0.10 W/cm2 at 275 ℃) and exceptional current densities in steam electrolysis mode (−1.28 A/cm2 at 1.4 V and 450 ℃). The current research focus underscores the promising potential of perovskite nanocomposites in fuel cells, highlighting their structural resilience and electrochemical prowess. Continued progress in materials development and design is essential to further improve fuel cell efficiency and reliability for real-world applications.
4.2 Electrochemical water splitting
Electrochemical water splitting (2H2O → 2H2 + O2) cells has been widely studied because of their advantages of solar energy applicability with low external bias, abundant water resources, simple equipment, green synthesis process, and high yield [147,148,149]. For the efficient electrochemical water splitting system, electrocatalysts in the anode and cathode are crucial to generate hydrogen gases and react peroxide ions. Perovskite structures have attracted attention because their conduction-band minimum and the valance band maximum straddle the water redox potentials, facilitating an efficient water splitting reaction [151]. Many of oxide perovskite nanocomposites have been studied by adapting conductive 2D layers to further improve their PEC water splitting performance. Y. Bu et al. reported cation-ordered perovskite (PrBa0.5Sr0.5)0.95Co1.5Fe0.5O5+δ nitrogen-doped graphene (3DNG) nanocomposites for hydrogen generation electrodes (Fig. 6a,b) [152]. The large amount of hydrogen is evolved up to 0.859 μL/s because of acceleration of charge separation in 3DNG, confirmed by density functional theory (DFT) calculation in Fig. 6b. Y. Lu et al. implemented La1-xSrxCoO3-Ti3C2Tx MXene-Ni electrodes high current density over 10 mA/cm2 with low overpotential of 279 mV (Fig. 6c,d) [153]. Recently, some researchers discovered that active polymers with 2D materials accelerate charge separation, improving water splitting performance of nanocomposites [154]. Figure 6c shows a chronoamperometric curve of the LaFeO3-g-CN formed by a facile quasi-polymeric calcination method. The current density of the nanocomposite was measured to be 4 μA/cm2 at 0 V vs RHE. This improved current density is attributed to the decrease in charge transport resistance due to the impedance matching, evaluated by Nyquist plot (Fig. 6d).

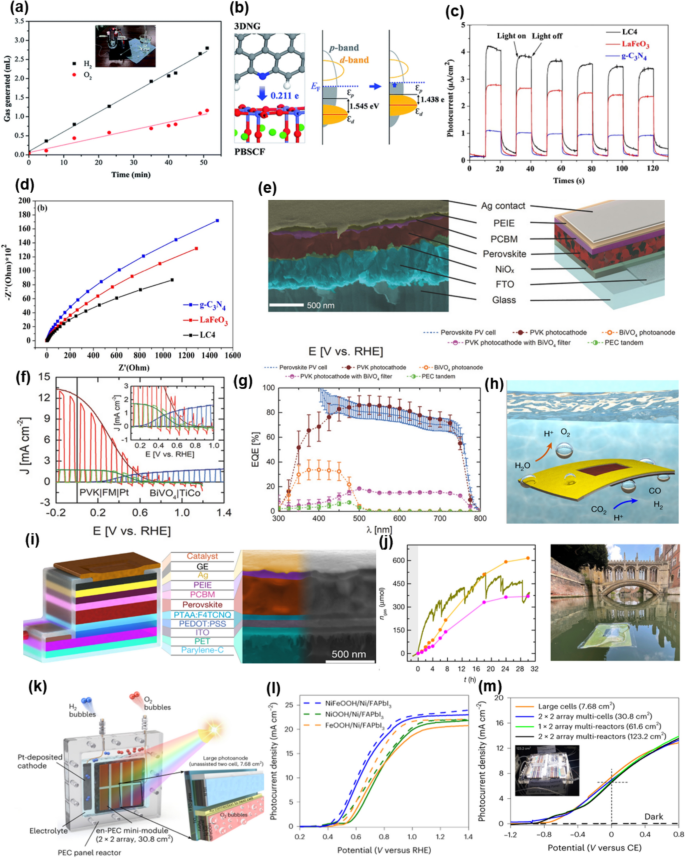

Electrochemical water splitting systems with perovskite nanocomposites. a. The charge transfer from 3DNG to PBSCF. b. and the schematic band diagrams of PBSCF and PBSCF with 3DNG [152]. C. Transient photocurrent responses and d. Nyquist plots of the as-synthesized samples under intermittent visible light irradiation [153]. e. SEM (left), schematic images (right), f. current density, and g. EQE of the PEC water splitting tandem cell [156]. h. Architecture of a wired perovskite photocathode, i. SEM image of the leaf-like PEC device, and j. Outdoor test on the River Cam (UK), in front of the Bridge of Sighs, St John’s College [157]. k. An all-PSK-based en-PEC system for large-scale, unassisted solar water splitting was constructed by connecting in parallel 2 × 2 arrays of enlarged NiFeOOH-Ni-FAPbI3 photoanodes, l. Current density of the samples in 1 M KOH electrolyte, and m. current densities of the unassisted large cell photoanodes show the effects of different active cell areas on their PEC performance [155]
Despite such advantages, they have inherent limitations to produce large amounts of hydrogen owing to their large band gap over 3 eV, low photoconversion efficiency, and low charge density. Therefore, many researchers have tried to implement high hydrogen evolution reactions using halide perovskite nanocomposites with a photovoltaic-electrochemical (PV-EC) water splitting approach. Figure 6e shows the electrochemical full cell with MAPbI3-Polyethylenimine (PEIE)-thin phenyl C61 butyric acid methyl ester (PCBM) composites with Pt catalysts [156]. Their current density was measured to be 12 mA/cm2 at 0 V vs RHE, which implies the high applied-bias photon-to-current efficiency (ABPE) (Fig. 6f). This result is attributed to high external quantum efficiency (EQE) of the MaPbI3 perovskite layers across the visible wavelength region (Fig. 6g). Moreover, the leaf-like PEC devices with unassisted and floating halide perovskite nanocomposite were designed for highly efficient HER performance (Fig. 6h,i) [157]. The halide perovskite photocathodes deposited onto indium tin oxide-coated polyethylene terephthalate achieved an activity of 4266 µmol/gh using platinum catalysts (Fig. 6j). In recent studies, band structure engineering in all-perovskite nanocomposite cells have emerged as a focus area. The aim is to produce significant quantities of hydrogen gas by optimizing band alignment for superior carrier extraction performance. Figure 6k shows the schematic illustration of the formamidinium lead triiodide (FAPbI3) perovskite-based photoanodes encapsulated by an Ni foil-NiFeOOH electrocatalyst [155]. The current density and maximum ABPE of the NiFeOOH-Ni-FAPbI3 photoanode were measured to be 22.82 mA/cm2 at 1.23 V vs RHE and 7.24% in Fig. 6l. To achieve high hydrogen evolution reaction (HER) performance, NiFeOOH-Ni-FAPbI3 photoanodes were successfully upscaled from 0.25 to 123.2 cm2 (500 times larger) with minimal decrease in solar-to-hydrogen (STH) efficiency (less than 15%). This was accomplished by enlarging the unit cell size, adopting a multi-cell approach, and employing a multi-reactor approach (Fig. 6m).
4.3 Electrochemical CO2 reduction
Oxide perovskite-based nanocomposites for CO2 reduction are paired with semiconductors capable of absorbing the visible wavelength region. This combination enhances photoconversion efficiency. For example, Guo et al. synthesized a highly-crystalline AgxNa1-xTaO3–AgCl heterojunction by a one-step flux method, where CB and VB of AgxNa1-xTaO3 were positioned between those of AgCl [158]. From EIS Nyquist plots and photocurrent density of NaTaO3, AgxNa1-xTaO3, and AgxNa1-xTaO3–AgCl photocatalysts (Fig. 7a,b), the crystalline AgxNa1-xTaO3–AgCl heterojunction improved migration and separation of photogenerated charges. With the efficient band alignment approach, surface adsorbates also play a critical role in photo-assisted CO2 activation. T. H. Tan et al. developed NiOx-La2O3-TiO2 nanocomposites, where the La2O3-TiO2 facilities adsorption of CO2, which contributes to sustained HCO2* formation and conversion [159]. Notably, the performance delivered by NiOx-La2O3-TiO2 at 250 ℃ under illumination (21.9 /gcat, 43.8% conversion) was comparable to the catalyst activity at 300 ℃ without illumination (21.7 /gcat, 43.7% conversion), representing an effective 50 ℃ decrease in the temperature requirement (Fig. 7c and 7d).

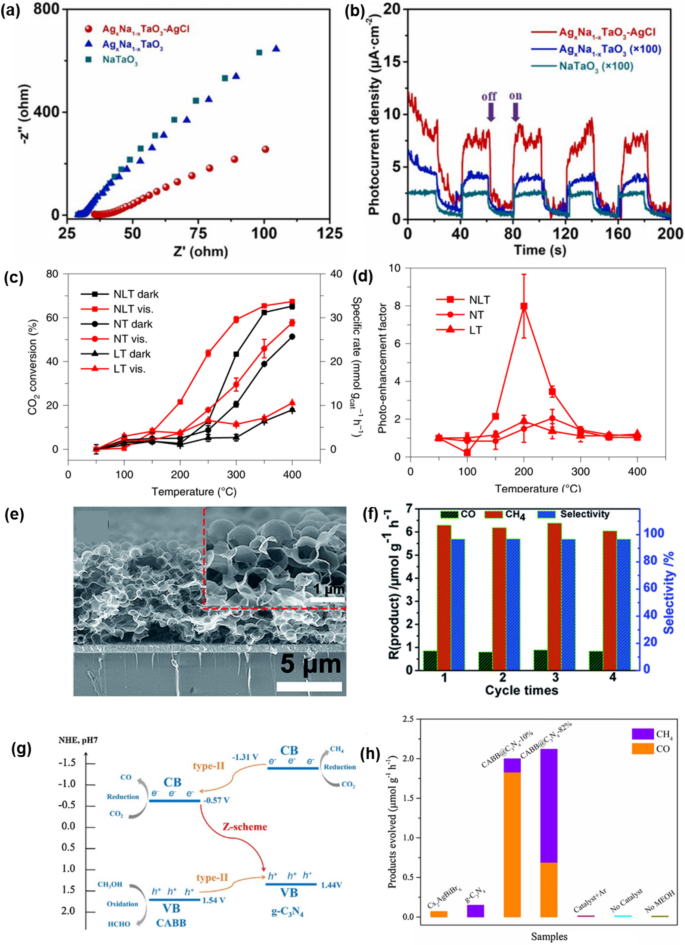

Electrochemical CO2 reduction system with perovskite nanocomposites. a. EIS Nyquist plots and b. photocurrent density of AgxNa1 − xTaO3-AgCl, AgxNa1 − xTaO3 and NaTaO3 [158]. c. CO2 conversion and d. photo-enhancement factor under visible light over the temperature range of 50–400 ℃ by NiOx-La2O3-TiO2 (NLT), NiOx-TiO2 (NT) and La2O3-TiO2 (LT) catalysts [159]. e. Cross-sectional SEM image of MRGO (3D macro porous RGO structure). f. Recycling tests of CsPbBr3 NC-BZNW-MRGO for 4 times [162]. g. Energy level diagrams and charge transfer routes in CABB-C3N4-10% Type II (orange arrows) and CABB-C3N4-82% Z-scheme heterojunction (red arrow) h. Photocatalytic CO2 reduction performance of g-C3N4, Cs2AgBiBr6, Cs2AgBiBr6-C3N4-10% and Cs2AgBiBr6-C3N4-82% [163]
Halide perovskite nanocomposites have also gained prominence as excellent CO2 reduction materials due to their CB levels being more negative than the reduction potential of CO2, high molar extinction coefficient, and low exciton binding energy [160, 161]. Figure 7e shows the CsPbBr3-branched ZnO nanowire (BZNW)/microporous r-GO nanocomposite, where the nanocomposites have Type II band alignment for high carrier extraction efficiency [162]. Owing to the efficient band structure and low charge transfer resistance, a boosted CO2 reduction performance was achieved with a photoelectron consumption rate of 52.02 µmol/gcath under visible light irradiation with desirable CH4 productivity of up to 96.7% (Fig. 7f). More recently, new Type II heterojunction with a Z-scheme charge-transfer model was proposed [163]. In a Z-scheme heterojunction, photogenerated electrons with a lower CB position would recombine with holes with a higher VB position, leaving electrons and holes at the CB and VB, respectively. Figure 7g shows the schematic illustration of the band structure of Z-scheme heterostructures of Cs2AgBiBr6-g-C3N4 Z composites. The nanocomposites exhibit improved CO2 reduction performance, giving the production rate of above 2.0 μmol/gh without high chain hydrocarbons products or hydrogens (Fig. 7h).
4.4 Supercapacitor

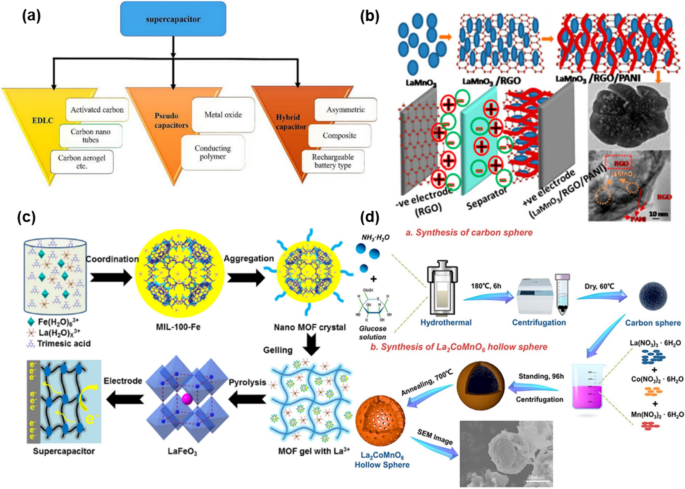

The supercapacitor (SC) plays a crucial role in energy conversion and storage systems due to its exceptional attributes: high-power density, ultrafast charge–discharge rates, and extended cycle life. It serves as a vital link between traditional capacitors and rechargeable batteries. Perovskite nanocomposites exhibit great promise owing to their adjustable electrical and ionic conductivity and substantial charge storage capacity (Fig. 8a). Moreover, easy modulation of oxygen vacancies in perovskite materials provides high energy storage capacity and electrical stability. For example, Co-based perovskites, known for their advantages such as ion transportation of oxygen, high conductivity, outstanding electrocatalytic activity, are used for enhancing energy density by partial substitution of cation B sites in ABX3 perovskite structures [164]. Therefore, increasing oxidation states of cation B sites or concentration of oxygen vacancies can be achieved through partial substitution of Fe atoms in Co-based perovskite, thereby achieving both high energy density and stability. As a result, optimal composition, SrFexCo1-xO3-y (SCF-x), derived from SrCoO3-SrFeO3, shows a noteworthy energy density of 194.85 Wh/kg and corresponding power density of 1798.61 W/kg. Also, involving graphene oxide (GO) materials into perovskites proposes another way to improve the performance of SC, thanks to low interface impedances [165,166,167]. For instance, the incorporation of reduced GO (RGO) and conductive polyaniline with LaMnO3 significantly enhanced the energy density (25 Wh/kg) at the power density of 18 kW/kg and stability [168]. Moreover, a composite of RGO and LaAlO3 exhibited a specific capacitance of 111 F/g at a current density of 2.5 A/g, outperforming the 100 F/g observed for LaAlO3 alone (Fig. 8b).
Furthermore, the formation of nanocomposites has been explored to achieve high surface area. For instance, mesoporous LaFeO3 combined with an metal-organic framework (MOF) has demonstrated outstanding performance (Fig. 8c) [169]. The uniform and high porosity of the mesoporous structure reduce ion diffusion resistance, facilitating rapid charge transfer. Additionally, the large surface area of the mesoporous structure contributes to minimizing electrode polarization. Consequently, supercapacitors (SCs) incorporating mesoporous LaFeO3 exhibit an energy density of 34 Wh/kg at a power density of 900 W/kg, with 92.2% retention after 5000 cycles. Another strategy to enhance the surface-to-volume ratio involves utilizing template impregnation. This method shapes perovskites into useful forms to increase surface area. For instance, hollow sphere La2CoMnO6 (HS-LCMO) fabricated by this method has shown promise for SCs (Fig. 8d). This hollow spherical structure significantly boosts a surface-to-volume ratio, thereby reducing transport length of both mass and charge transport. Therefore, the expanded surface area provides additional reactive sites, leading to increase in specific capacity. Also, abundant mesopores promote transmission of electrons while the hollow structure improves rapid charge–discharge process. Based on these benefits, HS-LCMO shows a noticeable energy density of 65.8 Wh/kg at a power density of 1000 W/kg [170].
4.5 Optoelectronics
Halide perovskite lattices typically exhibit high distortion, weak interatomic bonding, and high density of local defects. These intrinsic qualities attest to the volatile layer susceptible to thermal and illumination-induced degradation and decomposition as well as ion migration. Thus, involving nanocomposites to mitigate the breakdown of the active layer strengthens the lattices, leading improvement in its morphology, crystallinity, and chemical stability [171,172,173]. Also, Table 1 demonstrates the improvement in the functionality of optoelectronic devices resulting from the application of perovskite nanocomposite. For example, Niu et al. performed in-situ polymerization of acrylamide (AAm) monomers within the perovskite layer (CS0.05 (FA0.90MA0.10)0.95Pb(I0.90Br0.10)3) of an inverted PSC (Fig. 9a) [175]. The resulting lead-chelating polymer network not only passivates the defects of perovskite, thereby achieving a PCE of 22.1%, but also prevents the dissolution of lead ions in water, holding up to 94% rejection rate upon directly immersing the unencapsulated devices into water. Huang et al. achieved half-year stable PSC by employing a montmorillonite (MMT)-CH3NH3PbI3 nanocomposite. The 1 nm-thick MMT formed a protective shell outside of the perovskite crystals, slowing the aging effect of light, heat and humidity without sacrificing the PCE (Fig. 9c) [174]. On the other hand, while lead-containing perovskite still proves the most promising for optoelectronics applications due to its relatively higher stability compared to other group IV elements, the adverse health and environmental impacts of lead leakage remain significant concerns. This has spurred research into Pb-encapsulation methods to mitigate these effects. Lead leakage is predominantly triggered by exposure to moisture, a vector for degradation that not only affects the layer interfaces but is also directly proportional to the perovskite grain size [176]. Encapsulation strategies that target the grain boundaries have demonstrated effectiveness in extending the operational longevity of PSCs. To list a few, Xiao et al. developed NPB-Cs0.05FA0.9MA0.05PbI2.85Br0.15 nanocomposites by introducing the cross-linkable p-type semiconducting molecules NPB into the anti-solvent (Fig. 9d) [177]. A compact and conductive layer is thus formed at perovskite grain boundaries, facilitating both hole extraction and device stability (Fig. 9b) [178]. Liu et al., enhanced the stability and efficiency of FA-based lead iodide perovskite solar cells to nearly 20% efficiency with 97% retention after 1000 h in ambient conditions by integrating a tetraethyl orthosilicate (TEOS) hydrolysis process. This process encapsulates perovskite grains with in-situ formed amorphous silica layers (SiO2-FA0.85Cs0.15PbI3).

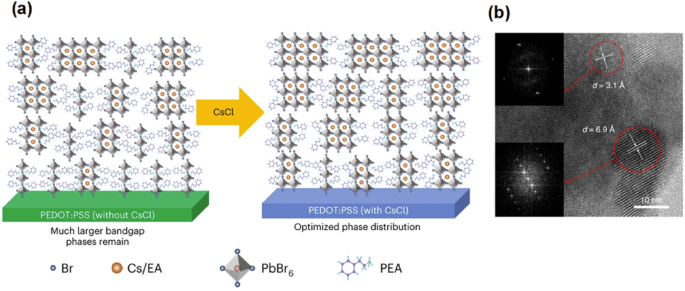

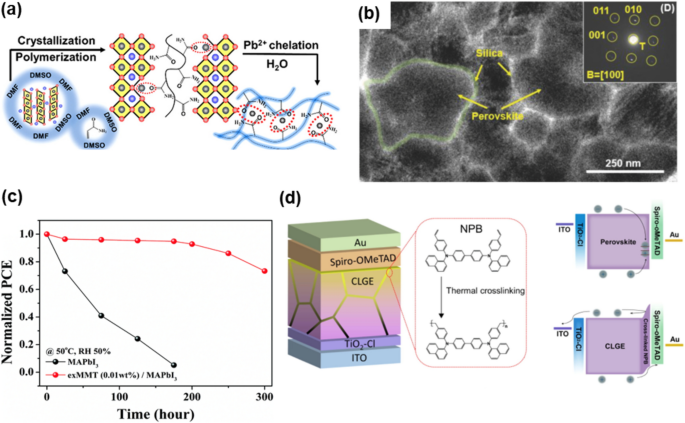

PSCs with perovskite nanocomposites. a. Lead-leakage blocking strategy and fabrication process with schematic illustration of additive-to-polymer transformation in solution, solid, and water [175]. b. Bring-field TEM image showing FAPI-T film consists of silica-encapsulated perovskite grains [178]. c. Damp-heat tests of PSCs. Normalized PCEs of the PSCs with pristine MAPbI3 and exMMT (0.01 wt%)-MAPbI3 as a function of storage time (50 ℃, RH 50%) [174]. d. Schematic device configuration with CLGE for perovskite solar cell. Cross-linking of NPB molecules occurs via the polymerization between styrene groups following a thermal treatment [177]
The incorporation of a mixed-phase perovskite layer has introduced a novel nanocomposite into perovskite-based light emitting diode (PLED) devices. Quasi-2D perovskites, or low dimension perovskites, introduce self-assembled quantum wells with its larger electron binding energy. The mixed-phase characteristics (as the formation energies for phases with different low dimensions, n, are close) of quasi-2D perovskites allow photocarriers to transfer rapidly and efficiently from higher to lower bandgap regions, facilitating to an accumulation of carriers in the recombination centers and significantly advancing photo luminance [179]. Thus, precise adjustment of the phase distribution within the quasi-2D perovskite composite has been identified as crucial for improving device performance. Chu et al.’s reported the growth of perovskite films atop substrates containing caesium-chloride, which avoids the predominance of 2D layers with large bandgaps (n = 1) and ameliorating associated inefficiencies (Fig. 10a) [180]. In addition, mixed-dimensional, or 2D/3D perovskite heterostructures has aimed to harness the stability of 2D phases and charge transport capability of 3D phases (Fig. 10b). Zhao et al. integrate a composite of quasi-2D and 3D perovskites with a poly-HEMA capping layer [181]. Photogenerated excitations rapidly migrate within the quasi-2D phase, and undergoes radiative recombination in the 3D regions, while the polymer layer is critical in preventing luminescence quenching, contributing to an EQE of 20.1%. An extensive review on quasi-2D PeLED has been conducted by Zhang et al., where photoelectronic properties and specific device engineering strategies are covered [179].
5 Outlooks
In this review, we have summarized recent advances of perovskite nanocomposites on formation processes as their structures, as well as their recent progress in electrochemical and optoelectronic applications. Despite the potential of pure perovskite materials, they have been plagued by instability and low efficiency. In this regard, nanocomposite structures offer a promising solution to overcome the intrinsic shortcomings of perovskites, including stability issues, energy storage performance, power conversion efficiency (PCE), and high recombination rates. Their impressive development signifies their potential as a promising candidate for various applications. In light of these advancements, it seems prudent to identify some of the areas that remain under-researched.
First, despite the numerous research attempts that have been made, the most significant issue is stability. A multitude of environmental factors, including humidity, oxygen, temperature, and UV light, can affect the stability of perovskite composites. Furthermore, it is currently unclear whether the nanocomposite structure is capable of completely preventing oxygen and moisture from accessing the NCs over an extended period of time. Ultimately, the goal is to optimize stability factors, such as structures, composition, and morphology of perovskite nanocomposites. This will result in the production of core/shell nanostructures that are completely covered by a robust inorganic shell material, such as metal chalcogenides, oxides, or fluorides.
Second, we need to further improve size variation and uniformity of nanocomposite formation. For example, sol–gel and solid-phase synthesis are commonly used for in-situ synthesis, but result in crystal sizes often on the order of hundreds of nanometers and non-uniform distribution. In addition, due to the different arrangement of atoms on each surface of perovskites, shells grow preferentially on a certain surface, resulting in uneven shell thickness and increased lattice strain. This can affect the properties of the core/shell structures, so novel approaches such as spray pyrolysis and surface decoration have been tried to achieve uniform distribution and fine size control. We need further development in advanced synthesis, leading to precise size control with minimal variation.
Third, there is still room to further improve the performance of perovskite nanocomposites. For instance, oxide perovskite nanocomposites often exhibit low conductivity and low carrier densities at interfaces, leading to poor electrochemical reactions. The small number of carriers formed and the low carrier extraction efficiency due to the wide band gap further contribute to suboptimal electrochemical performance. Therefore, research on materials and structures that induce higher carrier densities and ensure high crystallinity at the surface of oxide perovskite nanocomposites is essential. Additionally, optimizing the band alignment of perovskite nanocomposites is expected to enhance performance further. Future research should focus on developing novel structures that can be integrated with conventional halide perovskites to address their intrinsic instability, while simultaneously achieving efficient charge separation, increased catalytic active sites, and other favorable outcomes. The synthesis of nanocomposites involves the formation of new lattice structures and inter-material synergies. Thus, it is possible to control different nanocomposite structures and predict or explain their performance using Density Functional Theory (DFT) and machine learning.
The versatility of perovskite nanocomposites may extend to their effective integration with various 2D materials and nanostructures, such as the transition metal (TM) dichalcogenides, TM carbides, MXenes and TM nitrides. This integration holds the promise of unveiling novel functionalities and exploring physical phenomena that were unveiled. Targeted nanocomposites can be fabricated by combining multiple active components for specific applications. In addition to synergistic effects, the infinite number of interfaces and flexible configurations with strong interactions will be a key factor in improving catalytic performance. Thus, the intrinsic advantages of the perovskite nanocomposites, including the convenience of combining various materials, low process cost, and compatibility with various materials, will bring a new world in the electrochemical and optoelectronic era with new physics and new applications.
Availability of data and materials
The review is based on the published data and sources of data upon which conclusions have been drawn can be found in the reference list.
References
H.R. Wenk, A. Bulakh, Minerals: their constitution and origin (Cambridge University Press, 2016)
Varma, P. R. Perovskite photovoltaics, basic concepts and implementation, low-dimensional perovskite. (2018)
A.E. Fischer, K.A. Pettigrew, D.R. Rolison, R.M. Stroud, J.W. Long, Incorporation of homogeneous, nanoscale MnO2 within ultraporous carbon structures via self-limiting electroless deposition: implications for electrochemical capacitors. Nano Lett 7(2), 281–286 (2007)
E. Duraisamy, S. Archana, A. Prasath, P. Elumalai, High capacity and high stability lithium-ion battery using nano Sn/SnS-decorated carbon leaf anode and LiCoO2 cathode for consumer electronics. Electrochim. Acta 338, 135863 (2020)
N.J. Jeon, J.H. Noh, Y.C. Kim, W.S. Yang, S. Ryu, S.I. Seok, Solvent engineering for high-performance inorganic–organic hybrid perovskite solar cells. Nat. Mater. 13(9), 897–903 (2014)
M.S. Javed, R. Raza, Z. Ahsan, M.S. Rafique, S. Shahzadi, S.F. Shaukat, B. Zhu, Electrochemical studies of perovskite cathode material for direct natural gas fuel cell. Int. J. Hydrog. Energ. 41(4), 3072–3078 (2016)
J. Li, L. Xu, T. Wang, J. Song, J. Chen, J. Xue, 50-Fold EQE improvement up to 627% of solution-processed all-inorganic perovskite CsPbBr 3 QLEDs via surface ligand density control. Adv. Mat. 29(5), 1603885 (2017)
C. Zhang, L. Turyanska, H. Cao, L. Zhao, M.W. Fay, R. Temperton, A. Patanè, Hybrid light emitting diodes based on stable, high brightness all-inorganic CsPbI 3 perovskite nanocrystals and InGaN. Nanoscale 11(28), 13450–13457 (2019)
H. Wang, X. Gong, D. Zhao, Y.B. Zhao, S. Wang, J. Zhang, X. Yang, A multi-functional molecular modifier enabling efficient large-area perovskite light-emitting diodes. Joule. 4(9), 1977–1987 (2020)
S. Yakunin, L. Protesescu, F. Krieg, M.I. Bodnarchuk, G. Nedelcu, M. Humer, M.V. Kovalenko, Low-threshold amplified spontaneous emission and lasing from colloidal nanocrystals of caesium lead halide perovskites. Nat. Commun 6(1), 8056 (2015)
Y. Dou, F. Cao, T. Dudka, Y. Li, S. Wang, C. Zhang, A.L. Rogach, Lattice distortion in mixed-anion lead halide perovskite nanorods leads to their high fluorescence anisotropy. ACS. Mat. Lett. 2(7), 814–820 (2020)
P. Ramasamy, D.H. Lim, B. Kim, S.H. Lee, M.S. Lee, J.S. Lee, All-inorganic cesium lead halide perovskite nanocrystals for photodetector applications. Chem. Commun. 52(10), 2067–2070 (2016)
J.H. Im, C.R. Lee, J.W. Lee, S.W. Park, N.G. Park, 65% efficient perovskite quantum-dot-sensitized solar cell. Nanoscale. 3(10), 4088–4093 (2011)
S.S. Khamgaonkar, A. Leudjo Taka, V. Maheshwari, Engineering and design of halide perovskite photoelectrochemical cells for solar‐driven water splitting. Adv. Funct. Mater (2024). Article Id: 2405414
C. Liu, Q. Zeng, H. Wei, Y. Yu, Y. Zhao, T. Feng, B. Yang, Metal halide perovskite nanocrystal solar cells: progress and challenges. Small Methods 4(10), 2000419 (2020)
A. Toshniwal, V. Kheraj, Development of organic-inorganic tin halide perovskites: a review. Sol. Energy 149, 54–59 (2017)
B. Mahler, B. Nadal, C. Bouet, G. Patriarche, B. Dubertret, Core/shell colloidal semiconductor nanoplatelets. J. Am. Chem. Soc. 134(45), 18591–18598 (2012)
R. Xie, M. Rutherford, X. Peng, Formation of high-quality I− III− VI semiconductor nanocrystals by tuning relative reactivity of cationic precursors. J. Am. Chem. Soc. 131(15), 5691–5697 (2009)
D. Chen, A. Wang, H. Li, L.A. Galán, C. Su, Z. Yin, G. Jia, Colloidal quasi-one-dimensional dual semiconductor core/shell nanorod couple heterostructures with blue fluorescence. Nanoscale. 11(21), 10190–10197 (2019)
O. Chen, J. Zhao, V.P. Chauhan, J. Cui, C. Wong, D.K. Harris, M.G. Bawendi, Compact high-quality CdSe–CdS core–shell nanocrystals with narrow emission linewidths and suppressed blinking. Nature. Mater 12(5), 445–451 (2013)
H. Yang, W. Luan, Z. Wan, S.T. Tu, W.K. Yuan, Z.M. Wang, Continuous synthesis of full-color emitting core/shell quantum dots via microreaction. Cryst. Growth Des. 9(11), 4807–4813 (2009)
Z. Wan, W. Luan, S.T. Tu, Size controlled synthesis of blue emitting core/shell nanocrystals via microreaction. J. Phys. Chem. C 115(5), 1569–1575 (2011)
P. Reiss, M. Protiere, L. Li, Core/shell. Semicond. Nanocrystals. Small 5(2), 154–168 (2009)
R. Ghosh Chaudhuri, S. Paria, Core/shell nanoparticles: classes, properties, synthesis mechanisms, characterization, and applications. Chem. Rev. 112(4), 2373–2433 (2012)
W. Liang, Y. Zhang, T. Hu, H. Jiang, Enhanced H2 production by using La5. 5WO11. 25-δ-La0. 8Sr0. 2FeO3-δ mixed oxygen ion-proton-electron triple-conducting membrane. Int. J. Hydro. Energy. 46(66), 33143–33151 (2021)
W.A. Rosensteel, S. Ricote, N.P. Sullivan, Hydrogen permeation through dense BaCe0. 8Y0. 2O3− δ–Ce0. 8Y0 2O2− δ composite-ceramic hydrogen separation membranes. Int. J.Hydro.Energy 41(4), 2598–2606 (2016)
B. Hu, Y. Wang, C. Xia, Oxygen incorporation at the three-phase boundary of LSCF–SDC composite. J. Power. Sources 269, 180–188 (2014)
Y. Zhang, F. Yu, X. Wang, Q. Zhou, J. Liu, M. Liu, Direct operation of Ag-based anode solid oxide fuel cells on propane. J. Power. Sources 366, 56–64 (2017)
Y. Yi, A.D. Rao, J. Brouwer, G.S. Samuelsen, Fuel flexibility study of an integrated 25 kW SOFC reformer system. J. Powe.r Sources 144(1), 67–76 (2005)
K. Gupta, V., Nayak, A., Agarwal, S., & Singhal, B., Recent advances on potentiometric membrane sensors for pharmaceutical analysis. Comb. Chem. High. Throughput. Screen. 14(4), 284–302 (2011)
B.C. Steele, A. Heinzel, Materials for fuel-cell technologies. Nature 414(6861), 345–352 (2001)
J.M. Vohs, R.J. Gorte, High-performance SOFC cathodes prepared by infiltration. Adv. Mater. 21(9), 943–956 (2009)
M.D. Gross, J.M. Vohs, R.J. Gorte, Recent progress in SOFC anodes for direct utilization of hydrocarbons. J. Mater. Chem. 17(30), 3071–3077 (2007)
H. Li, Y. Song, M. Xu, W. Wang, R. Ran, W. Zhou, Z. Shao, Exsolved alloy nanoparticles decorated Ruddlesden-Popper perovskite as sulfur-tolerant anodes for solid oxide fuel cells. Energy. Fuels. 34(9), 11449–11457 (2020)
Y.D. Kim, J.Y. Yang, M. Saqib, K. Park, J.S. Shin, M. Jo, J.Y. Park, Cobalt-free perovskite Ba1-xNdxFeO3-δ air electrode materials for reversible solid oxide cells. Ceram Int 47(6), 7985–7993 (2021)
G. Zhang, P. Song, Z. Shen, B. Qiao, D. Song, J. Cao, S. Zhao, CsPbBr 3@ CsPbBr3–x Cl x perovskite core-shell heterojunction nanowires via a postsynthetic method with HCl gas. ACS. omega. 5(20), 11578–11584 (2020)
S. Wang, C. Bi, J. Yuan, L. Zhang, J. Tian, Original core–shell structure of cubic CsPbBr 3@ amorphous CsPbBr x perovskite quantum dots with a high blue photoluminescence quantum yield of over 80%. ACS. Energy. Lett. 3(1), 245–251 (2017)
S. Bhaumik, S.A. Veldhuis, Y.F. Ng, M. Li, S.K. Muduli, T.C. Sum, N. Mathews, Highly stable, luminescent core–shell type methylammonium–octylammonium lead bromide layered perovskite nanoparticles. Chem. Commun. 52(44), 7118–7121 (2016)
C.M. Vijila, K.R. Kumar, M.K. Jayaraj, Stokes shift engineered, stable core-shell perovskite nanoparticle–Poly (methyl methacrylate) composites with high photoluminescence quantum yield. Opt. Mater. 94, 241–248 (2019)
X. Tang, J. Yang, S. Li, Z. Liu, Z. Hu, J. Hao, Q. Xiong, Single halide perovskite/semiconductor core/shell quantum dots with ultrastability and nonblinking properties. Adv. Sci. 6(18), 1900412 (2019)
X. Liu, X. Zhang, L. Li, J. Xu, S. Yu, X. Gong, H. Yin, Stable luminescence of CsPbBr 3/n CdS Core/Shell perovskite quantum dots with Al Self-passivation layer modification. ACS. Appl. Mat. Interfac. 11(43), 40923–40931 (2019)
X. Tang, W. Chen, Z. Liu, J. Du, Z. Yao, Y. Huang, Y. Leng, Ultrathin, core–shell structured SiO2 coated Mn2+-doped perovskite quantum dots for bright white light-emitting diodes. Small. 15(19), 1900484 (2019)
C. Sun, Y. Zhang, C. Ruan, C. Yin, X. Wang, Y. Wang, W.W. Yu, Efficient and stable white LEDs with silica-coated inorganic perovskite quantum dots. Adv. Mater. 28(45), 10088–10094 (2016)
T. Song, X. Feng, H. Ju, T. Fang, F. Zhu, W. Liu, W. Huang, Enhancing acid, base and UV light resistance of halide perovskite CH3NH3PbBr 3 quantum dots by encapsulation with ZrO2 sol. J. Alloy. Compd. 816, 152558 (2020)
S.M. Lee, H. Jung, W.I. Park, Y. Lee, E. Koo, J. Bang, Preparation of Water-Soluble CsPbBr 3 perovskite quantum dot nanocomposites via encapsulation into amphiphilic copolymers. ChemistrySelect 3(40), 11320–11325 (2018)
A. Pramanik, K. Gates, S. Patibandla, D. Davis, S. Begum, R. Iftekhar, P.C. Ray, Water-soluble and bright luminescent cesium–lead–bromide perovskite quantum dot–polymer composites for tumor-derived exosome imaging. ACS. Appl. Bio. Mat. 2(12), 5872–5879 (2019)
Y. Ye, W. Zhang, Z. Zhao, J. Wang, C. Liu, Z. Deng, J. Han, Highly luminescent cesium lead halide perovskite nanocrystals stabilized in glasses for light-emitting applications. Adv. Optic. Mat. 7(9), 1801663 (2019)
J. Xu, W. Huang, P. Li, D.R. Onken, C. Dun, Y. Guo, D.L. Carroll, Imbedded nanocrystals of CsPbBr 3 in Cs4PbBr6: kinetics, enhanced oscillator strength, and application in light-emitting diodes. Adv. Mat. 29(43), 1703703 (2017)
X. Xu, Y. Pan, L. Ge, Y. Chen, X. Mao, D. Guan, Z. Shao, High-performance perovskite composite electrocatalysts enabled by controllable interface engineering. Small. 17(29), 2101573 (2021)
K. Li, Y. Wang, J. Lin, Z. Li, Phase relations of BaCoO3− δ–BaInO2 5 and size variation effect of B-site cations on the phase transitions. Solid. State. Ionics. 183(1), 7–15 (2011)
C. Zhang, H. Zhao, A novel cobalt-free cathode material for proton-conducting solid oxide fuel cells. J. Mater. Chem. 22(35), 18387–18394 (2012)
A. Demont, R. Sayers, M.A. Tsiamtsouri, S. Romani, P.A. Chater, H. Niu, M.J. Rosseinsky, Single sublattice endotaxial phase separation driven by charge frustration in a complex oxide. J. Am Chem. Soc. 135(27), 10114–10123 (2013)
J.F. Shin, W. Xu, M. Zanella, K. Dawson, S.N. Savvin, J.B. Claridge, M.J. Rosseinsky, Self-assembled dynamic perovskite composite cathodes for intermediate temperature solid oxide fuel cells. Nat. Energy 2(3), 1–7 (2017)
Y. Song, Y. Chen, W. Wang, C. Zhou, Y. Zhong, G. Yang, Z. Shao, Self-assembled triple-conducting nanocomposite as a superior protonic ceramic fuel cell cathode. Joule. 3(11), 2842–2853 (2019)
Z. Zhao, J. Cui, M. Zou, S. Mu, H. Huang, Y. Meng, J.J. Tong, Novel twin-perovskite nanocomposite of Ba–Ce–Fe–Co–O as a promising triple conducting cathode material for protonic ceramic fuel cells. J. Power. Sources 450, 227609 (2020)
H. Qi, T. Zhang, M. Cheng, D. Liu, B. Tu, Rational design of the self-assembled BaCo1-xZrxO3-δ (x= 0.8–0.2) nanocomposites as the promising low/intermediate-temperature solid oxide fuel cell cathodes. J. Eur. Ceramic. Soc. 42(3), 1042–1052 (2022)
Y. Song, Y. Chen, M. Xu, W. Wang, Y. Zhang, G. Yang, Z. Shao, A cobalt-free multi-phase nanocomposite as near-ideal cathode of intermediate-temperature solid oxide fuel cells developed by smart self-assembly. Adv. Mat. 32(8), 1906979 (2020)
Y. Song, J. Liu, Y. Wang, D. Guan, A. Seong, M. Liang, F. Ciucci, Nanocomposites: a new opportunity for developing highly active and durable bifunctional air electrodes for reversible protonic ceramic cells. Adv. Energy. Mat 11(36), 2101899 (2021)
Y. Yang, R. Li, Y. Wu, Y. Chu, D. Tian, X. Lu, Y. Ling, Highly active self-assembled hybrid catalyst with multiphase heterointerfaces to accelerate cathodic oxygen reduction of intermediate-temperature solid oxide fuel cells. Ceram. Int 46(7), 9661–9668 (2020)
H. Shi, C. Su, X. Xu, Y. Pan, G. Yang, R. Ran, Z. Shao, Building Ruddlesden-Popper and single perovskite nanocomposites: a new strategy to develop high-performance cathode for protonic ceramic fuel cells. Small 17(35), 2101872 (2021)
H. Qi, Z. Zhao, X. Wang, B. Tu, M. Cheng, Self-assembled cubic-hexagonal perovskite nanocomposite as intermediate-temperature solid oxide fuel cell cathode. Ceram. Int. 46(14), 22282–22289 (2020)
J. Zamudio-García, J.M. Porras-Vázquez, E.R. Losilla, D. Marrero-López, LaCrO3–CeO2-based nanocomposite electrodes for efficient symmetrical solid oxide fuel cells. ACS Appl. Energy. Mat. 5(4), 4536–4546 (2022)
H. Shimada, T. Yamaguchi, H. Sumi, K. Nomura, Y. Yamaguchi, Y. Fujishiro, Extremely fine structured cathode for solid oxide fuel cells using Sr-doped LaMnO3 and Y2O3-stabilized ZrO2 nano-composite powder synthesized by spray pyrolysis. J. Power. Sources 341, 280–284 (2017)
H. Shimada, T. Yamaguchi, T. Suzuki, H. Sumi, Y. Fujishiro, Effect of starting solution concentration in spray pyrolysis on powder properties and electrochemical electrode performance. Adv. Powder Technol. 27(4), 1438–1445 (2016)
H. Shimada, T. Yamaguchi, H. Kishimoto, H. Sumi, Y. Yamaguchi, K. Nomura, Y. Fujishiro, Nanocomposite electrodes for high current density over 3 A cm− 2 in solid oxide electrolysis cells. Nat. Commun. 10(1), 5432 (2019)
Z. Khani, M. Taillades-Jacquin, G. Taillades, D.J. Jones, M. Marrony, J. Rozière, Preparation of nanoparticle Core− Shell electrolyte materials for proton ceramic fuel cells. Chem. Mater. 22(3), 1119–1125 (2010)
C.D. Savaniu, J. Canales-Vazquez, J.T. Irvine, Investigation of proton conducting BaZr 0.9 Y 0.1 O 295: BaCe 0.9 Y 0.1 O 2.95 core–shell structures. J. Mat. Chem. 15(5), 598–604 (2005)
N. Ai, N. Li, S. He, Y. Cheng, M. Saunders, K. Chen, T. Zhang, Highly active and stable Er 0.4 Bi 1.6 O 3 decorated La 0.76 Sr 0.19 MnO 3+ δ nanostructured oxygen electrodes for reversible solid oxide cells. J. Mat. Chem. A. 5(24), 12149–12157 (2017)
N. Ai, M. Chen, S. He, K. Chen, T. Zhang, High performance nanostructured bismuth oxide–cobaltite as a durable oxygen electrode for reversible solid oxide cells. J. Mat Chem. A 6(15), 6510–6520 (2018)
Z. Chen, L. Jiang, S. He, C. Guan, Y. Zou, Z. Yue, K. Chen, Development of intertwined nanostructured multi-phase air electrodes for efficient and durable reversible solid oxide cells. Appl Cataly B: Environ 305, 121056 (2022)
J.G. Lee, J.H. Park, Y.G. Shul, Tailoring gadolinium-doped ceria-based solid oxide fuel cells to achieve 2 W cm− 2 at 550 C. Nat. Commun. 5(1), 4045 (2014)
L. Jia, S. Ashtiani, F. Liang, G. He, H. Jiang, Hydrogen permeation through dual-phase ceramic membrane derived from automatic phase-separation of SrCe0. 50Fe0. 50O3-δ precursor. Int. J. Hydro. Energy. 45(7), 4625–4634 (2020)
Z. Cai, M. Kubicek, J. Fleig, B. Yildiz, Chemical heterogeneities on La0 6Sr0 4CoO3− δ thin films correlations to cathode surface activity and stability. Chem. Mat 24(6), 1116–1127 (2012)
J.H. Kim, K. Jang, D.K. Lim, S. Ahn, D. Oh, H. Kim, W. Jung, Self-assembled nano-composite perovskites as highly efficient and robust hybrid cathodes for solid oxide fuel cells. J. Mat. Chem. A. 10(5), 2496–2508 (2022)
N. Tsvetkov, Q. Lu, L. Sun, E.J. Crumlin, B. Yildiz, Improved chemical and electrochemical stability of perovskite oxides with less reducible cations at the surface. Nat. Mater. 15(9), 1010–1016 (2016)
V.R. Stamenkovic, D. Strmcnik, P.P. Lopes, N.M. Markovic, Energy and fuels from electrochemical interfaces. Nat. Mater. 16(1), 57–69 (2017)
J.H. Kim, S. Yoo, R. Murphy, Y. Chen, Y. Ding, K. Pei, M. Liu, Promotion of oxygen reduction reaction on a double perovskite electrode by a water-induced surface modification. Energy. Environ. Sci. 14(3), 1506–1516 (2021)
C. Jia, H. Li, X. Meng, H. Li, CsPbX 3/Cs 4 PbX 6 core/shell perovskite nanocrystals. Chem. Commun. 54(49), 6300–6303 (2018)
Z. Hu, Z. Liu, Y. Bian, S. Li, X. Tang, J. Du, Y. Leng, Enhanced two-photon-pumped emission from in situ synthesized nonblinking CsPbBr 3/SiO2 nanocrystals with excellent stability. Adv. Optical Mat. 6(3), 1700997 (2018)
W. Yang, F. Gao, Y. Qiu, W. Liu, H. Xu, L. Yang, Y. Liu, CsPbBr 3-Quantum-Dots/Polystyrene@ Silica hybrid microsphere structures with significantly improved stability for white LEDs. Adv. Optical Mat. 7(13), 1900546 (2019)
W. Chen, J. Hao, W. Hu, Z. Zang, X. Tang, L. Fang, M. Zhou, Enhanced stability and tunable photoluminescence in perovskite CsPbX3/ZnS quantum dot heterostructure. Small. 13(21), 1604085 (2017)
B. Wang, C. Zhang, S. Huang, Z. Li, L. Kong, L. Jin, L. Li, Postsynthesis phase transformation for CsPbBr 3/Rb4PbBr6 core/shell nanocrystals with exceptional photostability. ACS Appl Mat. Interfaces. 10(27), 23303–23310 (2018)
X. Tang, J. Yang, S. Li, W. Chen, Z. Hu, J. Qiu, CsPbBr 3/CdS core/shell structure quantum dots for inverted light-emitting diodes application. Front. Chem. 7, 499 (2019)
Z.J. Li, E. Hofman, J. Li, A.H. Davis, C.H. Tung, L.Z. Wu, W. Zheng, Photoelectrochemically active and environmentally stable CsPbBr3/TiO2 core/shell nanocrystals. Adv. Func. Mater. 28(1), 1704288 (2018)
Z.C. Kong, J.F. Liao, Y.J. Dong, Y.F. Xu, H.Y. Chen, D.B. Kuang, C.Y. Su, Core@ shell CsPbBr 3@ zeolitic imidazolate framework nanocomposite for efficient photocatalytic CO2 reduction. ACS Energy Lett. 3(11), 2656–2662 (2018)
H. Liu, Y. Tan, M. Cao, H. Hu, L. Wu, X. Yu, Q. Zhang, Fabricating CsPbX3-based type I and type II heterostructures by tuning the halide composition of janus CsPbX3/ZrO2 nanocrystals. ACS Nano. 13(5), 5366–5374 (2019)
G. Kaur, K. Justice Babu, N. Ghorai, T. Goswami, S. Maiti, H.N. Ghosh, Polaron-mediated slow carrier cooling in a type-1 3D/0D CsPbBr 3@ Cs4PbBr6 core–shell perovskite system. J Phys. Chem. Lett. 10(18), 5302–5311 (2019)
L. Li, T.J. Daou, I. Texier, T.T. Kim Chi, N.Q. Liem, P. Reiss, Highly luminescent CuInS2/ZnS core/shell nanocrystals: cadmium-free quantum dots for in vivo imaging. Chem. Mater. 21(12), 2422–2429 (2009)
B.N. Pal, Y. Ghosh, S. Brovelli, R. Laocharoensuk, V.I. Klimov, J.A. Hollingsworth, H. Htoon, ‘Giant’CdSe/CdS core/shell nanocrystal quantum dots as efficient electroluminescent materials: strong influence of shell thickness on light-emitting diode performance. Nano Lett. 12(1), 331–336 (2012)
D. Poirot, R. Platel, T. Alnasser, F. Guerin, E. Palleau, L. Ressier, Smartphone-identifiable photoluminescent nanoparticle-based multilevel secured tags by electrical microcontact printing. ACS. Appl. Nano. Mat. 1(10), 5936–5943 (2018)
J. Wang, I. Mora-Seró, Z. Pan, K. Zhao, H. Zhang, Y. Feng, J. Bisquert, Core/shell colloidal quantum dot exciplex states for the development of highly efficient quantum-dot-sensitized solar cells. J. Am. Chem. Soc. 135(42), 15913–15922 (2013)
J. Bang, J. Park, J.H. Lee, N. Won, J. Nam, J. Lim, S. Kim, ZnTe/ZnSe (core/shell) type-II quantum dots: their optical and photovoltaic properties. Chem. Mat. 22(1), 233–240 (2010)
S. Kumar, S. Khanchandani, M. Thirumal, A.K. Ganguli, Achieving enhanced visible-light-driven photocatalysis using type-II NaNbO3/CdS core/shell heterostructures. ACS Appl. Mater. Interfaces. 6(15), 13221–13233 (2014)
V.K. Ravi, S. Saikia, S. Yadav, V.V. Nawale, A. Nag, CsPbBr 3/ZnS core/shell type nanocrystals for enhancing luminescence lifetime and water stability. ACS Energy Lett. 5(6), 1794–1796 (2020)
S. Yun, A. Kirakosyan, S.G. Yoon, J. Choi, Scalable synthesis of exfoliated organometal halide perovskite nanocrystals by ligand-assisted ball milling. ACS. Sustain. Chem. Eng. 6(3), 3733–3738 (2018)
L. Protesescu, S. Yakunin, O. Nazarenko, D.N. Dirin, M.V. Kovalenko, Low-cost synthesis of highly luminescent colloidal lead halide perovskite nanocrystals by wet ball milling. ACS. Appl. Nano. Mat. 1(3), 1300–1308 (2018)
T. Lv, M. Wu, M. Guo, Q. Liu, L. Jia, Self-assembly photocatalytic reduction synthesis of graphene-encapusulated LaNiO3 nanoreactor with high efficiency and stability for photocatalytic water splitting to hydrogen. Chem. Eng. J. 356, 580–591 (2019)
J.P. Zou, L.Z. Zhang, S.L. Luo, L.H. Leng, X.B. Luo, M.J. Zhang, G.C. Guo, Preparation and photocatalytic activities of two new Zn-doped SrTiO3 and BaTiO3 photocatalysts for hydrogen production from water without cocatalysts loading. Int. J. Hydro. Energy. 37(22), 17068–17077 (2012)
H. Zhang, G. Chen, Y. Li, Y. Teng, Electronic structure and photocatalytic properties of copper-doped CaTiO3. Int. J. Hydrog. Energy 35(7), 2713–2716 (2010)
H. Zhang, G. Chen, X. He, J. Xu, Electronic structure and photocatalytic properties of Ag–La codoped CaTiO3. J. Alloy. Compd. 516, 91–95 (2012)
D.N. Bui, J. Mu, L. Wang, S.Z. Kang, X. Li, Preparation of Cu-loaded SrTiO3 nanoparticles and their photocatalytic activity for hydrogen evolution from methanol aqueous solution. Appl. Surf. Sci. 274, 328–333 (2013)
M. Crespo-Quesada, L.M. Pazos-Outón, J. Warnan, M.F. Kuehnel, R.H. Friend, E. Reisner, Metal-encapsulated organolead halide perovskite photocathode for solar-driven hydrogen evolution in water. Nat. Commun. 7(1), 12555 (2016)
W. Che, M. Wei, Z. Sang, Y. Ou, Y. Liu, J. Liu, Perovskite LaNiO3-δ oxide as an anion-intercalated pseudocapacitor electrode. J. Alloy. Compd. 731, 381–388 (2018)
H. Mo, H. Nan, X. Lang, S. Liu, L. Qiao, X. Hu, H. Tian, Influence of calcium doping on performance of LaMnO3 supercapacitors. Ceram. Int. 44(8), 9733–9741 (2018)
E.C. Su, B.S. Huang, M.Y. Wey, Enhanced optical and electronic properties of a solar light-responsive photocatalyst for efficient hydrogen evolution by SrTiO3/TiO2 nanotube combination. Sol. Energy 134, 52–63 (2016)
K. Guo, Z. Liu, Y. Wang, Y. Zhao, Y. Xiao, J. Han, T. Cui, Fabrication of ZnO/SrTiO3 nanoarrays and its photoelectrochemical performances. Int. J. Hydro. Energy 39(25), 13408–13414 (2014)
J. Yang, C. Shi, Y. Dong, H. Su, H. Sun, Y. Guo, S. Yin, Efficient hydrogen generation of vector Z-scheme CaTiO3/Cu/TiO2 photocatalyst assisted by cocatalyst Cu nanoparticles. J. Colloid Interface Sci. 605, 373–384 (2022)
H. Shi, C. Zhang, C. Zhou, G. Chen, Conversion of CO 2 into renewable fuel over Pt–gC 3 N 4/KNbO 3 composite photocatalyst. RSC Adv. 5(113), 93615–93622 (2015)
Y. Im, S.-M. Park, M. Kang, Effect of Ca/Ti ratio on the core–shell structured CaTiO3@basalt fiber for effective photoreduction of carbon dioxide Bull. Korean Chem. Soc. 38, 397–400 (2017)
O. Vybornyi, S. Yakunin, M.V. Kovalenko, Polar-solvent-free colloidal synthesis of highly luminescent alkylammonium lead halide perovskite nanocrystals. Nanoscale 8(12), 6278–6283 (2016)
Q. Wang, Z. Jin, D. Chen, D. Bai, H. Bian, J. Sun, S. Liu, µ-graphene crosslinked cspbi3 quantum dots for high efficiency solar cells with much improved stability. Adv. Energy Mat. 8(22), 1800007 (2018)
X. Ling, S. Zhou, J. Yuan, J. Shi, Y. Qian, B.W. Larson, W. Ma, 141% CsPbI3 perovskite quantum dot solar cells via cesium cation passivation. Adv. Energy. Mat. 9(28), 1900721 (2019)
S. Schünemann, H. Tüysüz, An inverse opal structured halide perovskite photocatalyst. Eur. J. Inorg. Chem. 2018(20–21), 2350–2355 (2018)
Y. Ling, Z. Yuan, Y. Tian, X. Wang, J.C. Wang, Y. Xin, H. Gao, Bright light-emitting diodes based on organometal halide perovskite nanoplatelets. Adv. Mat. 28(2), 305–311 (2016)
M. Lv, X. Sun, S. Wei, C. Shen, Y. Mi, X. Xu, Ultrathin lanthanum tantalate perovskite nanosheets modified by nitrogen doping for efficient photocatalytic water splitting. ACS Nano 11(11), 11441–11448 (2017)
X. Sun, Y. Xie, F. Wu, H. Chen, M. Lv, S. Ni, X. Xu, Photocatalytic hydrogen production over chromium doped layered perovskite Sr2TiO4. Inorg. Chem 54(15), 7445–7453 (2015)
D. Saadetnejad, R. Yıldırım, Photocatalytic hydrogen production by water splitting over Au/Al-SrTiO3. Int J Hydro. Energy. 43(2), 1116–1122 (2018)
T. Alammar, I. Hamm, M. Wark, A.V. Mudring, Low-temperature route to metal titanate perovskite nanoparticles for photocatalytic applications. Appl. Catal. B 178, 20–28 (2015)
T. Zhu, H.E. Troiani, L.V. Mogni, M. Han, S.A. Barnett, Ni-substituted Sr (Ti, Fe) O3 SOFC anodes: achieving high performance via metal alloy nanoparticle exsolution. Joule 2(3), 478–496 (2018)
C. Yang, Z. Yang, C. Jin, G. Xiao, F. Chen, M. Han, Sulfur-tolerant redox-reversible anode material for direct hydrocarbon solid oxide fuel cells. Adv. Mater. 24(11), 1439–1443 (2012)
Z. Yang, Y. Chen, N. Xu, Y. Niu, M. Han, F. Chen, Stability investigation for symmetric solid oxide fuel cell with La0. 4Sr0. 6Co0. 2Fe0. 7Nb0. 1O3-δ electrode. J. Electrochem. Soc. 162(7), F718 (2015)
K.Y. Lai, A. Manthiram, Evolution of exsolved nanoparticles on a perovskite oxide surface during a redox process. Chem. Mater. 30(8), 2838–2847 (2018)
L. Lu, S. Ni, G. Liu, X. Xu, Structural dependence of photocatalytic hydrogen production over La/Cr co-doped perovskite compound ATiO3 (A=Ca, Sr and Ba). Int. J. Hydrogen Energy 42(37), 23539–23547 (2017)
H.W. Kang, S.B. Park, Improved performance of tri-doped photocatalyst SrTiO3: Rh/Ta/F for H2 evolution under visible light irradiation. Int. J. Hydrogen Energy 41(32), 13970–13978 (2016)
P. Da, M. Cha, L. Sun, Y. Wu, Z.S. Wang, G. Zheng, High-performance perovskite photoanode enabled by Ni passivation and catalysis. Nano Lett. 15(5), 3452–3457 (2015)
A.M. Huerta-Flores, J. Chen, L.M. Torres-Martínez, A. Ito, E. Moctezuma, T. Goto, Laser assisted chemical vapor deposition of nanostructured NaTaO3 and SrTiO3 thin films for efficient photocatalytic hydrogen evolution. Fuel 197, 174–185 (2017)
S. Ahmad, A. Sadhanala, R.L. Hoye, V. Andrei, M.H. Modarres, B. Zhao, M. De Volder, Triple-cation-based perovskite photocathodes with AZO protective layer for hydrogen production applications. ACS. Appl. Mater. Interfaces 11(26), 23198–23206 (2019)
Y. Cao, N. Wang, H. Tian, J. Guo, Y. Wei, H. Chen, W. Huang, Perovskite light-emitting diodes based on spontaneously formed submicrometre-scale structures. Nature 562(7726), 249–253 (2018)
S. Zhou, R. Tang, L. Yin, Slow-photon-effect-induced photoelectrical-conversion efficiency enhancement for carbon-quantum-dot-sensitized inorganic CsPbBr 3 inverse opal perovskite solar cells. Adv. Mater. 29(43), 1703682 (2017)
Y.A. Lu, T.H. Chang, S.H. Wu, C.C. Liu, K.W. Lai, Y.C. Chang, K.C. Ho, Coral-like perovskite nanostructures for enhanced light-harvesting and accelerated charge extraction in perovskite solar cells. Nano Energy 58, 138–146 (2019)
Z. Hu, Z. Liu, Y. Bian, S. Li, X. Tang, J. Du, Y. Leng, Enhanced two-photon-pumped emission from in situ synthesized nonblinking CsPbBr 3/SiO2 nanocrystals with excellent stability. Adv. Optical. Mater 6(3), 1700997 (2018)
W. Chen, J. Hao, W. Hu, Z. Zang, X. Tang, L. Fang, M. Zhou, Enhanced stability and tunable photoluminescence in perovskite CsPbX3/ZnS quantum dot heterostructure. Small 13(21), 1604085 (2017)
C. Zhang, S. Wang, X. Li, M. Yuan, L. Turyanska, X. Yang, Core/shell perovskite nanocrystals: synthesis of highly efficient and environmentally stable FAPbBr 3/CsPbBr3 for LED applications. Adv. Func. Mater. 30(31), 1910582 (2020)
S. Li, D. Lei, W. Ren, X. Guo, S. Wu, Y. Zhu, A.K.Y. Jen, Water-resistant perovskite nanodots enable robust two-photon lasing in aqueous environment. Nat. Commun. 11(1), 1192 (2020)
Y. Song, Y. Chen, M. Xu, W. Wang, Y. Zhang, G. Yang, Z. Shao, A cobalt-free multi-phase nanocomposite as near-ideal cathode of intermediate-temperature solid oxide fuel cells developed by smart self-assembly. Adv. Mat. 32(8), 1906979 (2020)
L. Jia, G. He, Y. Zhang, J. Caro, H. Jiang, Hydrogen purification through a highly stable dual-phase oxygen-permeable membrane. Angew. Chem. 133(10), 5264–5268 (2021)
J. Zhang, M.R. Gao, J.L. Luo, In situ exsolved metal nanoparticles: a smart approach for optimization of catalysts. Chem. Mater. 32(13), 5424–5441 (2020)
X. Sun, H. Chen, Y. Yin, M.T. Curnan, J.W. Han, Y. Chen, Z. Ma, Progress of exsolved metal nanoparticles on oxides as high performance (electro) catalysts for the conversion of small molecules. Small 17(10), 2005383 (2021)
Y. Yang, J. Li, Y. Sun, The metal/oxide heterointerface delivered by solid-based exsolution strategy: a review. Chem. Eng. J. 440, 135868 (2022)
J. Dai, Y. Zhu, Y. Chen, X. Wen, M. Long, X. Wu, Z. Shao, Hydrogen spillover in complex oxide multifunctional sites improves acidic hydrogen evolution electrocatalysis. Nat. Commun. 13(1), 1189 (2022)
X. Wang, X. Zhang, G. Fu, Y. Tang, Recent progress of electrospun porous carbon-based nanofibers for oxygen electrocatalysis. Mater. Today. Energy. 22, 100850 (2021)
K.K. Ghose, J.J. Brown, T.J. Frankcombe, A. Page, A. Bayon, Density functional theory modeling of critical properties of perovskite oxides for water splitting applications. Wiley Interdisciplin. Rev 12(4), e476 (2023)
U. Kim, S. Lee, D. Koo, Y. Choi, H. Kim, E. Son, H. Park, Crystal facet and electronic structure modulation of perovskite oxides for water oxidation. ACS Energy. Lett. 8(3), 1575–1583 (2023)
X. Xu, Y. Pan, Y. Zhong, R. Ran, Z. Shao, Ruddlesden-Popper Perovskites. Electrocat. Mater. Horizons 7(10), 2519–2565 (2020)
Y. Zhang, B. Chen, D. Guan, M. Xu, R. Ran, M. Ni, Z. Shao, Thermal-expansion offset for high-performance fuel cell cathodes. Nature 591(7849), 246–251 (2021)
F. Liu, H. Deng, D. Diercks, P. Kumar, M.H.A. Jabbar, C. Gumeci, C. Duan, Lowering the operating temperature of protonic ceramic electrochemical cells to< 450°C. Nat. Energy 8(10), 1145–1157 (2023)
S. Yuan, J. Peng, B. Cai, Z. Huang, A.T. Garcia-Esparza, D. Sokaras, Y. Shao-Horn, Tunable metal hydroxide–organic frameworks for catalysing oxygen evolution. Nat. Mater. 21(6), 673–680 (2022)
Z. Zhang, X. Wu, Z. Kou, N. Song, G. Nie, C. Wang, S. Mu, Rational design of electrospun nanofiber-typed electrocatalysts for water splitting: a review. Chem. Eng. J 428, 131133 (2022)
S. Han, S. Noh, J. Shin, Y.T. Yu, I.S. Seo, J.S. Kim, Photoelectrochemical water-splitting using GaN pyramidal dots and their long-term stability in the two-electrode configuration. J. Mater. Chem. A 10(19), 10355–10362 (2022)
Z.K. Tan, R.S. Moghaddam, M.L. Lai, P. Docampo, R. Higler, F. Deschler, R.H. Friend, Bright light-emitting diodes based on organometal halide perovskite. Nat. Nanotechnol. 9(9), 687–692 (2014)
Y. Yan, T. Pullerits, K. Zheng, Z. Liang, Advancing tin halide perovskites: strategies toward the ASnX3 paradigm for efficient and durable optoelectronics. ACS Energy Lett. 5(6), 2052–2086 (2020)
Y. Bu, H. Jang, O. Gwon, S.H. Kim, S.H. Joo, G. Nam, G. Kim, Synergistic interaction of perovskite oxides and N-doped graphene in versatile electrocatalyst. J. Mater Chem. A 7(5), 2048–2054 (2019)
Y. Lu, H. Zhang, Y. Wang, X. Zhu, W. Xiao, H. Xu, X. Yang, Solar-driven interfacial evaporation accelerated electrocatalytic water splitting on 2D perovskite Oxide/MXene Heterostructure. Adv. Function. Mater. 33(21), 2215061 (2023)
Thien, G. S. H., Chan, K. Y., & Yap, B. K. Polymer-enhanced perovskite oxide-based photocatalysts: a review. Nanoscale. (2023).
D. Hansora, J.W. Yoo, R. Mehrotra, W.J. Byun, D. Lim, Y.K. Kim, J.S. Lee, All-perovskite-based unassisted photoelectrochemical water splitting system for efficient, stable and scalable solar hydrogen production. Nat. Energy. 9(3), 1–13 (2024)
V. Andrei, R.L. Hoye, M. Crespo-Quesada, M. Bajada, S. Ahmad, M. De Volder, E. Reisner, Scalable triple cation mixed halide perovskite–bivo4 tandems for bias-free water splitting. Adv. Energy. Mater. 8(25), 1801403 (2018)
V. Andrei, G.M. Ucoski, C. Pornrungroj, C. Uswachoke, Q. Wang, D.S. Achilleos, E. Reisner, Floating perovskite-BiVO4 devices for scalable solar fuel production. Nature 608(7923), 518–522 (2022)
Q. Guo, Y. Luo, J. Xu, L. Deng, Z. Wang, H. He, Low-concentration CO2 conversion on AgxNa1− xTaO3-AgCl heterojunction photocatalyst. Appl. Catal. B 324, 122253 (2023)
T.H. Tan, B. Xie, Y.H. Ng, S.F.B. Abdullah, H.Y.M. Tang, N. Bedford, J. Scott, Unlocking the potential of the formate pathway in the photo-assisted Sabatier reaction. Nat. Catal. 3(12), 1034–1043 (2020)
L.Y. Wu, M.R. Zhang, Y.X. Feng, W. Zhang, M. Zhang, T.B. Lu, Two-dimensional metal halide perovskite nanosheets for efficient photocatalytic CO2 reduction. Solar RRL 5(8), 2100263 (2021)
J. Lee, W.K. Chong, S.H.W. Kok, B.J. Ng, X.Y. Kong, S.P. Chai, L.L. Tan, Mixed halide formation in lead-free antimony-based halide perovskite for boosted CO2 photoreduction: beyond band gap tuning. Adv. Func. Mater. 33(42), 2303430 (2023)
Y. Jiang, J.F. Liao, Y.F. Xu, H.Y. Chen, X.D. Wang, D.B. Kuang, Hierarchical CsPbBr 3 nanocrystal-decorated ZnO nanowire/macroporous graphene hybrids for enhancing charge separation and photocatalytic CO 2 reduction. J. Mater. Chem. A 7(22), 13762–13769 (2019)
J. Wang, Y. Shi, Y. Wang, Z. Li, Rational design of metal halide perovskite nanocrystals for photocatalytic CO2 reduction: Recent advances, challenges, and prospects. ACS Energy Lett. 7(6), 2043–2059 (2022)
M. Ahangari, J. Mostafaei, A. Sayyah, E. Mahmoudi, E. Asghari, A. Coruh, A. Niaei, Investigation of structural and electrochemical properties of SrFexCo1-xO3-δ perovskite oxides as a supercapacitor electrode material. J. Energy. Storage. 63, 107034 (2023)
A. Rezanezhad, E. Rezaie, L.S. Ghadimi, A. Hajalilou, E. Abouzari-Lotf, N. Arsalani, Outstanding supercapacitor performance of Nd–Mn co-doped perovskite LaFeO3@ nitrogen-doped graphene oxide nanocomposites. Electrochim. Acta 335, 135699 (2020)
G. Kéranguéven, C. Ulhaq-Bouillet, V. Papaefthimiou, S. Royer, E. Savinova, Perovskite-carbon composites synthesized through in situ autocombustion for the oxygen reduction reaction: the carbon effect. Electrochim. Acta 245, 156–164 (2017)
N. Arjun, G.T. Pan, T.C. Yang, The exploration of Lanthanum based perovskites and their complementary electrolytes for the supercapacitor applications. Results in physics 7, 920–926 (2017)
P.M. Shafi, V. Ganesh, A.C. Bose, LaMnO3/RGO/PANI ternary nanocomposites for supercapacitor electrode application and their outstanding performance in all-solid-state asymmetrical device design. ACS Appl. Energy. Mater 1(6), 2802–2812 (2018)
Y. Zhang, J. Ding, W. Xu, M. Wang, R. Shao, Y. Sun, B. Lin, Mesoporous LaFeO3 perovskite derived from MOF gel for all-solid-state symmetric supercapacitors. Chem. Eng. J. 386, 124030 (2020)
Z. Meng, J. Xu, P. Yu, X. Hu, Y. Wu, Q. Zhang, H. Tian, Double perovskite La2CoMnO6 hollow spheres prepared by template impregnation for high-performance supercapacitors. Chem. Eng. J. 400, 125966 (2020)
H. Zhang, L. Pfeifer, S.M. Zakeeruddin, J. Chu, M. Grätzel, Tailoring passivators for highly efficient and stable perovskite solar cells. Nat. Rev. Chem. 7(9), 632–652 (2023)
H. Zhang, J.W. Lee, G. Nasti, R. Handy, A. Abate, M. Grätzel, N.G. Park, Lead immobilization for environmentally sustainable perovskite solar cells. Nature 617(7962), 687–695 (2023)
T. Miyasaka, A. Kulkarni, G.M. Kim, S. Öz, A.K. Jena, Perovskite solar cells: can we go organic-free, lead-free, and dopant-free? Adv. Energy Mater. 10(13), 1902500 (2020)
H.H. Huang, Y.C. Shih, L. Wang, K.F. Lin, Boosting the ultra-stable unencapsulated perovskite solar cells by using montmorillonite/CH 3 NH 3 PbI 3 nanocomposite as photoactive layer. Energy Environ. Sci. 12(4), 1265–1273 (2019)
B. Niu, H. Wu, J. Yin, B. Wang, G. Wu, X. Kong, H. Chen, Mitigating the lead leakage of high-performance perovskite solar cells via in situ polymerized networks. ACS Energy. Lett. 6(10), 3443–3449 (2021)
Q. Wang, B. Chen, Y. Liu, Y. Deng, Y. Bai, Q. Dong, J. Huang, Scaling behavior of moisture-induced grain degradation in polycrystalline hybrid perovskite thin films. Energy Environ. Sci. 10(2), 516–522 (2017)
K. Xiao, Q. Han, Y. Gao, S. Gu, X. Luo, R. Lin, H. Tan, Simultaneously enhanced moisture tolerance and defect passivation of perovskite solar cells with cross-linked grain encapsulation. J. Energy. Chem. 56, 455–462 (2021)
T. Liu, Y. Zhou, Z. Li, L. Zhang, M.G. Ju, D. Luo, R. Zhu, Stable formamidinium-based perovskite solar cells via in situ grain encapsulation. Adv. Energy. Mater. 8(22), 1800232 (2018)
L. Zhang, C. Sun, T. He, Y. Jiang, J. Wei, Y. Huang, M. Yuan, High-performance quasi-2D perovskite light-emitting diodes: from materials to devices. Light. 10, 1 (2021)
Z. Chu, W. Zhang, J. Jiang, Z. Qu, F. Ma, Y. Zhao, J. You, Blue light-emitting diodes based on quasi-two-dimensional perovskite with efficient charge injection and optimized phase distribution via an alkali metal salt. Nat. Electron 6(5), 360–369 (2023)
B. Zhao, S. Bai, V. Kim, R. Lamboll, R. Shivanna, F. Auras, D. Di, High-efficiency perovskite–polymer bulk heterostructure light-emitting diodes. Nat. Photon. 12(12), 783–789 (2018)
L. Han, J. Zhang, M. Zou, J. Tong, Toward superb perovskite oxide electrocatalysts: engineering of coupled nanocomposites. Small 18(50), 2204784 (2022)
M.R. Kar, S. Ray, B.K. Patra, S. Bhaumik, State of the art and prospects of metal halide perovskite core@ shell nanocrystals and nanocomposites. Mater. Today. Chem. 20, 100424 (2021)
B.X. Chen, H.S. Rao, H.Y. Chen, W.G. Li, D.B. Kuang, C.Y. Su, Ordered macroporous CH 3 NH 3 PbI 3 perovskite semitransparent film for high-performance solar cells. J Mater. Chem. A 4(40), 15662–15669 (2016)
M.R. Ahmadian-Yazdi, M. Eslamian, Fabrication of semiconducting methylammonium lead halide perovskite particles by spray technology. Nanoscale Res. Lett. 13(1), 6 (2018)
G. Liu, S.K. Karuturi, H. Chen, D. Wang, J.W. Ager, A.N. Simonov, A. Tricoli, Enhancement of the photoelectrochemical water splitting by perovskite BiFeO3 via interfacial engineering. Sol. Energy 202, 198–203 (2020)
D. Bokov, A. Turki Jalil, S. Chupradit, W. Suksatan, M. Javed Ansari, I.H. Shewael, E. Kianfar, Nanomaterial by sol-gel method: synthesis and application. Adv. Mater. Sci. Eng. 2021, 1–21 (2021)
A. Waleed, M.M. Tavakoli, L. Gu, Z. Wang, D. Zhang, A. Manikandan, Z. Fan, Lead-free perovskite nanowire array photodetectors with drastically improved stability in nanoengineering templates. Nano. letters 17(1), 523–530 (2017)
F. Zhang, H. Zhong, C. Chen, X.G. Wu, X. Hu, H. Huang, Y. Dong, Brightly luminescent and color-tunable colloidal CH3NH3PbX3 (X= Br, I, Cl) quantum dots: potential alternatives for display technology. ACS Nano 9(4), 4533–4542 (2015)
H.H. Ma, M. Imran, Z. Dang, Z. Hu, Growth of metal halide perovskite, from nanocrystal to micron-scale crystal: a review. Crystals 8(5), 182 (2018)
A.D. Taylor, Q. Sun, K.P. Goetz, Q. An, T. Schramm, Y. Hofstetter, Y. Vaynzof, A general approach to high-efficiency perovskite solar cells by any antisolvent. Nat. Commun. 12(1), 1878 (2021)
X. Tang, J. Yang, S. Li, Z. Liu, Z. Hu, J. Hao, Q. Xiong, Single halide perovskite/semiconductor core/shell quantum dots with ultrastability and nonblinking properties. Adv. Sci. 6(18), 1900412 (2019)
X. Zhang, Z. Guo, R. Li, J. Yu, B. Yuan, B. Chen, T. He, R. Chen, Quasi-type II coreshell perovskite nanocrystals for improved structural stability and optical gain. ACS Appl. Mater. Interfaces 13, 58170–58178 (2021)
J. Yesuraj, M. Ramesh, K. Kim, K. Biswas, Fundamental aspects of perovskite oxides as an emerging material for supercapacitor applications and its anion intercalation mechanism-Review. J. Energy. Storage 78, 109968 (2024)
Z. Chu, Q. Ye, Y. Zhao, F. Ma, Z. Yin, X. Zhang, J. You, Perovskite light-emitting diodes with external quantum efficiency exceeding 22% via small-molecule passivation. Adv. Mater. 33(18), 2007169 (2021)
Y.K. Wang, F. Yuan, Y. Dong, J.Y. Li, A. Johnston, B. Chen, M.I. Saidaminov, C. Zhou, X. Zheng, Y. Hou et al., All-inorganic quantumdot LEDs based on a phase-stabilized alpha- CsPbI3 perovskite. Angew. Chem. Int. Ed. Engl. 60, 16164–16170 (2021)
F. Zhang, Z. Shi, S. Li, Z. Ma, Y. Li, L. Wang, C. Shan, Synergetic effect of the surfactant and silica coating on the enhanced emission and stability of perovskite quantum dots for anticounterfeiting. ACS Appl. Mater. Interfaces. 11(31), 28013–28022 (2019)
Y. Huang, F. Li, L. Qiu, F. Lin, Z. Lai, S. Wang, X. Chen, Enhancing the stability of CH3NH3PbBr 3 nanoparticles using double hydrophobic shells of SiO2 and poly (vinylidene fluoride). ACS Appl. Mater. Interfaces. 11(29), 26384–26391 (2019)
Z. Li, L. Kong, S. Huang, L. Li, Highly luminescent and ultrastable CsPbBr 3 perovskite quantum dots incorporated into a silica/alumina monolith. Angew. Chem. 129(28), 8246–8250 (2017)
Acknowledgements
This work was partially supported by the Technology Innovation Program Development Program (RS-2023-00269589, Development of Thermally Conductive Adhesive Material for the Monolithic Module of Foldable Displays and Low-Energy High-Speed Curing Process) funded By the Ministry of Trade, Industry & Energy (MOTIE, Korea).
Author information
Authors and Affiliations
Contributions
All authors read and approved the final manuscript.
Corresponding authors
Ethics declarations
Competing interests
The authors declare that they have no competing interests.
Additional information
Publisher's Note
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Rights and permissions
Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.
About this article
Cite this article
Choi, Y., Han, S., Park, BI. et al. Perovskite nanocomposites: synthesis, properties, and applications from renewable energy to optoelectronics. Nano Convergence 11, 36 (2024). https://doi.org/10.1186/s40580-024-00440-7
Received:
Accepted:
Published:
DOI: https://doi.org/10.1186/s40580-024-00440-7
