Excellent enhancement in the device performance of nitrogen plasma treated ZnO nanorods based diodes

Nano Convergence volume 1, Article number: 26 (2014) Cite this article

Abstract

Impact of the plasma exposure time on the physical properties of homo-epitaxial ZnO nanorods (NRs) and their devices was investigated. Here, ZnO NRs were synthesized by chemical solution method on glass substrates and treated under high intensity nitrogen plasma at different exposure timings. The as-grown as well as treated ZnO NRs exhibited hexagonal crystal structure and (001) as a preferential orientation. While increasing the plasma exposure time from 1 to 15 min, the structural and optical quality of ZnO NRs gradually improved and above this exposure time, both the properties degraded. The devices fabricated with 15 min plasma treated ZnO NRs showed excellent diode performance than the untreated nanostructures based devices. The diodes developed with treated ZnO NRs showed a low turn-on voltage (3.3 V) than the devices developed with untreated NRs.

1. Background

In recent years, the development of optoelectronic, electronic and bio devices on flexible substrates has received tremendous interest due to their unique advantages over the rigid-substrates [1],[2]. Zinc oxide (ZnO) is a wide band gap (~3.37 eV) semiconductor compound and exhibits high exciton binding energy (~60 meV, which is 2.5 times higher than that of room temperature thermal energy), good thermal and chemical stability [3],[4]. In this aspect, different type of ZnO nanostructures including nanosheets (NSs), nanorods (NRs), nanotubes (NTs), nanoflowers (NFs), nanobelts (NBs), nanowires (NWs) and nano-cages (NCs) etc. have been synthesized using different physical and chemical methods, and also adopted for various device applications [5],[6]. Among various synthetic methods, low temperature chemical solution method(s) have been widely applied for the synthesis of ZnO nanostructures due to their possible control over the growth parameters, scalability and versatility. ZnO nanostructures developed with chemical solution approach consist of pure phase and good stoichiometry since the growth occurs at atomic levels. However, these ZnO nanostructures suffer with poor structural and optical quality due to the presence of interstitial and surface defect states [7].

The plasma treatment is a versatile method for the processing of materials like surface cleaner, adhesion promotion, surface energy controlling and enhancement in bio-compatibility and device performance [8]. For example, oxygen radio frequency plasma treated multi-wall carbon nanotubes (CNT) exhibited improved uniformity in the distribution of surface defects and thereby dispersion of metallic nanoparticles [9]. Excellent electrochemical contacts between carbon nano tubes and enzymes have obtained by treating the as-grown CNTs by nitrogen plasma due to the flip of surface from hydrophobic to hydrophilic [10]. Similarly, there has been a various number of reports on plasma treated ZnO materials reported elsewhere [11]-[14]. By keeping in mind about the future multifunctional applications of ZnO nanostructures as flexible device and existing data, we made an attempt to produce the best quality of ZnO NRs by plasma treatment since it is safe and environmental friendly than the other traditional methods. In this present study we have adopted nitrogen (N2) plasma to treat the hydrothermally synthesized ZnO NRs since the ionic radius of nitrogen is close to O and it also acts as deep acceptor and good compensator [11],[15]. The impact of nitrogen plasma treatment on the surface morphology, crystal structures and optical properties of ZnO NRs reported and discussed. Further, p-n junction diodes prepared with treated and untreated ZnO NRs and estimated their device performance at room temperature.

2. Methodology

Vertically aligned ZnO NRs were grown by chemical solution technique at a growth temperature of ~70°C. In this process, zinc nitrate hexahydrate and hexamethylenetetramine (from Sigma Aldrich) analytical grade chemicals were used as reagents without further purification. The ZnO NRs were grown on ZnO layer (or seed layer) coated (~50 nm) glass (bare and indium tin oxide coated; 7–8 Ω/sq resistance) substrates. A detailed description about the synthesis of ZnO NRs has been reported elsewhere [16]. The as-grown ZnO NRs structures were treated by nitrogen (4 N pure nitrogen gas with a flow rate of 100 sccm) plasma in the plasma-enhanced chemical vapor deposition system for different time spans, 0–20 min. Here, the plasma was created at a fixed gas pressure of 200 mTorr with a power of 100 W [12]. However, upon treatment we have noticed a gradual raise in temperature from 25 to 120°C. Finally, the p-n junction diodes were fabricated by spin coating of the poly(3,4-ethylenedioxythiophene) poly(styrenesulfonate) (PEDOT:PSS) polymer on ZnO NRs grown on ITO/glass substrates.

The structure and morphology of the structures were examined with X-ray diffractometer (XRD, Philips X’Pert Pro) and field emission scanning electron microscopy (FESEM, JSM-840 A). The photoluminescence (PL) measurements were carried out at room temperature with 325 nm He-Cd laser in the wavelength rage of 350–1000 nm. The electrical properties of the p-n diodes were studied at room temperature by using probe station attached with semiconductor parameter analyzer.

3. Results and discussion

3.1 Surface and structural properties

The FESEM analysis (Figure 1) reveals that the as-grown nanorods are vertically aligned and have an average length and diameter of 1.5 μm and 75 nm, respectively. It also shows that the morphology of treated ZnO NRs, even at longer exposures, remains as same as untreated structures. On the other hand, the as-grown ZnO NRs exhibited three XRD peaks diffracted at 2θ = 31.9, 34.55 and 36.4° (Figure 2), which belong to (100), (002) and (101) orientations respectively since the evaluated d-spacing values (0.2803, 02594, and 0.466 nm) exactly matched with the bulk hexagonal ZnO data (JCPDS: 36–1451) [16]-[18]. As compared to other diffraction peaks, (002) peak is more dominant, and therefore the as-grown ZnO NRs are preferentially oriented along <001 > direction, i.e. c-axis. While increasing plasma exposure time, the intensity of preferential peak gradually increased upto the exposure time of 15 min and above this, it slightly decreased. However, the crystallinity of ZnO NRs, i.e. the intensity ratio of I(002) and I(101) peaks, gradually increased with the increase of exposure time, as shown in Figure 3. Further, the evaluated full width at half maximum (FWHM) value of (002) peak decreased with the increase of exposure time, as shown in Figure 3. However, at higher exposure timings (>15 min), the plasma treated ZnO NR structures exhibited two new diffraction peaks at 30.5 (d = 0.293 nm) and 35.4° (d = 0.253 nm), which belong to Zn3N2 phase [19].

Figure 1
figure 1

Cross sectional FESEM images of (a) as-grown and (b) plasma treated (20 min) ZnO NRs (inset of Figure 1a shows the surface morphology of as-grown ZnO NRs).

Full size image
Figure 2
figure 2

XRD profiles of as-grown and plasma treated ZnO NRs for the three typical exposure timings of 5, 15 and 20 min.

Full size image
Figure 3
figure 3

Variation of I(002)/I(101) ratio and FWHM of ZnO NRs as a function of plasma exposure time.

Full size image

A considerable improvement in the crystalline quality of thermo chemically grown ZnO NRs with the treatment of high intensity plasma can be explained using the existing literature. In general, ZnO NRs grown by thermo chemical method usually consist of different surface defect states due to the presence of water and hydroxyl ions, and non-reacted Zn and O ions as interstitial defect states [20],[21]. These defect states probably act as amorphous centers and as results, the as-grown structures exhibit slightly poor crystallinity. Upon plasma treatment, these surface defect states probably released due to the bombardment of energetic nitrogen ions, which also induce the re-crystallization of Zn and O ions. Further, the diffusion of Ni ions into the core-lattice of ZnO probably neutralizes the defect states present in the ZnO NRs. As result, the overall crystallinity of ZnO NRs enhanced with the increase of nitrogen plasma treatment. On the other hand, a possible reason for the formation of Zn3N2 phase could be unintentional raise in temperature during plasma treatment since nitrogen ions can easily replace the oxygen atoms at temperatures higher than 110°C. Therefore, these analyses clearly emphasized that the structure and phase purity of ZnO NRs remains as same as the untreated nanostructures upto the plasma exposure time of 15 min, and the crystalline quality of 15 min treated ZnO NRs improved nearly by three times than that of untreated ones.

3.2 Optical emission properties

PL studies show that the as-grown ZnO NRs have a large number of defect states that are mainly attributed to the interstitials and vacancies of zinc and oxygen atoms since the emission intensity of the broad band (BB) peak centered at 590 nm is comparatively higher than the intensity of ultra-violet (UV) peak (Figure 4) centered at 390 nm. Upon increasing the nitrogen plasma exposure time, the UV peak intensity drastically increased and BB peak intensity considerably decreased, which can be clearly seen from Figure 5. The variation of emission intensity ratio of UV and BB peaks (i.e. IUV/IBB) with plasma exposure time, Figure 5, reveals that while increasing exposure time the quality of ZnO NRs gradually increased upto the exposure time of 15 min. Above this, a degradation in the emission quality of NRs started. These results indicate that the structures treated for 15 min span consist of high quality optical properties since IUV/IBB ratio of these structures is 11 times higher than that of as-grown nanorods. An improvement in the optical quality of 15 min treated ZnO NRs is attributed to the passivation of defects states present on the surface of ZnO NRs. At higher exposure timings, the regeneration of oxygen interstitials (Oi) through the replacement of oxygen in ZnO lattice by nitrogen atoms probably lead the density of defect states to higher values and causes for the overall degradation in quality of ZnO NRs. While increasing the plasma exposure time the structures exhibited slight red-shift in the UV peak position upto the exposure time of 15 min and at higher exposure timings, the UV peak position drastically shifted towards lower wavelengths (i.e. blue-shift), Figure 6. In general, the UV peak position, represents the near band edge emission (band gap, Eg), strongly depends on the crystalline quality of ZnO NRs. As observed in XRD studies, the crystalline quality of plasma treated ZnO NRs improved upto the exposure time of 15 min that probably leads the band gap of ZnO NRs to slightly lower values due to the passivation of defect states.

Figure 4
figure 4

Photoluminescence spectra of as-grown and plasma treated ZnO NRs at different exposure timings.

Full size image
Figure 5
figure 5

Variation of UV and BB peaks intensities and their ratio (I UV /I BB ) of ZnO NRs as a function of plasma exposure time.

Full size image
Figure 6
figure 6

Shift in UV peak position of ZnO NRs with increase in plasma exposure time.

Full size image

It is well know that in ZnO lattice matrix nitrogen impurities act as acceptors [22],[23]. In this view, various groups have adopted nitrogen as doping agent for the development of p-type ZnO films and also nanostructures [24]-[28]. In general, upon increasing plasma exposure time, the amount of nitrogen implantation or absorption in ZnO NRs increases. The incorporation of nitrogen into ZnO NR structures probably occurs in two ways: interstitial and substitutional doping. As interstitial doping, the nitrogen atoms neutralize the defect states present on the surface of ZnO materials, whereas in substitutional doping, nitrogen impurities generate interstitial defects (OI) by replacing oxygen atoms. Usually, the electrical conductivity of ZnO primarily dominated by electrons generated from oxygen vacancies and zinc interstitial atoms [29],[30]. In the present case, the interstitial incorporation of nitrogen atoms in place of oxygen vacancies (VO) [11],[13] diminish the existing defects states due to passivation, and leads the density of carriers to lower values. Thus, the defects related BB peak intensity strongly reduced. Further, the decrease of carrier density leads band gap of ZnO NRs to lower values since Eg α ni 2/3. At higher exposure timings, there are two possible reasons for the formation of Zn3N2 phase: i) replacement of oxygen atoms in Zn-O lattice by entering nitrogen ions as substitutional impurity thereby release of oxygen atoms as interstitials, and/or ii) nitrification of zinc interstitials (Zni) under moderate temperatures [31]. The newly formed Zn-N phase and/or regenerated oxygen interstitials probably leads the band gap of ZnO NR structures to slightly higher values. Therefore, the structures exposed to nitrogen plasma for 15 min duration consist of better crystallinity as well as optical quality and thus, these structures are adopted for the development of p-n junction diodes.

3.3 Devices properties

The untreated and 15 min plasma treated ZnO NRs grown on ITO substrates were coated with PEDOT:PSS using spin coater with a thickness of ~4 μm thick and allowed at room temperature for a few days. The schematic diagram and cross-section FESEM images of the device with the configuration of Glass/ITO/ZnO seed-layer/ZnO NRs/PEDOT:PSS are shown in Figure 7. Finally, a thin gold (Au) layer with a thickness of 100 nm was deposited by e-beam evaporation and the current (I) - voltage (V) characteristics were measured at room temperature (Figure 8). Here, the devices prepared with untreated (D1) and treated (D2) ZnO NRs exhibited slightly similar p-n junction diode characteristics between the applied bias voltages of ± 5 V. Comparatively D2 device exhibited better I-V properties than that of D1 device [32]. For example, the maximum current through D2 device at the forward bias voltage of 5 V is about 32.3 μA, whereas in D1 device the observed maximum current is nearly 10 times low (~3.13 μA). The knee voltage (Vd) of D1 is higher (4.16 V) than that of D2 device (3.3 V) and the rectification factor (If/Ir) at the bias voltage of 5 V is about 78 and 408. Further, the series resistance of D1 and D2 devices is found to be 3.4 × 105 and 5.3 × 104 Ω, respectively.

Figure 7
figure 7

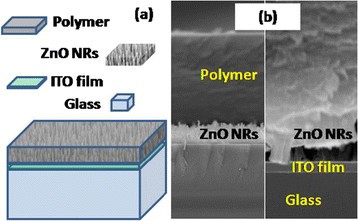

(a) Schematic diagram and (b) cross-section FESEM images of ZnO NRs/polymer based p-n junction diode.

Full size image
Figure 8
figure 8

Current versus voltage plots of (a) untreated (D1) and (b) treated ZnO NRs (D2) based p-n junction diodes.

Full size image

From ln(I) versus V plots (Figure 9), the diode quality factor (n) of the devices was calculated using the formula: n = (q/kT)(ΔV/Δln(I)), where q-charge of electron, k-Boltzmann constant and T-absolute temperature. At lower voltages (<1 V) the conduction mechanism in D1 as well as D2 devices (R1 region) dominated by diffusion of carriers since the observed diode quality factors (n) is greater than 2 [33]. Above this voltage, D1 exhibited only one region (R2), whereas D2 device exhibited three more regions (R2, R3 and R4). The ideality factor of these devices particularly at higher voltages (>2 V) is too high probably due to the presence of defects states (or space-charges) on the surface of ZnO NRs. This reveals that at higher voltages, the conduction through the devices strongly dominated by the space-charge limited current and/or its combination with series resistance. However, the space-charge limited current region (R2) for D2 device is low as compared to D1 device. A decrease in density of surface defects states in plasma treated ZnO NRs probably the cause for better device performance than the device developed with untreated ZnO NRs.

Figure 9
figure 9

ln(I) versus voltage plots of p-n junctions diodes.

Full size image

4. Conclusions

The ZnO NRs were synthesized using simple and low temperature chemical solution method on ZnO seeded glass and ITO substrates. The as-grown structures were exposed to high intensity nitrogen plasma and studied their physical properties. Finally, the p-n junction diodes were fabricated using as-grown and 15 min plasma treated ZnO NRs and studied the device performance. The observed results are summarized below.

The as-grown ZnO NRs have hexagonal crystal structure and are preferentially oriented along <001 > direction. Upon exposure to nitrogen plasma, the morphology and crystal structure of ZnO NRs remained as same upto the exposure time of 15 min. The ZnO NRs exposed to plasma for 15 min duration have better crystalline and optical quality than the as-deposited and other treated nanostructures. The devices fabricated with 15 min treated ZnO NRs exhibited excellent p-n junction diode properties at room temperature. Therefore, the overall observations emphasized that the quality of ZnO NRs grown even on flexible substrates can be improved to a large extent without disturbing their morphology as well as crystal structure by treating them under nitrogen plasma for the duration of 15 min.
