Facile synthesis, characterization and enhanced catalytic reduction of 4-nitrophenol using NaBH4 by undoped and Sm3+, Gd3+, Hf3+ doped La2O3 nanoparticles
Nano Convergencevolume 6, Article number: 12 (2019)
This work focuses on the synthesis of undoped and doped lanthanum oxide nanoparticles (La2O3 NPs) by a simple co-precipitation method for the catalytic reduction of 4-nitrophenol (4-NP) using NaBH4 as a reducing agent. Their optical properties, morphologies, structure, chemical compositions and electronic properties were carefully characterized by XRD, FTIR, SEM, TEM, PL and UV–visible absorption spectroscopy. The SEM and TEM images showed various shape morphologies and sizes of the particles. The XRD pattern revealed a polycrystalline nature with the hexagonal structure of the La2O3 NPs. The synthesized undoped and doped La2O3 NPs were also employed as catalysts for the reduction of 4-nitrophenol, it shows that the doped (Sm3+, Gd3+ and Hf3+) La2O3 NPs provided better catalytic activity than the undoped La2O3 NPs. Moreover, Hf3+ doped La2O3 NPs exhibited an enhanced catalytic activity for the reduction of 4-nitrophenol to 4-aminophenol in 90 min. The catalytic conversion was studied by UV–vis spectroscopy with high reduction rate (k = 2.048 min−1). The applications of the present study may utilize in the removal of toxic pollutants in a cleaning of environmental pollution as well as in industrial applications.
In the past few years, due to the concerns about environmental pollution and potential exhaustion possibility of fossil fuels, more and more attention has been paid to the development of green and renewed energy resources. Therefore, the research on materials is necessary for the prevention of environmental pollution by the degradation or conversion of toxic compounds (dyes, pesticides and chlorinated phenols such as 4-nitrophenol) into the non-polluting compounds. 4-Nitrophenol (4-NP) has been wildly used in several applications such as pharmaceutical, dyeing agent, plastics, pesticides and anti-corrosion lubricant [1,2,3]. This compound has been identified as one of the most hazardous and toxic pollutants generated mainly from agricultural and industrial sources [4, 5]. Therefore, several methods have been introduced to remove 4-NP from wastewater with various advantages and limitations such as adsorption , microbial degradation , electrocoagulation  and reduction . Moreover, apart from the industrial and environmental viewpoints, reduction of 4-nitrophenol is considered as a model reaction for catalytic study [2, 10]. It is well-known that without a catalyst, the reduction of- 4-NP is extremely slow. Therefore, many investigators have paid attention to the development of catalysts for the reduction reaction of 4-NP.
The synthesis, production and manipulation of materials on the nanoscale are currently one of the favorable areas of research which also attracts the industrialists for designing and fabricating new functional materials with novel special properties [11, 12]. Rare earth elements are attractive materials for industry and play an important role in a number of current technologies as active components. La2O3 is a rare earth metal oxide, which has a band gap of 4.3 eV and the lowest lattice energy with the high electric constant. La2O3 ultrafine powders have a lot of attractive properties for industrial and technological applications. The electronic and magnetic properties of La2O3 differ considerably from those of the other oxides in the series because La3+ is the only trivalent rare earth cation that lacks 4f electrons and has the simple Xenon electronic structure. Because of their unique electronic configuration [4f electrons] lanthanides have been applied in various fields; also these lanthanide-based materials have attractive and interesting magnetic , optical [14, 15], electrical and therapeutic  properties.
Among the lanthanides, lanthanum has been extensively examined for its unique properties . The lanthanum based materials have been synthesized in various compositions such as La(OH)3 , LaF3 , La2(CO3)3 , LaPO4 , LaBO3 , LaOF , La2Sn2O7 , La2O3  nanoparticles. Although many methods have been developed for the synthesis of lanthanum nanostructures including hydrothermal , solvothermal , microemulsion or reverse micelles , sol–gel , laser deposition  and other chemical and physical methods; but some of these methods are affected by long reaction time, high temperature, high pressure, expensive surface materials and so on. Based on electronic, optical, and chemical characteristics arising from lanthanides 4f electrons, lanthanide compounds have been widely used as high-performance luminescent devices, upconversion materials, catalysts, and time-resolved fluorescence (TRF) labels for biological detection [30, 31]. In particular, recently La2O3 NPs were used in catalytic applications as a promising catalyst for the catalytic oxidative cracking of n-propane , ethanol oxidation , and degradation of rhodamine B under visible light irradiation . From the inspiration of these studies, we have investigated the reduction of 4-NP to 4-AP using La2O3 NPs and NaBH4 as a reducing agent.
In this work, we report the undoped and doped La2O3 NPs were successfully prepared from the reaction of lanthanum nitrate and urea by a simple co-precipitation method. The prepared products were characterized by XRD, SEM, TEM, UV–visible absorption spectroscopy, PL and FT-IR spectroscopy. The effect of La2O3 NPs in the presence and absence of dopants has been investigated in the catalytic reduction of 4-NP to 4-AP using NaBH4 as a reducing agent. It was found that the presence of dopants significantly improved the catalytic performance of La2O3 NPs in the 4-NP conversion catalyzed by sodium borohydride (NaBH4) as a strong reducing agent than the undoped La2O3 NPs. The application of the present work may utilize in the removal of industrial pollutants for the prevention of environmental pollution.
Materials and methods
All the materials were obtained from commercial suppliers and were used without further purification. Lanthanum nitrate hexahydrate (La(NO3)3·6H2O), carbamide (CH4N2O) and NaBH4 were purchased from Merck Chemicals, India. Samarium nitrate, gadolinium nitrate hexahydrate and hafnium nitrate were purchased from S D Fine Chemicals, India. The double distilled water used as a solvent for the preparation of stock solutions.
Synthesis of undoped La2O3 nanoparticles
The undoped La2O3 NPs has been synthesized by a simple co-precipitation method  using lanthanum nitrate and urea as starting materials. In a typical synthesis, 0.05 M of lanthanum nitrate and 0.05 M of urea were dissolved in 100 ml of double distilled water. The precursor solution was transferred into a round bottom flask and maintained at a constant temperature of 60 °C for 12 h. Then, the mixture was stirred for 30 min under the magnetic stirring for uniform distribution and formation of nanoparticles. The final products were collected by ultra-centrifugation and washed the obtained precipitate several times with ethanol and double distilled water for removal of unreacted precursors. Finally, the prepared La2O3 NPs were calcinated at 500 °C for 1 h and purified samples were further used in applications.
Synthesis of Sm3+, Gd3+ and Hf3+ doped La2O3 nanoparticles
The Sm3+, Gd3+ and Hf3+ doped La2O3 NPs have been synthesized by a simple co-precipitation method . In a typical synthesis, 0.05 M of lanthanum nitrate hexahydrate, 0.001 M metal salts (samarium nitrate for Sm3+; gadolinium nitrate hexahydrate for Gd3+ and hafnium nitrate for Hf3+) and appropriate concentration of urea were dissolved in 100 ml double distilled water. The precursor solution was transferred into a round bottom flask and maintained at a constant temperature of 60 °C for 12 h. Then, the mixture was stirred for 30 min under the magnetic stirring for uniform distribution and formation of nanoparticles. The final products were collected by ultra-centrifugation and washed the obtained precipitate several times with ethanol and double distilled water for removal of unreacted precursors. Finally, the as-prepared Sm3+, Gd3+ and Hf3+ doped La2O3 NPs were calcinated at 500 °C for 1 h. The collected samples were characterized by various physicochemical techniques for the confirmation of La2O3 NPs.
The synthesized undoped and doped (Sm3+, Gd3+ and Hf3+) La2O3 NPs, were analyzed by various physicochemical techniques. The UV–vis spectroscopic measurements were made at room temperature using a Shimadzu UV-3600 model double beam UV–vis spectrophotometer in the range of wavelength 200–800 nm. Fourier transform infrared (FTIR) spectra of La2O3 NPs were recorded in KBr pellets using an FTIR spectrophotometer (Bruker Optics, Germany, Model no. Tensor 27) in the range of wavenumber 400–4000 cm−1. X-ray diffraction (XRD) measurement was carried out on X’pert Pro X-ray diffractometer (Panalytical B.V., The Netherlands) operating at 40 kV and a current of 30 mA at a scan rate of 0.388 min−1. The morphology of the doped and undoped La2O3 NPs was characterized by scanning electron microscopy (SEM, ZEISS EVO18, 15 kV). The size distribution and crystallinity of the synthesized samples were obtained by transmission electron microscopy (TEM) measurement, casting NPs dispersion on carbon-coated copper grids and allowing drying at room temperature. TEM measurements were done on Tecnai G2 FEI F12 operated at an accelerating voltage of 200 kV.
Catalytic reduction of 4-nitrophenol
The catalytic reduction process of 4-NP was monitored by UV–vis absorption spectra. In a typical process, 0.5 ml of 0.15 M freshly prepared NaBH4 solution was added to a solution containing 0.05 ml of 0.005 M 4-NP and 2.25 ml of deionized water. At this stage, the 4-NP was converted into 4-nitrophenolate anion. After that, the 10 mg of catalyst (undoped and doped La2O3 NPs) was added and the reaction was spectrophotometrically monitored at different time intervals. A gradual change of the solution color from bright yellow to colorless was observed during the reaction. After reaction, the catalyst was recovered by precipitation/centrifugation. The absorption spectra were recorded within the wavelength range of 250–500 nm. The rate constants of the reduction reaction were calculated by measuring the peak intensity evolution every minute at wavelengths of 400 nm for 4-NP. The investigation of catalytic conversion was also studied using undoped, Sm3+, Gd3+ and Hf3+ doped La2O3 NPs against the reaction time.
Results and discussion
UV–vis absorption analysis

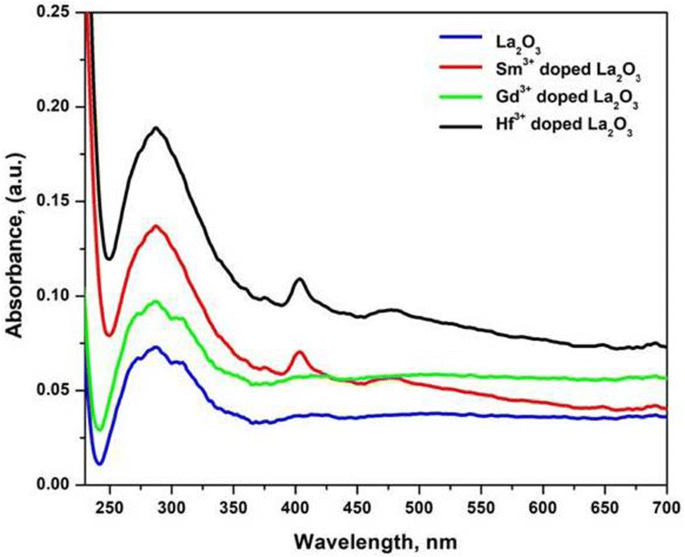

UV–visible absorption measurement is one of the most important methods to reveal the optical properties of synthesized La2O3 NPs samples. The optical absorbance spectrum of La2O3 NPs for the wavelength length range (200–700 nm) was recorded using a UV–visible spectrophotometer. Figure 1 shows the UV absorption spectrum of as-prepared undoped and doped (Sm3+, Gd3+ and Hf3+) La2O3 NPs prepared by a simple co-precipitation method. The maximum absorption of undoped, Sm3+, Gd3+ and Hf3+ doped La2O3 NPs occurred at 250–310 nm. The doped La2O3 NPs showed high intensity and a blue shift from the undoped La2O3 NPs due to the quantum confinement. The bandgap values are calculated from the Planks equation: Eg = 1260/λ, where Eg is the band gap and λ is the wavelength of the sample. The approximate band gap values of the prepared undoped, Sm3+, Gd3+ and Hf3+ doped La2O3 NPs samples as calculated from the absorption spectrum are 5.24, 5.36, 5.51, and 5.74 eV, respectively. It is confirmed that the doped La2O3 NPs exhibited higher band gap and smaller in size due to the quantum confinement effect .

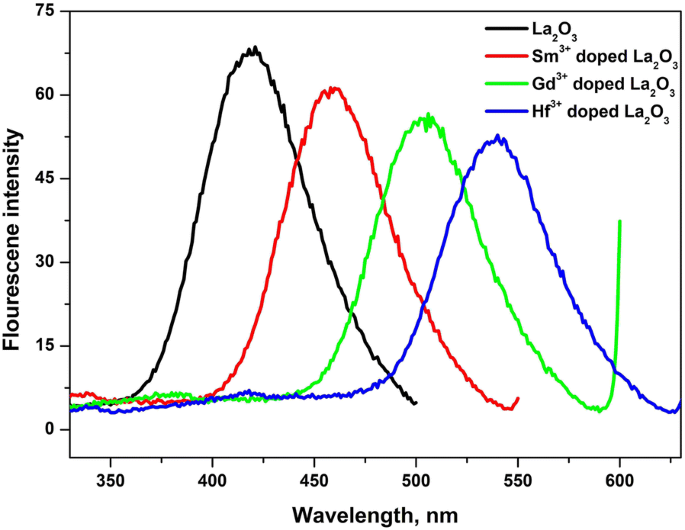

The photoluminescence (PL) is one of the significant techniques which reach more information regarding defects and impurities on the energy states inside oxide film. PL measurements were performed in the wavelength ranging from 200 to 900 nm using 350 nm as excitation wavelength. Figure 2 shows that PL spectra of undoped and Sm3+, Gd3+ and Hf3+ doped La2O3 at room temperature. It exhibits the identical emission peaks at 435, 473, 511 and 545 nm of undoped and Sm3+, Gd3+ and Hf3+ doped La2O3 respectively. All these emissions are attributed to deep levels and states localized in the band gap of La2O3 . Particularly, green emission peaks were observed around 472.5, 509.40 and 544.35 nm. This emission has been attributed to singly ionized oxygen vacancies in La2O3, and the emission results from the radioactive recombination of a photogenerated hole with an electron occupying an oxygen vacancy, which is commonly referred to as the green luminescence mechanism of an important precursor to lanthanum oxide.
The FTIR spectra have been recorded for the as-prepared undoped and doped (Sm3+, Gd3+ and Hf3+) La2O3 samples in the wave number range from 500 to 4000 cm−1. The samples have been admixed with KBr, thoroughly mixed and pelletized by pressing under sufficient pressure, before FTIR analysis. From all FTIR spectra, the frequency of various functional groups present in the prepared sample can be predicted with the position of the vibration peaks. The FTIR spectra of doped and undoped La2O3 NPs exhibited similar absorption peaks but the change in the position of wavenumbers due to the interaction of different metal bonds in the doped samples. The broad absorption bands at 3600–3400 cm−1 are assigned to O–H stretching vibration of water molecules, it shows the presence of moisture in the sample. A sharp peak was observed at about 1488 cm−1 which can be attributed to stretching vibration of C–C and medium absorption bands at 1302 and 1077 cm−1 are possibly due to stretching vibrations of C=O bonding and it may appear from the absorption of atmospheric CO2. The strong vibration band observed at 845 cm−1 is ascribed to the stretching vibrations of ions in the La2O3 NPs. The medium to strong absorption bands at 643 cm−1 was because of La–O stretching and it may existence of the presence of La2O3. The strong and sharp peaks in FT-IR result reveals that crystalline La2O3 is obtained and it is well in agreement with the result of XRD (Fig. 3).
The crystal structure of the undoped and doped (Sm3+, Gd3+ and Hf3+) La2O3 NPs were characterized by XRD in the diffraction angle (2θ) range between 10° and 80° and shown in Fig. 4. It displays the crystalline structure and phase purity of the as-prepared La2O3 NPs; it can be concluded from the appearance of more than one prominent peak that the prepared La2O3 samples are polycrystalline in nature. The obtained XRD characteristics peaks shows that the maximum intensity peak was observed at (0 0 1), (1 0 0), (0 0 2), (1 0 1), (1 0 2), (1 1 0), (1 0 3), (2 0 0), (1 1 2) and (2 0 2) crystal planes at 16.1°, 26.2°, 29.7°, 30.4°, 39.8°, 46.8°, 52.8°, 54.1°, 56.2° and 63.1° diffraction angles, respectively. The well-extended intensity peaks indicate the polycrystalline nature and size reduction of La2O3 NPs. All diffraction peaks can be indexed to the hexagonal structure (space group P3m1 with cell constant a = 3.9381 Å, b = 3.9381 Å and c = 6.1361 Å, JCPDS No.: 50-0602) and comparable with an earlier report . The broadening of the peaks indicated that the particles were of nanometer scale. The crystal structures of the samples all crystallized in pure hexagonal La2O3 phase and no additional diffraction peaks were formed, indicating that the Sm3+, Gd3+, and Hf3+ ions are efficiently dissolved in the La2O3 host lattice by replacing the La3+. The average crystallite sizes of the synthesized doped and undoped La2O3 NPs were calculated from the XRD patterns using Debye–Scherrer formula:
where K is a constant (0.89), λ is the wavelength of X-ray (λ = 1.5418 A0), θ is the diffraction angle for the peak and β is full width at half maximum (FWHM). The observed sizes were 22 nm, 15 nm, 12 nm and 11 nm for as-prepared undoped, Sm3+, Gd3+ and Hf3+ doped La2O3 NPs, respectively. From the tiny size of the samples may give better catalytic activities than the bulk size of the samples. It suggested that the doped La2O3 NPs exhibited better catalytic activity than the undoped La2O3 NPs.

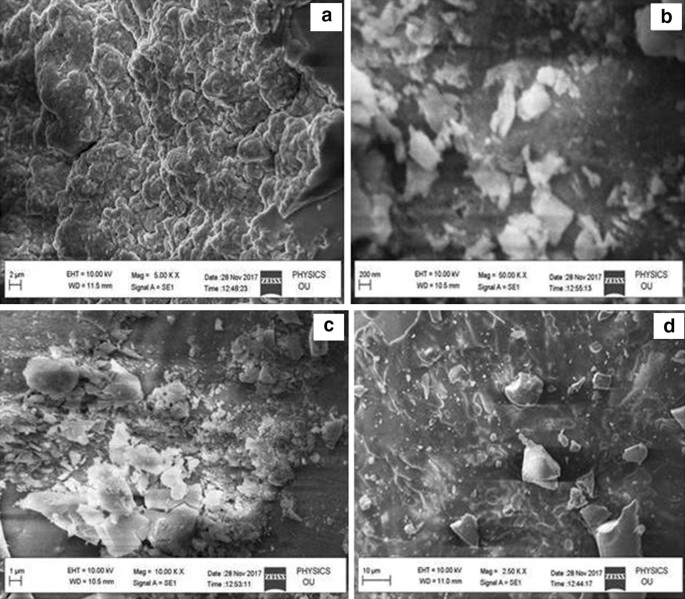

The microstructure and morphology of the synthesized undoped and doped (Sm3+, Gd3+ and Hf3+) La2O3 NPs were observed using SEM and TEM with different magnifications and shown in Figs. 5a–d and 6a–d. The SEM images reveal that different morphologies of La2O3 samples and sizes are about with micrometer range. Apart from this, some particle agglomerations were also observed in the SEM images due to the presence of particle agglomerations, an exact value of particle size was not easy to calculate. To get further more evidence on structural information of the synthesized La2O3 NPs, TEM analysis with selected-area electron diffraction (SAED) was carried out. The TEM analysis shows the agglomerated sample in the nanometer range. The TEM micrographs of the synthesized doped (Sm3+, Gd3+ and Hf3+) La2O3 NPs using co-precipitation method were shown in Fig. 6a–c and the corresponding SAED pattern was shown in Fig. 6d. The TEM images reveal that the surfaces of the samples are very rough. It can be further observed that the samples consist of many even smaller nanoparticles with the size of 10–30 nm. In addition, the existence of detectable diffraction rings in the selected area electron diffraction (SAED) pattern of the La2O3 NPs, further reveal the formation of polycrystalline products. These results further confirm the formation of the La2O3 NPs.
Catalytic reduction of 4-nitrophenol
The catalytic activity of the as-prepared undoped and doped La2O3 NPs was confirmed through reduction of 4-nitrophenol (4-NP) in the presence of NaBH4 as a reducing agent. A comparison study of catalytic activities between undoped and doped (Sm3+, Gd3+ and Hf3+) La2O3 NPs for reduction of 4-NP was also investigated. Firstly, the 4-NP reduction has been carried out without a catalyst, it gives approximately 9% of conversion from 4-NP to 4-AP. After the addition of undoped La2O3 NPs as a catalyst, the reduction of 4-NP started immediately, and the color of the reaction solution became lighter, resulted in approximately 98% conversion. The catalytic reduction reaction of 4-NP using undoped and doped La2O3 NPs was studied by UV–vis spectrophotometrically and presented in Fig. 7. At the initial time, (t = 0 min; A0), the UV–vis spectra of 4-NP were characterized by the presence of a sharp band at 400 nm, owing to the formation of the nitrophenolate ion. Addition of La2O3 NPs to the reaction medium accounted for the rapid decline in the absorption intensity at 400 nm simultaneously accompanied by the appearance of a relatively wider band at 298 nm indicating the formation of 4-AP [2, 39] and 4-NP was completely reduced 4-AP within the 30 min of the reaction. The results indicate different magnitude for decreasing of absorbance at 400 nm obtained by each kind of catalyst with progressed time. The faster diminish of this peak, i.e. the reduction of 4-NP, revealed that one catalyst shows better catalytic activity than the others. Similarly, we investigated the catalytic activity of doped (Sm3+, Gd3+ and Hf3+) La2O3 NPs under similar conditions. Among the three samples, Hf3+ doped La2O3 NPs exhibited efficient catalytic activity for the reduction of 4-NP due to it has a small size of the particles and high surface area.
The conversion percentage (α) of 4-NP to 4-AP was calculated by the formula:
The conversion percentage of 4-NP to 4-AP was calculated from the Fig. 7. It has been found that the reduction of 4-NP to 4-AP by NaBH4 in the presence of Hf3+ doped La2O3 NPs as a catalyst than the other samples.
The proposed mechanism of 4-nitrophenol reduction
A mechanism was proposed for the reduction of 4-NP to 4-AP using undoped and doped La2O3 NPs, which is exhibit excellent catalytic properties owing to the high rate of surface adsorption and high surface area to volume ratio. This hypothesis was subjected to test in two parallel studies. In the first approach, 4-NP was reduced to 4-AP in the presence of La2O3 NPs. Addition of NaBH4 to the reaction medium causes deprotonation of 4-NP resulting in the formation of intermediate nitrophenolate ion [2, 40]. Subsequently added NaBH4 reduces nitrophenolate ion to form 4-AP. The presence of NaBH4 favors the formation of 4-AP on account of the decrease in free energy (E0 for 4-NP/4-AP = − 0.76 V). After the addition of NaBH4, the La2O3 NPs start the catalytic reduction by relaying electrons from the donor NaBH4 to the acceptor 4-NP right after the adsorption of both onto the catalyst surface. The excess NaBH4 used, increases the pH of the reaction medium and thus retard the degradation of borohydride ions. The reduction of oxygen proceeds much faster than the nitrophenols present in the system. The reduction reaction of 4-NP only starts after all the oxygen in the system has reacted. The evolution of small bubbles of the hydrogen gas surrounding the catalyst particles remain well distributed in the reaction mixture during the course of the reaction and offer a favorable condition for a smooth reaction to occur. As NaBH4 is present in large excess, its consumption for the reduction of oxygen did not alter its concentration notably. However, the viability of reaction decreases as a result of the large potential difference between donor (NaBH4) and acceptor molecules (nitrophenolate ion) accounting for high kinetic energy barrier.
Evaluation of rate constants
The reduction of 4-NP on nanoparticles has been demonstrated to follow the Langmuir–Hinshelwood mechanism involving the surface adsorption of the reducing agent and the nitrophenol substrate on the catalyst [2, 41]. In order to compare the catalytic activity of undoped and doped La2O3 NPs, a linear relationship between normalized concentration (ln A0/At) and reaction time was derived with the synthesized sample as shown in Fig. 8. The linear plot of (ln A0/At) vs. time, obeys the pseudo-first-order kinetic model (Fig. 8) where A0 and At are the initial and final concentration at time t of 4-nitrophenolate respectively. The reaction rate constant k was found to be 1.854 × 10−2 s−1 for undoped La2O3 NPs, 2.657 × 10−2 s−1 for Sm3+ doped La2O3 NPs, 3.614 × 10−2 s−1 for Gd3+ doped La2O3 NPs and 4.122 × 10−2 s−1 for Hf3+ doped La2O3 NPs. It was observed that the Hf3+ doped La2O3 NPs sample exhibited the preeminent catalytic activity among the other doped and undoped La2O3 NPs.
Catalytic conversion of synthesized undoped and doped La2O3 NPs

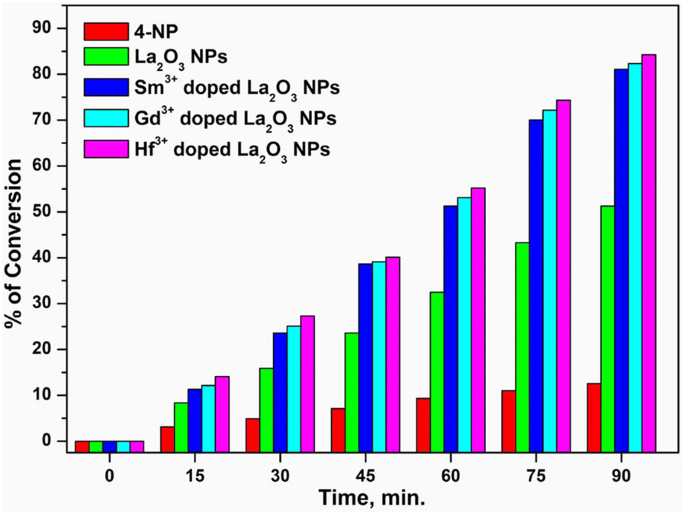

The estimation of catalytic conversion of 4-NP to 4-AP using the synthesized nanocatalysts is an important aspect to be strongly considered in practical heterogeneous catalytic applications. The synthesized doped and undoped La2O3 NPs were used as catalysts for the reduction of 4-NP and compared their catalytic conversion. After completion of the catalytic reactions, the percentage of conversion of the synthesized samples was measured and drawn a plot against the reaction time and shown in Fig. 9. The kinetic constant of the first run was taken as a control and the reaction conditions were kept constant for successive cycles. It was explored that the Hf3+ doped La2O3 NPs exhibited higher catalytic conversion in 90 min of reaction time than the other doped and undoped La2O3 NPs.
In this study, we have successfully demonstrated the synthesis of undoped and doped La2O3 NPs under a facile co-precipitation method. The morphological, structural and optical properties of as-synthesized La2O3 NPs were characterized using TEM, SEM, XRD, FTIR, UV–vis, and PL spectroscopy. The XRD patterns indicate that the well-crystallized and hexagonal phase La2O3 nanocrystals can be easily obtained under the current synthetic conditions. The SEM and TEM analysis revealed the size of the NPs are in the range of 30 nm with different shapes due to some agglomeration. It also demonstrated that the synthesized undoped and doped La2O3 NPs as nanocatalysts strongly influent catalytic performance for 4-NP reduction using NaBH4 as a reducing agent. The catalytic activities of Hf3+ doped La2O3 NPs are higher than the Sm3+, Gd3+ doped and undoped La2O3 NPs due to the smaller size and high surface area. The well dispersed doped La2O3 NPs having the size 10–30 nm were exhibited the best catalytic activity for reduction of 4-NP. Our results demonstrate that the doped La2O3 NPs can be a promising material of choice for various practical applications in catalysis and industrial applications.
