On the switching dynamics of epitaxial ferroelectric CeO2–HfO2 thin film capacitors

Nano Convergence volume 9, Article number: 56 (2022) Cite this article

Abstract

Epitaxial layers of ferroelectric orthorhombic HfO2 are frequently investigated as model systems for industrially more relevant polycrystalline films. The recent success in stabilizing the orthorhombic phase in the solid-solution cerium oxide – hafnium oxide system allows detailed investigations of external influences during fabrication. This report analyzes the ferroelectric properties of two thin film capacitors, which were post-deposition annealed in N2 and O2 atmospheres to achieve the orthorhombic phase after room temperature deposition. The samples, which exhibit very similar constituent phase, appear identical in conventional polarization-field hysteresis measurements. However, a significant switching speed difference is observed in pristine devices. Continued field cycling reduces the difference. Deeper analysis of switching transients based on the Nucleation Limited Switching model suggests that the O2 heat treatment atmosphere results in an altered oxygen vacancy profile, which is reverted during ferroelectric cycling.

1 Introduction

Thin films of HfO2 have received widespread attention in research and industry since their adoption as high-k gate dielectric [1]. Various properties of the material have been discovered which have opened new application options, such as flash memory [2], dynamic random access memories, DRAM [3] and memristive functions [4, 5].

In 2011, ferroelectricity in Si-doped HfO2 thin films was reported [6] and in 2015 the first successful epitaxial deposition of Y-doped HfO2 was published [7]. Since then, significant research efforts have been ongoing, both on the technological side as well as the fundamental understanding. HfO2 thin films show pronounced polymorphism between the monoclinic (m-), tetragonal (t-), cubic (c-), rhombohedral (r-) and orthorhombic (o-) phases [8,9,10,11,12,13,14]. A major concern in ferroelectric research is therefore the stabilization of the appropriate phase, which is typically the noncentro-symmetric o-phase Pca21, although recent reports show ferroelectric properties in r-phase as well [13, 15]. Various approaches have been studied such as specific deposition control [16, 17] targeted heat treatment [18,19,20] and doping with elements [21,22,23], among others. A typical approach to study the fundamental properties of ferroelectricity in HfO2 is to eliminate the influence of microstructure as much as possible, i.e. epitaxial growth. Substrate selection and lattice matched bottom electrodes are essential in this approach. Combined with careful dopant control and targeted heat treatment, epitaxial thin films with high desired phase contents are obtained. Such samples are ideal candidates to study effects which are otherwise inaccessible because of possible phase transformations during cycling or multi-grain influences. An open question for HfO2 ferroelectrics is the effect of oxygen vacancy concentration on the switching dynamics. The approach of this study is to isolate the effect of oxygen vacancy concentration from the phase purity and orientation purity by utilizing epitaxially grown films on lattice matched bottom electrodes.

Therefore, in the present study, the influence of gas atmosphere during the commonly performed heat treatment step with continued field cycling on the ferroelectric switching speed is investigated. For this purpose, the recently reported solid-solution epitaxial system of (111)-oriented 17% CeO2–83% HfO2, which shows the highest fraction of o-phase in the composition range, is chosen as model system [24]. Because of the (111) In2O3-SnO2 (ITO) bottom electrode and the precise doping, the o-phase is predominant irrespective of the employed gas atmosphere during the heat treatment. The results of this letter reveal that the heat treatment gas atmosphere has a significant effect on the switching speed in pristine samples in this novel material system. The influence diminishes during cycling of the capacitors. Because of the epitaxial nature of the films, we propose that generated and redistributed defects are the leading cause for the switching speed change. It is found that the rate limiting step transitions from mainly domain wall motion limited to nucleation limited.

2 Experimental methods

The sample fabrication is described in detail in the recent report on the composition dependence of the (Hf1 − xCex)O2 system [24]. In the scope of this study, only the x = 0.17 samples are considered since they provided the highest o-phase fraction after deposition. Importantly, the post-deposition annealing conditions were identical to [24], i.e. rapid thermal annealing before top electrode fabrication at 1000 °C for 10 min with heating and cooling rate of 25 °C/s and 8 °C/s, respectively. Atmospheric oxygen and nitrogen were employed through constant gas flows of 100 cm3/min and 100 cm3/min, respectively. The final stack of the samples is (111)YSZ// 50 nm-(111)ITO// 20 nm-Hf0.83Ce0.17O2 // 100 nm-Pt. The ferroelectric film thickness of 20 nm is required for high signal-to-noise ratio during phase identification using Reciprocal Space Mapping as described in our previous report. The properties of thinner layers are currently under investigation. The measured capacitors in this study were all 50 μm in diameter.

For electrical testing, a ferroelectric test setup (Toyo FCE-1) with a Toyo Corporation HVA-300 module was employed. This setup allows to measure current transients with a sampling rate of 250 million data points per second.

3 Results and discussion

3.1 Results

Figure 1 shows the polarization (P)–electric field (E) loops measured using bipolar triangular pulses of both the N2 annealed (a) and the O2 annealed (b) samples. P–E hysteresis were recorded at 10 kHz frequency and are average of 3 cycles each. Both samples show clear ferroelectric property in the pristine state, without wake-up process. This feature is different from reported polycrystalline samples [25,26,27], but is frequently observed in epitaxial films [13, 28,29,30] and may be due to the high phase and orientation purity of lattice-matched epitaxial films. The coercive field, Ec, is nearly symmetrical for up and down polarization switching at approximately |2.5 MV/cm|. While polycrystalline samples typically show lower Ec, it is a common value for epitaxial films in this thickness range [9]. The investigation on the effect of thickness scaling in this dopant system is ongoing. Figure 1c and d shows the two-staged cycling experiment of each sample. Polarization cycles were realized as 100 kHz rectangular signals of ± 6 MV/cm. Coercive fields of the P-E measurements are plotted as grey closed symbols, while the values of remanent polarization Pr are depicted as open orange symbols. Selected values of the coercive field for positive polarization reversal are highlighted as star symbols. The according P-E loops are plotted in Fig. 1a and b. The lack of wake-up in these samples is visible, as Pr remains high throughout the measurement. A slight asymmetry in remanent polarization is observed, which may be related to the asymmetric electrodes of the stack.

Fig. 1
figure 1

a, b Polarization-field hysteresis loops and c, d cycling experiment for the sample annealed in N2 atmosphere and sample annealed in O2 atmosphere, respectively. Coercive fields are depicted as grey closed symbols, remanent polarizations as orange open symbols. Coercive fields at measured cycling stages are indicated as star symbols

Full size image

Both samples showed similar endurance to around 106 cycles at 100 kHz frequency. The subsequent failure was not preceded by fatigue symptoms such as diminishing Pr, but appeared spontaneously. In contrast, Pr seems to increase during the measurement. However, the negative slope of P as the field approaches the maximum/minimum indicates an increase in leakage current, which artificially increases the value of Pr. The following prepole-P-U analysis (See Fig. 2) revealed that the value of Pr actually remains nearly constant between the pristine sample and after 104 cycles.

Fig. 2
figure 2

Prepole-Positive-Up measurement scheme

Full size image

To study the switching kinetics of the two samples annealed under N2 and O2 atmosphere, the measurement procedure shown in Fig. 2 is employed. It consists of three distinct parts. During the prepole signal, the device is subjected to a 50 µs long triangular voltage signal to -6 MV/cm. The following positive (P) signal is of 10 µs duration and variable field. After a 5 µs delay, the same signal shape is applied once more as the up (U) signal. Similar to the PUND sequence [31], this measurement technique allows subtracting the leakage current and the dielectric charging component, recorded during the U pulse, from the P pulse, which also contains the possible polarization reversal current. Hence, by integration of the subtracted current signal the polarization charge density

$${\varDelta P}_{sw} (t)=\int_{0}^{10\mu s} (I_P-I_U) dt$$
(1)

can be calculated. To exclude the influence of the rising voltage, only currents after 90% of applied electric field (Eapp) is reached are considered. The switching time tsw is defined as the time for reaching 50% of the achievable polarization for the given field. Figure 3a and b show tsw versus Eapp at different cycling stages for the samples annealed under N2 and O2 atmosphere, respectively. Both samples show a clear dependence of tsw on Eapp as expected. Furthermore, the switching speed appears to be dependent on the cycling stage for both samples. The increase in tsw is more significant for the sample annealed in O2, which shows faster switching than the N2 annealed sample in the pristine state.

Fig. 3
figure 3

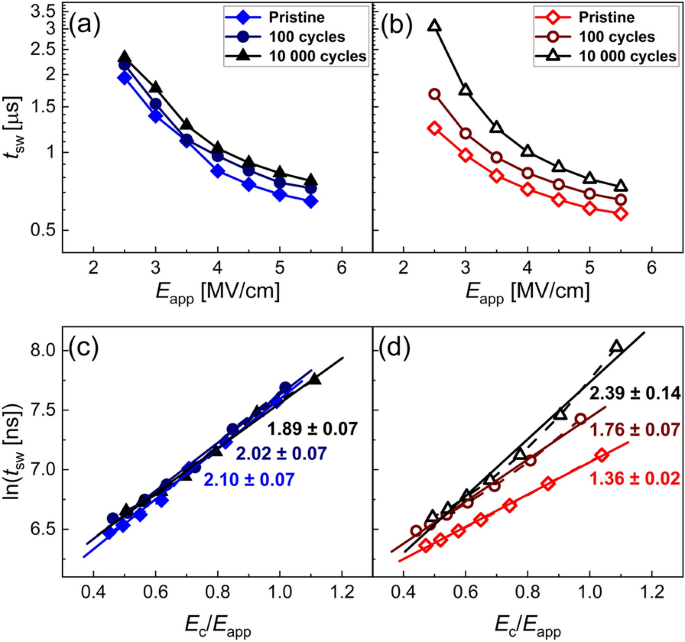

a and b: Calculated switching times from the measured polarization transient curves for different cycling stages of the sample treated in N2 and O2, respectively. c and d: Extraction of activation field versus coercive field ratio from the modified Merz’ law of Eq. (3) of the sample treated in N2 and O2, respectively

Full size image

As seen in Fig. 1, Ec changes during the cycling. The comparison of switching transients should therefore be considered with respect to Eapp normalized by Ec, i.e. the fraction (Eapp / Ec) at the different cycling stages. Merz’ law [32] is a good descriptive model for the tsw versus Eapp relation. It can be modified to incorporate the consideration of non-constant Ec:

$$t_{{sw}} = \tau _{0} {\text{ exp}}\left( {\frac{{E_{A} }}{{E_{{app}} }}} \right) = \tau _{0} {\text{ exp}}\left( {\frac{{E_{A} }}{{E_{c} }} \cdot \frac{{E_{c} }}{{E_{{app}} }}} \right)$$
(2)

and rewritten into the linear form

$$\text{ln}\left({t}_{sw}\right)=\text{ln}\left({\tau }_{0}\right)+\frac{{E}_{A}}{{E}_{c}}\cdot \frac{{E}_{c}}{{E}_{app}}$$
(3)

Here, EA is the activation energy for polarization reversal and τ0 the theoretical switching time for infinitely strong fields.

Figure 3c and d show the Merz’ law fits for the sample annealed under N2 and O2 atmosphere, respectively. The solid lines show linear least-squares fits to the data points. Inset values are the fit slopes, (EA/Ec). The slope and position of the N2 annealed sample remains constant for the cycling stages. The slope of the O2 annealed sample shows significant shift towards higher values of (EA/Ec) for the cycling stages, indicating internal changes in the film.

The differences in switching kinetics are further examined by comparing the recorded polarization transients to common switching models. This approach has been employed before for HfO2 ferroelectric systems [33], although in most publications discrete probing pulses are used [34,35,36]. Regarding the appropriate model, a wide variety has been proposed in literature, including the Kolgomorov-Avrami-Ishibashi (KAI) model [37,38,39], Inhomogeneous-Field-Mechanism (IFM) model [40, 41], multi-grain Landau-Khalatnikov (LK) model [42] and the Nucleation-Limited-Switching (NLS) model [43,44,45,46,47]. In the scope of this study, we rule out both the IFM and the multi-grain LK model due to their nature of assuming a polycrystalline film with wide variety of polarization orientations, which is the opposite to our highly oriented epitaxial films [24]. The KAI model is considered appropriate for epitaxial films in classical ferroelectric materials since it describes homogeneous domain nucleus formation and unhindered domain wall motion as the limiting step similar to high-purity bulk materials [43, 48, 49]. However, multiple recent studies have demonstrated that the NLS model is a better fit for HfO2 thin films [34, 35, 50, 51]. This model assumes inhomogeneous formation of nuclei in different regions of the film with a characteristic distribution. Mathematically, the ferroelectric response of the NLS model is defined as

$${\varDelta P}_{sw}\left(t\right)=2{P}_{s}\cdot {\int }_{\!\!\!\!-\infty }^{\infty }\left[1-\text{e}\text{x}\text{p}\left\{{-\left(\frac{t}{{t}_{0}}\right)}^{n}\right\}\right]\cdot F\left(\text{log}\left({t}_{0}\right)\right) d\left(\text{log}\left({t}_{0}\right)\right)$$
(4)

Here, Ps is the switchable polarization, t0 is a characteristic switching time and n is the domain expansion coefficient. F(log(t0)) denotes a Lorentzian distribution function, which describes the assumed spread of characteristic switching times of individual domains:

$$F\left(\text{log}\left({t}_{0}\right)\right)=\frac{A}{\pi }\left[\frac{w}{{\left(\text{log}\left({t}_{0}\right)-\text{log}\left({t}_{1}\right)\right)}^{2}+{w}^{2}}\right]$$
(5)

Here, A is a normalization constant, w is the half width at half maximum of the distribution, and t1 is the distribution center. The transient polarization curves were fitted using an interior-point algorithm that was allowed to vary the parameters [Ps, n, t1, w] to minimize the total squared error between experimental data and fit. A rough parameter guess was supplied to the algorithm to ensure quick convergence and to reduce the risk of convergence to sub-optimal local function minima. The minimum R2 value of the fit to the experiment is 0.933 and the mean R2 value of all fitted curves is 0.992, indicating very accurate matching of the above NLS equations to the experimental data. The value of Ps converged very closely to the polarization at t = 10 µs, as expected. The value of n is between 2 and 3, which indicates 2- to 3- dimensional domain growth.

The solid lines in Fig. 4a and b show the transient polarization curves as calculated by Eq. (1) for the N2- and the O2-treated samples, respectively. For readability, three cycling stages of two exemplary fields, 3 MV/cm and 4.5 MV/cm, are shown. The curves are normalized to the maximum reached polarization at the given cycling stage. The corresponding NLS model fits are shown as dashed lines. The difference of the cycling stages, which are indicated by the direction of the arrows, is visible both in switching magnitude and speed from the transients. The O2 sample shows a more pronounced speed lowering.

Fig. 4
figure 4

a and b: Measured and NLS fit polarization transient curves for different cycling stages of the sample treated in N2 and O2, respectively. c and d: Corresponding distribution functions of the characteristic switching times

Full size image

Figure 4c and d show the Lorentzian distributions of Eq. (5) for the fits in (a) and (b), respectively. Arrows indicate the increase in cycling stage. Both samples exhibit a lower center position and wider distribution. The effect is much more pronounced for the O2-treated sample. The distributions after 104 cycles look almost identical for both samples.

The parameters t1 and w, which determine the shape of the characteristic switching time distribution, are shown for both samples respectively in Fig. 5. Since the ratio of (Eapp/Ec) reveals a difference in the internal behavior as described above, this approach is chosen here. While the N2 sample shows very minor dependence on the cycling stage, the O2-annealed sample changes significantly during cycling. Both t1 and w increase with increasing switching cycles. The change of t1 is very similar to the change in tsw shown in Fig. 3b, which is due to the low values of w.

Fig. 5
figure 5

a and b: NLS fit parameter t1. c and d: NLS fit parameter w of the sample treated in N2 and O2, respectively

Full size image

3.2 Discussion

The slight change in switching speed of the N2-treated sample, see Fig. 3a can be explained mainly by considering the according change in the coercive field. There are multiple possible explanations for changes in Ec. Apart from the frequently argued domain wall pinning mechanisms [52, 53], other effects such as local imprint mechanisms [54], local phase decomposition mechanisms [55, 56] and seed inhibition mechanisms [57, 58] are discussed. In comparison, the analysis of the O2-treated sample revealed that the property changes due to the change in macroscopic coercive field is superimposed by a more severe change that cannot be explained in the sense of coercive field change. While fast switching with low activation fields, EA,　is dominant in the pristine state, the cycling induces changes that both increase the coercive field in a range similar to the N2-treated sample, but also significantly increases the activation field as well as shifts and broadens the characteristic switching time distribution. As recently pointed out by Buragohain et al. [34], KAI model and NLS model naturally converge at high fields due to increasingly sharp distribution of characteristic times t0, approximating the Dirac function of the KAI model. Additional file 1: Figure S1 in the Supplementary Information demonstrates the convergence of the Lorentzian distribution into a Dirac function. Small values of w therefore hint at switching in the sense of the KAI model, i.e., rather homogenous nuclei formation and unhindered domain wall propagation. In the present study, the values of w of the N2 annealed sample remain constant and relatively high for the cycling stages, but increase significantly for the O2-annealed sample. As discussed in [34], the difference between KAI and NLS switching is expected to show most significantly at low fields, i.e. for 1 < (Eapp/Ec) < 1.5. Indeed, the difference in w is most significant for this range. Additionally, t1 increases for the O2 treated sample, pointing at increasingly inhibited nucleus formation.

We propose the following model as explanation for these observations: The atmospheric oxygen annealing step results in a reduced oxygen vacancy concentration in the film, i.e. a lower defect concentration. Importantly, the orthorhombic phase is not destabilized as evidenced by X-ray analysis in our previous study [24] and similar Pr during our electrical measurements. The o-phase stabilization is sufficiently provided by the CeO2 doping as well as the lattice matching with the (111)ITO bottom electrode. Epitaxial films of other phases, such as tetragonal and monoclinic, were obtained by changing the CeO2 concentration. So, stabilization of the desired orthorhombic phase is mainly determined by the CeO2 concentration. During the initial switching cycles, the lowered defect concentration in the O2-treated sample allows for homogeneous domain nucleus formation. This behavior can be described by KAI model, or, as demonstrated in Additional file 1: Figure S1, by low values for NLS parameter w. In comparison, the N2-treated sample is comparably defect-rich from the beginning, resulting in nucleus inhibition and inhomogeneous domain nucleus formation. This behavior is well described by the NLS model with moderate values of w. Continued field cycling results in generation of oxygen vacancy defects in the films. The subsequent redistribution within the film as discussed for other samples [59,60,61] leads to domain nucleus inhibition at the defect sites and slightly increased macroscopic coercive fields. The O2-treated sample is affected more significantly by the generation and redistribution of oxygen vacancies since its initial concentration is low. The samples behave nearly identical once the distributions assimilate, as seen from the similar activation fields and the NLS parameters. The fatigue property of the capacitors is not significantly influenced by this process, as the redistribution is finished after 103 to 104 cycles, which is far below the typically observed 106 cycles until breakdown of both samples.

As alternating fields are proposed to cause the defect generation and redistribution, significant frequency dependence is expected. Indeed, by repeating the previously described experiment on fresh capacitors and increasing the cycling frequency, f, from 100 kHz to 2 MHz, the shift of activation field, EA, and the ratio (EA/Ec) is delayed with respect to cycle number. However, the applied field time tapplied = (cycle/f ) is expected to be the determining factor. Figure 6a and b show the ratio (EA/Ec) and EA, respectively. The activation field of the N2-treated sample shows slight device to device variability, but EA of both capacitors remains constant over the cycling. In contrast to that, the O2-treated sample shows aligning time dependence with an increasing trend as expected. The activation field values of the N2 samples are in good agreement with another study on epitaxial Y-doped HfO2 films [34], while it is around 2 to 4 times higher than reports on polycrystalline samples [36, 62]. Since Ec of polycrystalline films are typically lower, this observation holds true for the ratio (EA/Ec). The 100 kHz experiment was conducted for the opposite switching direction also, which revealed the same relationships and values and is not shown here.

Fig. 6
figure 6

Activation field frequency dependence

Full size image

The presence of oxygen vacancy defects in HfO2 thin films is undisputed, yet their influence on ferroelectric switching is still under debate. On the one hand, the stabilizing effect of oxygen deficiency is agreed upon [49, 62,63,64]. On the other hand, the influence on the switching kinetics is controversial, including reports of no direct influence [65] and switching speed enhancements [35, 64]. In the present study, we found faster switching with close to KAI model dynamics for the sample with the higher oxygen content. Yet, our results are not necessarily in contrast to other studies as several important factors are different: First, the measured effect diminishes over the period of around 10 ms field cycling (103 cycles at 100 kHz), which is below typical wake-up times in polycrystalline samples [25, 26, 50, 66,67,68]. The phenomenon may therefore be only observable in epitaxial samples without the masking wake-up effect. Second, the highly oriented epitaxial nature of the films may be a crucial prerequisite for obtaining homogeneous switching similar to KAI dynamics. Grain boundaries and other volume defects of polycrystalline films may prohibit switching with KAI model dynamics, even when oxygen vacancy defects are excluded. Third, the stabilizing effect of oxygen vacancies in polycrystalline films [49, 62,63,64] implies that the vacancy concentration also changes the phase composition and remanent polarization, which may alter the switching speed simultaneously. Our precisely doped and lattice matched films showed identical structural properties, see [24], and remanent polarization, which proves that the defect concentration and the phase composition are disentangled in our samples. Lastly, the valence state of dopants in HfO2 may have significant impact on the ionic mobility [69]. This circumstance will require further studies, e.g. comparing epitaxial films of the popular tetravalent (Hf0.5Zr0.5)O2 and Si:HfO2 [10, 70] systems with mixed-valence dopants such as the presented Ce3+/Ce4+ and trivalent options such as Y:HfO2 or La:HfO2 [28, 34, 71].

4 Conclusion

Epitaxially-grown orthorhombic Hf0.83Ce0.17O2 capacitors were investigated with respect to their switching dynamics at different cycling stages. While the post-deposition annealing in N2 and O2 atmosphere does not impact the constituent phase composition and the macroscopic ferroelectric properties, the sample treated in O2 atmosphere switches significantly faster and more uniformly than the N2 sample in the pristine state. As cycling continues, both samples show slight increase in coercive field. The O2 sample additionally transitions from a uniform switching process similar to KAI dynamics into a non-uniform region-by-region-like switching described by NLS dynamics, which is the prevalent mode in the N2 treated sample for all measured cycling stages. The assimilation is completed after around 103 cycles at 100 kHz, which is three orders of magnitude below the typical failure. The process is explained by an oxygen vacancy defect reduction during heat treatment and gradual cycling-induced defect re-injection and redistribution.

Availability of data and materials

The data of this study is available from the corresponding authors upon reasonable request.
