Investigating composite electrode materials of metal oxides for advanced energy storage applications

Abstract

Electrochemical energy systems mark a pivotal advancement in the energy sector, delivering substantial improvements over conventional systems. Yet, a major challenge remains the deficiency in storage technology to effectively retain the energy produced. Amongst these are batteries and supercapacitors, renowned for their versatility and efficiency, which depend heavily on the quality of their electrode materials. Metal oxide composites, in particular, have emerged as highly promising due to the synergistic effects that significantly enhance their functionality and efficiency beyond individual components. This review explores the application of metal oxide composites in the electrodes of batteries and SCs, focusing on various material perspectives and synthesis methodologies, including exfoliation and hydrothermal/solvothermal processes. It also examines how these methods influence device performance. Furthermore, the review confronts the challenges and charts future directions for metal oxide composite-based energy storage systems, critically evaluating aspects such as scalability of synthesis, cost-effectiveness, environmental sustainability, and integration with advanced nanomaterials and electrolytes. These factors are crucial for advancing next-generation energy storage technologies, striving to enhance performance while upholding sustainability and economic viability.

1 Introduction

The development of diverse energy systems, encompassing energy conversion and storage, has been strategically advanced to address the increasing global demand for power and effectively mitigate the energy crisis. Various renewable energy systems are available that transform alternative energy sources, such as solar, wind, hydroelectric, and thermal into electricity—a technological evolution that marks this era [1, 2]. However, the deficiency in storage technology for retaining produced energy remains a significant hurdle, as its efficiency has not yet reached the level required for optimal energy delivery [3, 4].

In energy storage research, batteries and supercapacitors stand out for their unique contributions to sustainable and efficient energy solutions. Batteries are crucial for applications requiring long-lasting power and high energy density in compact spaces. Supercapacitors, with their rapid charging and high-power density, excel in situations needing quick energy bursts. Their unparalleled cycle life also offers reliability unmatched by batteries. The distinct advantages of each technology highlight their complementary roles in enhancing energy storage systems, underscoring the importance in advancing sustainable energy technologies [5, 6]. Therefore, both the batteries and supercapacitors become the prime components for high energy densities for long-term storage and high power energy densities for short-term balancing [7]. Although fuel cells demonstrate relatively high energy conversion efficiency, they have a shorter lifespan and decreased durability [8].

The quest for optimized efficiency features designing and developing ingenious electrode materials for batteries and supercapacitors. The efficiency of these energy storage systems is intrinsically tied to the electrochemical characteristics and physical properties of their electrodes. In that regard, researchers have explored various materials with different configurations, including carbon/its derivatives, metal oxides, metal hydroxides, sulfides, selenides, MXenes, and their composites [9,10,11,12]. Metal oxides have emerged as compelling candidates for Energy Storage Systems (ESS) due to their comprehensive properties- flexibility, transparency, semi-conductivity, photosensitivity, and redox capabilities. Additionally, these boast abundant active sites, exceptional mechanical strength, a high specific surface area, and robust chemical stability, making them highly advantageous for various energy storage [13, 14]. The metal oxides has advantages over sulfides, phosphides, and carbides due to their superior chemical and thermal stability, essential for enduring performance in energy storage [15]. Metal oxides are safer, more environmentally friendly, and subject to stringent commercial regulations, making them ideal for widespread implementation. Furthermore, metal oxides are more abundant and cost-effective, contrasting with the more expensive and complex synthesis required for other compounds [15]. These attributes render metal oxides optimal for sustainable and economically viable energy storage solutions.

Given these advantages, metal oxides and their composite derivatives have increasingly been recognized as promising electrode materials, valued for their versatile functionalities [16]. Specific material properties and device functionalities unattainable with individual materials become achievable through composite configurations. The synergistic effects of these composites enhance electrode performance, making them excellent choices for high-efficiency energy systems and advancing sustainable technologies [14]. Prior reviews have illuminated these advantages: Lokhande et al. highlighted the improved conductivity, cycle stability, and capacitance achieved by combining metal oxides with carbon based materials [17]; Hussain et al. detailed the synergistic effects of incorporating graphene with transition metal oxides, noting that this combination significantly enhances the structural integrity and energy density of the composites, while the high electrical conductivity and extensive surface area of graphene contribute to increased charge storage capacity and accelerated charge/discharge cycles [18]; Wang et al. also demonstrated that embedding metal nanoparticles and their oxides into a porous carbon matrix enhances capacitance and cyclic stability. These nanoparticles impart pseudocapacitive properties to the matrix, significantly elevating the overall capacitance beyond the capabilities of carbon alone [19]; and Shaikh et al. recently explored how graphene composites, when combined with conducting polymers and MXenes, boost both conductivity and mechanical strength, underscoring the critical role of composite materials in supercapacitor advancements [20]. Despite these promising attributes, challenges still remain, such as achieving consistent distribution of metal oxides, preventing metal particle agglomeration, and ensuring long-term stability, which necessitates further research to stabilize these composites during repeated use [18, 19].

This review delves into the use of metal oxides and their composites in energy storage systems, with a specific focus on electrodes for supercapacitors and batteries, as depicted in Fig. 1. It provides a detailed examination of various electrode configurations, aiming to offer a comprehensive understanding of their roles and potential for enhancing energy storage solutions, based on the most recent research findings. We address the challenges faced in development and implementation, evaluate the prospects for commercialization, and provide insights into future trends in this field. Our goal is to not only enrich academic knowledge but also to catalyze practical advancements in energy storage technologies.

Fig. 1

Schematic representation of the various types of metal composites based electrode materials for energy storage applications

2 Methodologies involved in the preparation of metal oxide composites

2.1 Top-down approach

Generally, the fabrication of metal oxide nanocomposites falls into two main categories: “top-down” and “bottom-up” synthesis [21]. The top-down approach involves reducing bulk structures to nanoscale dimensions through mechanical or chemical processes. However, this approach alone is not sufficient for creating nanocomposite materials. Rather, it serves to prepare individual templates, matrices, or nanostructures. Key techniques in top-down synthesis, such as exfoliation, mechanical milling, and lithography, are discussed in the following section. These methods are chosen for their relevance and represent some of the most common strategies in this approach [22].

2.1.1 Exfoliation

Exfoliation is a method for creating two-dimensional (2D) materials by physically or chemically peeling layers from bulk materials to produce atomically thin sheets [23]. The chemical (liquid) exfoliation method involves dispersing materials in solvents and utilizing sonication followed by centrifugation to isolate mono- or few-layer sheets. In contrast, physical (mechanical) exfoliation typically uses adhesive tape to peel off layers from bulk material, producing thin layers. This tape is repeatedly folded and unfolded, gradually reducing the material to the desired thickness. Originally used to isolate graphene, this technique allows for observing quantum properties in 2D materials. However, it faces challenges such as low yield, small flake sizes, and potential contamination, limiting its scalability. Despite these drawbacks, exfoliation remains crucial for research into the unique properties of 2D materials [24].

Exfoliation processes have proven to be an effective and formidable strategy for synthesizing a diverse array of materials, including graphene and graphene oxides (GO) derived from layered graphite and a variety of metal oxide nanosheets such as VO_2, V₂O₅, MnO₂, MoO₃, and SnO [25,26,27,28]. Additionally, this method has facilitated the production of novel 2D materials, silicenes, and MXenes [29]. Post-hydrothermal treatments are often employed to enhance the properties of these exfoliated materials further. Figure 2 shows the exfoliation and preparation of composites for the energy storage application. These treatments allow for advanced surface modifications, including doping, which can significantly improve the material functionalities [29, 30]. Significantly, the utility of exfoliation extends beyond mere synthesis; it also serves as a crucial surface treatment technique. However, exfoliating layered compounds with high layer charge density continues to pose a significant challenge. Furthermore, acquiring non-layered materials is particularly complex because the in-plane bonds are substantially stronger than van der Waals forces. As a result, mechanical and chemical exfoliation methods have consistently proven ineffective for these materials [29].

Fig. 2

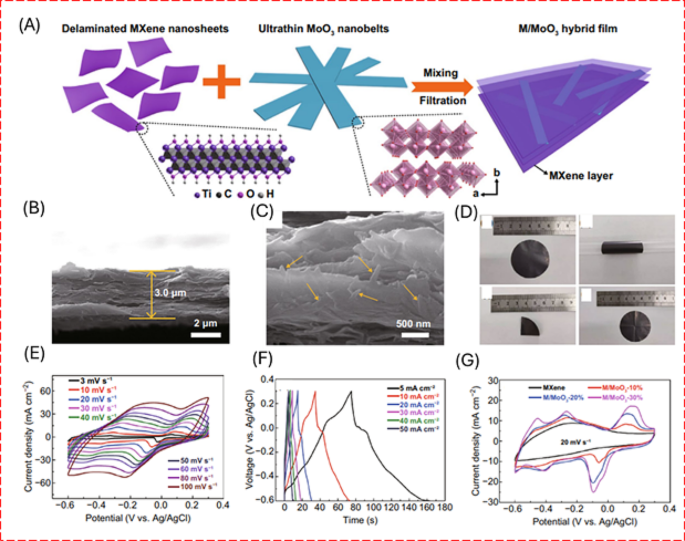

(A) Schematic illustration of the fabrication process of M/MoO₃ hybrid flms (B, C) cross-sectional images (D) film under deformation of M/MoO₃. (E) CV curves of the M/MoO₃ electrode at various scan rates, (F) GCD profiles of M/MoO₃ electrode at various current densities, (G) CV curves of pure MXene and composite electrodes at a scan rate of 20 mV s^− 1. [30]

2.1.2 Mechanical milling

Mechanical milling is a prominent method within the top-down approach of nanomaterial synthesis, leveraging mechanical forces to reduce bulk materials to nanoscale particles [23, 31]. In this process, bulk materials are placed in a milling vessel along with milling balls or media, such as stainless steel balls or ceramic beads [32]. The milling vessel is then rotated, causing the balls to collide with the material, exerting mechanical impact and frictional forces. These interactions result in the gradual breakdown of the bulk material into smaller particles [33]. The intensity and duration of milling can be controlled to achieve the desired particle size distribution and properties. Factors such as milling time, milling speed, and the choice of milling media must be considered to optimize the process and avoid unintended structural changes or contamination in the synthesized nanoparticles.

A copper oxide-based composite in graphene with a less defective 2D network was synthesized using a ball milling technique, and its application was studied for hybrid supercapacitors (SCs) [34]. This work reports graphene produced through ball milling with D-sorbitol and utilized as an electrode material to boost the conductivity and electrochemical capabilities of copper oxide electrodes. Significant ball impacts are required to induce chemical transformations, resulting in structural stress, bond disintegration, and the generation of reactive radicals. This process creates elastic deformations and exposes reactive layers of atoms at the reactant interface, thereby promoting efficient reactions [35]. However, mechanical milling comes with several challenges. It can introduce impurities from the milling media and container, affecting product purity. The technique also produces a wide range of particle sizes, consumes considerable energy, and generates heat, which can alter material properties and may require cooling measures to manage [35].

2.1.3 Lithography

Lithography techniques are mainly used for precise patterning and etching materials at the nanoscale, enabling the creation of intricate nanostructures essential for various applications. Photolithography and electron beam lithography (EBL) are two main techniques for synthesizing nanomaterials with absolute precision [36]. Photolithography, a widely used method, involves using Visible or UV light to transfer patterns onto a substrate coated with a photosensitive material, typically a photoresist. On the other hand, in EBL, a focused beam of electrons is used to directly write patterns onto a substrate coated with an electron-sensitive resist material. EBL offers even greater resolution and flexibility in nanostructure fabrication than photolithography. The electron beam can be controlled with high precision, allowing for the creation of features as small as a few nanometers. Both photolithography and EBL play critical roles in advancing nanotechnology by enabling the fabrication of nanostructures with tailored properties and functionalities. Patterned 3D bio-inspired structures are reported using graphene-based PANI composite, and its SC performance was analyzed [37]. These conductive composites-based electrode materials enable flexible devices with enhanced ion–electrode transport, which is a significant advantage for an ideal electrode that outperforms energy storage applications [38].

2.2 Bottom-up approach

Bottom-up synthesis provides substantial benefits by enabling precise control over the composition, morphology, and size of low-dimensional materials, facilitating the creation of highly customized materials. This method constructs nanomaterials typically via self-assembly or controlled growth processes. In this technique, the materials are assembled atom-by-atom or molecule-by-molecule, ensuring detailed structural configurations tailored to specific applications [39]. Common techniques in bottom-up synthesis include sol-gel synthesis, hydrothermal, solvothermal synthesis, chemical vapor depositions, and so on. Each method of approach has its advantages and limitations, and the choice between them depends on factors such as desired properties, scalability, and cost-effectiveness for a specific application, which is discussed in detail.

2.2.1 Sol-gel methods

The sol-gel process involves the conversion of a precursor solution (sol) into a gel-like network, followed by drying and annealing to form the desired nanomaterials [40]. By adjusting factors such as the precursors, catalysts, solvent, and drying duration/temperature, this method can be customized to suit specific needs. The versatility of the sol-gel process allows for the integration of organic and temperature-sensitive materials across a variety of applications. [21, 41]. However, the sol-gel method has its limitations, including significant shrinkage during drying and firing that can lead to cracking, lengthy processing times, and challenges in scaling up for industrial production. Additionally, the cost of raw materials and the use of hazardous chemicals can increase operational complexity and expenses. Despite these challenges, the sol-gel method remains a valuable tool for synthesizing a wide range of high-purity materials, provided that the processing and economic hurdles are effectively managed. For instance, the sol-gel process is employed to precisely synthesize high-quality metal oxide nanosheets, which are well-suited for battery applications due to their high specific surface area and optimal morphological characteristics. These nanosheets are prepared using a citrate-assisted sol-gel method, involving sequential steps of evaporation, drying, and calcination to achieve the desired properties [42].

The sol-gel process is also versatile, accommodating a range of metal oxides such as aluminum oxide, titanium dioxide, zinc oxide, and iron oxide, making it ideal for producing composites tailored to various applications [43]. This method ensures a uniform coating of CNTs with metal oxides, which is particularly vital for electronic and photonic applications where consistent behavior across the system is essential. Additionally, the sol-gel method may enhance the interface bonding between CNTs and metal oxides, significantly improving the mechanical strength and electrical conductivity of the composites. Such robust bonding, usually covalent, is crucial for applications demanding durable structural materials with superior conductive properties. The bonds typically formed during the transition from sol to gel are based on the condensation reactions between metal atoms, which are mediated through oxygen atoms. These attributes render the sol-gel method highly effective for synthesizing metal oxide/ CNT composites with optimized performance characteristics.

The sol-gel method has demonstrated significant benefits in the synthesis of hydrous RuO₂/graphene sheet composites for use in high-performance electrochemical capacitors. This technique provides a robust framework for developing graphene-based composites with notably enhanced electrochemical performance. [44]. Recently, anisotropic ZnO/rGO and LiFePO₄/C nanocomposites have been recognized as high-quality electrode materials for SCs and batteries, respectively. [45, 46]. Furthermore, the sol-gel process has been effectively applied to encapsulate silicon carbide (SiC) particles with magnesium oxide (MgO) and magnesium aluminate (MgAl₂O₄) spinel. This research highlights the advanced electrochemical properties of these composites, showcasing their potential applications in SCs, fuel cells, and electronic devices, thereby affirming the versatility and efficacy of the sol-gel method. [47].

2.2.2 Hydrothermal and solvothermal synthesis

In hydrothermal and solvothermal synthesis, a mixture of solvents and precursors is sealed within a pressure-resistant vessel. The type of solvent chosen significantly impacts the synthesis process, as it acts as both a medium and a catalyst, facilitating the growth of 1D or 2D nanomaterials through heterogeneous reactions. Hydrothermal synthesis is characterized using aqueous solutions, whereas solvothermal synthesis utilizes organic solvents or other non-aqueous liquids. Both methods require the metal precursors to react under controlled high-temperature and high-pressure conditions to form nanomaterials [48]. Common solvents for the latter include alcohols, glycols, and supercritical fluids such as CO₂ [49]. Figure 3 describes the hydrothermal and solvothermal processes involved in the preparation of the Mn₂O₃/rGO and Fe₃O₄ nanoparticles [50, 51]. Microwave-assisted hydrothermal synthesis has further optimized these processes. By directly targeting materials with microwave energy, this approach minimizes energy losses and boosts synthesis efficiency. It also accelerates reaction rates, facilitating rapid nucleation and growth of nanomaterials essential for crafting materials with defined nanostructures and properties [52].

Fig. 3

Schematic diagram representation of synthesis procedures involved in (A) hydrothermal and (B) solvothermal synthesis. (C, D) TEM images of Mn₂O₃/rGO aerogel at 20 nm and 50 nm respectively and (E) Fe₃O₄ NPs. [50, 51]

Hydrothermal and solvothermal synthesis methods are exceptionally effective for fabricating precisely engineered zeolites and nanostructures with designated lattice structures and chemical compositions, making them ideal for applications such as highly efficient SCs. These methods allow meticulous control over parameters such as temperature, pressure, pH, and reaction duration, enabling fine-tuning of particle size, shape, and crystallinity [53]. As a result, a diverse range of morphologies, including nanosheets, nanoflakes, and nanoparticles, can be produced. This precise control is crucial for developing materials tailored for specific functionalities. Additionally, by adjusting these conditions, it is possible to create integrated and composite nano-configurations, offering a broader spectrum of structural configurations than other synthesis methods like sol-gel or exfoliation [54]. This advantage underscores the superior capability of hydrothermal and solvothermal methods in advanced material engineering.

Considering the vast array of materials synthesized using hydrothermal and solvothermal methods, an exhaustive presentation of individual examples would not effectively capture the full scope of advancements made in this study. Detailed information on specific nanomaterials and nanocomposites synthesized via these techniques is systematically cataloged in Tables 1 and 2. These methods are especially notable for their capacity to engineer a diverse array of compositions and structural configurations. For instance, we have developed unique composite structures such as a double sandwich-like Co₂SiO₄/derivatives with GO composite [55], demonstrating flexibility in layering and material integration. Additionally, various nano configurations of MnCO₂O₄, ranging from nanorods and porous/nonporous nanospheres to nanoflakes and nanosheets, illustrate the ability to precisely control nanostructure morphology.

Table 1 Metal oxides and its composites synthesis method, morphology and specific capacitance/capacity comparison for SCs

Table 2 Metal oxides and its composites synthesis method, morphology and specific capacity comparison for battery

In transition metal dichalcogenides (TMDCs), materials such as Co-MoS₂/Cu₂MoS₄ [56] highlight the synthesis of complex hybrid materials that integrate multiple functionalities for enhanced electrochemical performance. The synthesis of Poly(indole-6-carboxy acid) nanowire composites with β-MnO₂ nanorods (6-PICA/β-MnO₂–NRs) [57] showcases the integration of organic and inorganic phases to achieve synergistic properties. Moreover, the ferric ions-assisted self-assembly of MXene/TiO₂-graphene aerogel composites (MXene/TiO₂-Fe-G) [58] represents a sophisticated example of utilizing metal ion coordination to guide the assembly of highly porous, three-dimensional structures with high surface areas. Lastly, the NiAl LDH/Mn₃O₄/Co-MOF ternary composites [59] demonstrate the potential for creating layered hybrid materials that combine multiple metal oxides and organic frameworks for targeted applications. These presented examples underscore the technical sophistication and innovative potential of hydrothermal and solvothermal synthesis methods in creating precisely tailored materials for advanced applications across various technological domains.

2.2.3 Chemical vapor deposition

Chemical Vapor Deposition (CVD) is a vital technique for fabricating high-quality materials through the chemical reactions of volatile precursors. Recognized as one of the most effective bottom-up synthesis methods, CVD is especially acclaimed for producing commercial-grade graphene and GO [60]. It is extensively used to synthesize a variety of thin films and nanostructures under rigorously controlled temperature, pressure, and chemical environment conditions. This precise control ensures uniform deposition on templates, resulting in high reproducibility of the materials produced. The process involves the decomposition or reaction of gas-phase precursors that, when interacting with a heated substrate, produce a solid deposit while typically gaseous by-products are evacuated.

Due to this mechanism, high-temperature processing is an essential part of CVD. However, the integration of microwave plasma in CVD processes enables the synthesis of materials at lower temperatures compared to their traditional counterpart. This lower-temperature processing can be crucial for protecting temperature-sensitive substrates and minimizing thermal stresses within the material structure. Furthermore, plasma plays a pivotal role in precisely controlling the nanostructure and related qualities of materials. For instance, In₂O₃ nano blades synthesized via plasma-enhanced CVD (PE-CVD) show enhanced electrochemical properties as anode materials. They achieved a reversible capacity of 580 mAh/g after 100 cycles, marking a substantial improvement over thin films produced by conventional methods [61].

Note that the primary advantages of chemical vapor deposition (CVD) include its ability to produce uniform, high-purity materials with customizable structural properties. This technique is particularly valuable for applications that require thin films with excellent conformity or multi-layered structures. Indeed, the multilayered hematite (Fe₂O₃) and rGO, synthesized through CVD, have demonstrated exceptional specific capacity and charge/discharge cycling stability, attributable to their improved structural integrity [62]. Electrospun carbon nanofibers with Fe/Fe₃O₄-encapsulated carbon nanotubes (CNTs) (Fig. 4) [63] and carbon nanocoils on nickel foam, fabricated using CVD techniques for SC electrodes, have been also reported [64].

Fig. 4

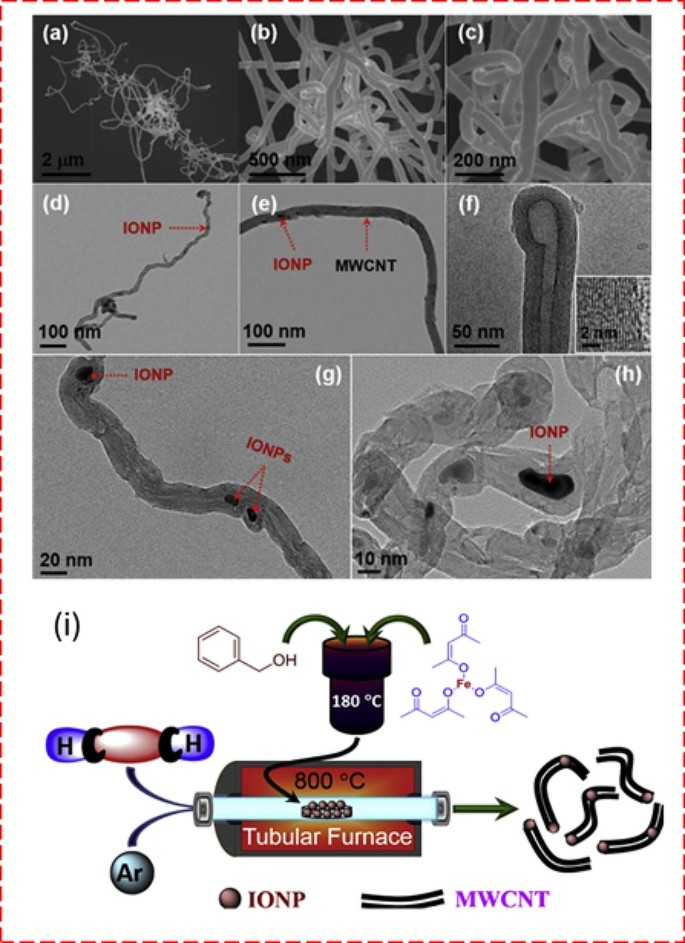

(a-c) FESEM images with different magnification, (d–f) TEM images, (g) and (h) HRTEM images of synthesized iron -oxide nanoparticles- multiwalled carbon nanitubes IONP-MWCNTs hybrid. Inset of (f) HRTEM image of the walls of MWCNTs within the synthesized IONP-MWCNTs hybrid. (i) Schematic diagram representation of synthesis procedures of CVD methods for IONP-MWCNTs hybrid [63]

2.2.4 Green synthesis

Green synthesis methods focus on environmentally friendly and sustainable approaches to produce metal oxide composites [65]. The main aim is to reduce or eliminate the use of hazardous chemicals, minimize energy consumption, and utilize renewable resources. Metal oxide composites can be synthesized via plant extracts and microbial synthesis methods that can be used as reducing agents, and stabilizing agents to metal oxide nanoparticles respectively [66]. Incorporating renewable biomaterials such as cellulose, chitosan, and other natural polymers as templates or supports in the synthesis of metal oxide composites [67]. These materials are biodegradable and contribute to the green credentials of the synthesis process. In this regard, the choice of solvent can significantly impact the environmental impact of the synthesis process [68]. The summary of the preparation methodologies along with the advantages and the limitations are provided in Table 3.

Table 3 Summary of the advantages and disadvantages of the preparation methods

3 Materials perspectives in energy storage system

Carbon and its various forms, such as graphene, fullerenes, and CNTs, stand out as primary materials in energy conversion and storage technologies as they offers higher surface area and more electroactive sites as well as functional flexibilities [69, 70]. Recently, MXenes were also introduced as promising materials for the electrodes for energy storage systems because of chemical/structural stabilities and excellent conductivity [71, 72]. The remarkable success of graphene/its derivatives and MXenes in energy storage technologies has led to increased research into other 2D materials and their composites, attributed to their layered structures and the fast ion intercalation/deintercalation capabilities during the charge storage process [73]. This surge in interest aims to leverage these unique properties of materials for enhanced energy storage solutions. This includes a diverse array of low-dimensional nanomaterials and compounds like metal, metal oxides, metal chalcogenides, metal phosphates, metal carbides, nitrides, and jarosites [74]. The development of composites from these materials would facilitate the creation of innovative materials. This enhancement significantly improves performance, selectivity, and efficiency, paving the way for advanced energy storage solutions. From the series of materials available for energy storage, we here focus on utilizing low-dimensional metal oxide and their respective composites.

The use of metal oxide composite structures introduces new perspectives on material innovation [75, 76]. Nanocomposite configurations, which combine distinct unit materials with unique physical and chemical properties, are expected to be a groundbreaking approach due to their ability to selectively tailor synergistic effects. However, the use of metal oxide composites as electrodes presents several challenges [11, 13]. One such issue is the tendency of metal oxide nanoparticles to aggregate, which reduces the effective surface area and impairs electrochemical performance. Some metal oxides may also exhibit instability or reactivity in aqueous environments, limiting their applicability in settings exposed to water. Furthermore, the complete synthesis and fabrication processes of the composite structure can be costly.

3.1 Synergistic effect of using metal oxides

The synergistic effect of metal oxide composites in energy applications, particularly as electrodes of SCs and batteries, is significant and offers several advantages. Metal oxide composites turn out to improve SCs by delivering higher specific capacitance and energy density alongside a rapid charging/discharging rate. Metal oxide composites with tailored morphologies and structures offer increased surface area, facilitating better ion adsorption and desorption kinetics [77]. Composite structures of metal oxides and carbonaceous materials can prevent the restacking of layers, ensuring efficient utilization of active materials and prolonged cycle life [78]. The development of diverse sustainable synthesis techniques for metal oxides is crucial, taking into account their morphological, compositional, and supercapacitive characteristics. This encompasses the exploration of SC designs and configurations, the classification of SCs according to electrode materials, and an in-depth examination of metal oxide-based pseudocapacitive and battery-type electrodes.

In batteries, the use of metal oxide composites can improve electrode stability and prevent electrode degradation during charge/discharge cycles. Composite electrodes with metal oxides exhibit improved charge storage capacity and cycle stability, resulting in a longer battery lifespan and better performance [79]. The synergistic effect between metal oxides and other materials allows for the optimization of electrode-electrolyte interfaces, minimizing side reactions and enhancing battery efficiency [80].

Note that the efficiency may be directly affected by several factors such as crystallinity, specific surface morphology, and electronic conductivity of the metal oxides. Metal oxides store charge via faradaic redox mechanism mostly with the change in phase during the charging process whereas some of the metal oxides such as MnO₂ and RuO₂ follows the pseudocapacitive nature of storage [81]. Crystallinity significantly influences the charge storage capabilities of metal oxides; the amorphous phase often outperforms the crystalline phase due to better ion diffusion channels enhancing electrochemical performance. Additionally, the morphology of metal oxides, such as nanosheets and nanoflakes, affects their properties, offering superior physical and chemical attributes compared to nanoparticles and spherical structures [82]. A high specific surface area also plays a crucial role, improving electrode/electrolyte interactions and increasing electroactive sites for redox and intercalation reactions [83]. Thus, optimizing the properties of metal oxides is essential for their effective use in electrochemical applications. Various structures of the metal oxide composites are shown in Fig. 5, which resembles the different morphological integration of the electrode materials. For instance, the composite of MnO₂ with wood derived carbon and rGO shows the synergistic effect in the charge storage such as the pseudocapacitance nature of the MnO₂ and the double layer capacitance of the rGO produced an excellent electrochemical performance (Fig. 6A) [84].

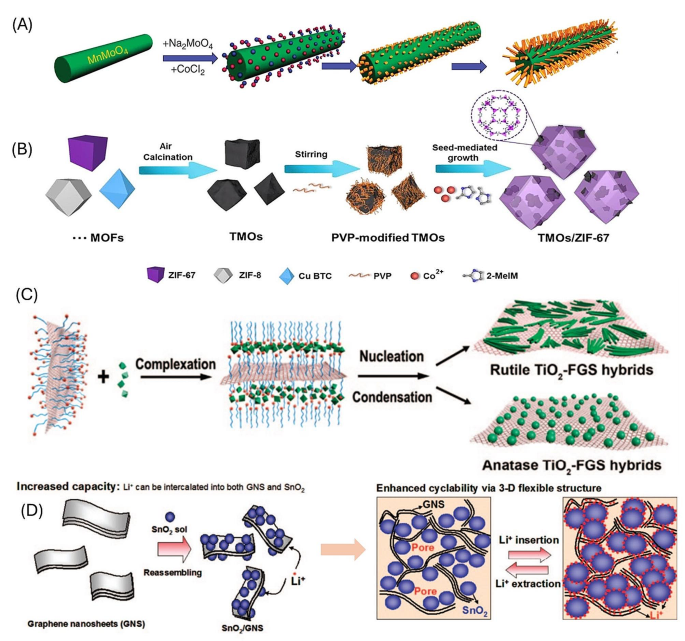

Fig. 5

The various structures of the metal composites grown with different architecture such as (A) MnMoO₄ nanowires in CoMoO₄ nanorods, (B) MOF @ TMO composite with seed-mediated growth, (C) TiO₂- Graphene sheet composites and (D) SnO₂ decorated on graphene nanosheets respectively [141,142,143,144]

Fig. 6

(A) Schematic representation of the preparation for composite with the synergetic effect of EDL and pseudocapacitive material. (B) Pictorial representation of Co₃O₄ nanoflakes/graphene composite synthesize in different conditions. (C) Schematic illustration for the preparation of MnCo₂O₄/NG 2D/2D hybrid nanoarchitectures for ASC [84, 87, 88]

3.2 Metal oxide composites

3.2.1 Metal oxide/graphene composites

Metal oxide/graphene composites hold significant promise for SC applications due to several key factors. The composite structure promotes high conductivity by facilitating electron transfer from the graphene layer to the metal oxides. This boosts hole concentration in graphene, improving overall conductivity. Metal oxides are often sandwiched between graphene nanosheets, preventing restacking of graphene layers and ensuring efficient utilization of the materials. In MnO₂/graphene composites synthesized via electrostatic co-precipitation, which entails mixing oppositely charged components in a solvent to promote aggregation and precipitation through electrostatic interactions, an enhanced electrochemical performance exceeding that of pristine MnO₂ and graphene alone has been observed [85]. This composite leverage exceptional electrical conductivity of graphene for rapid charging and discharging, alongside substantial capacitance of MnO₂ to augment energy storage capacity. Such a synergistic integration not only amplifies energy and power density but also significantly enhances cyclic stability. Consequently, this composite structure outperforms the individual capabilities of either material, marking a notable advancement in energy storage technology.

Similarly, the composite structure of flower-like NiO supported on graphene sheets surpasses the performance of either NiO or graphene alone in SCs [86]. The synthesis of NiO on graphene sheets involves a two-step process: initially, graphene is produced by chemically reducing graphite oxide, followed by a hydrothermal treatment of a mixture containing graphene, nickel nitrate, urea, and a surfactant to form NiO precursors. This mixture is then calcined under nitrogen to convert the precursors into nickel oxide. Notably, this composite exhibits a specific capacitance of 346 F/g at 1.5 A/g, significantly exceeding that of bare NiO (220 F/g). The superior performance is attributed to the unique flower-like NiO morphology that increases surface area for electrolyte contact and the conductive graphene sheets that provide structural stability, enhancing the electrochemical performance [86].

Additionally, other studies have explored various composite structures, such as ultrathin MnO₂/graphene nanosheets and Co₃O₄ nanoflake/graphene composites, demonstrating their potential for flexible planar SCs and high specific capacitance (Fig. 6(B)) [87]. These composites were synthesized using a combination of CVD and hydrothermal methods, effectively integrating the unique properties of each component. Further research by Shrestha et al. focusing on MnCo₂O₄/nitrogen-doped graphene composites highlights a unique interaction that prevents restacking, significantly boosting the performance of these composites, as depicted in Fig. 6(C) [88].

3.2.2 Metal oxide/carbon nanotube composites

CNTs serve as excellent substrates for supporting metal oxides in energy storage applications due to their high conductivity, mechanical strength, and thermal stability [89]. For instance, the transition metal oxide/CNT composites synthesized by wet chemical methods followed by annealing as shown in Fig. 7 (A) demonstrated enhanced electrochemical performance, in which SEM micrographs showed nanosheet structures of NiCoO₂ on the CNT backbone [90]. The exceptionally high electrical conductivity of CNT enables rapid electron transport within the composite electrode which ensures efficient charge transfer during electrochemical charging and the discharging process.

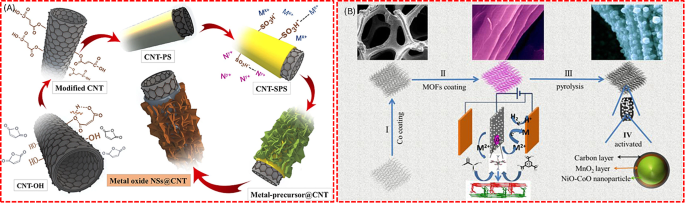

Fig. 7

Schematic representation of preparing (A) TMO@CNT composites. (B) 2D NiO-CoO/MnO₂/C composite. [90, 92]

In another study, Mondal et al. demonstrated the enhanced conductivity and stability of MWCNT/NiCo₂O₄ nanosheets, which were fabricated using a microwave-assisted method for use in electrodes [91]. This synthesis involves heating a solution of metal nitrates, urea, and dispersed MWCNTs in a microwave synthesizer at 140 °C for 30 min, facilitating rapid and uniform formation of the precursor materials. The TEM displays the integration of NiCo₂O₄ in MWCNT which can offer more electroactive sites and the facilities more space for the ion intercalation/deintercalation during the electrochemical reaction. Similarly, Shadpour et al. explored the effect of CNT functionalization on the properties of metal oxide/CNT composites. It describes the investigation of the various methodologies and strategies of the interaction of CNT and metal oxides along with their impact on the structure, morphology, and performance [43].

3.2.3 Metal oxide/activated carbon composites

Activated carbon (AC) is an effective support material for metal oxide/AC composites in SCs, valued for its moderate electronic conductivity and high surface area. Zhang et al. developed a 2D-layered carbon-metal oxide composite electrode through a three-step process that starts with cobalt electrodeposition on Ni foam to form a conductive seed layer as shown in Fig. 7 (B). This is followed by secondary electrodeposition using 1,3,5-benzene tricarboxylic acid to create a Co-metal oxide form, enhancing the electrochemical pathways for ion intercalation. Finally, the assembly is pyrolyzed to embed carbon in the metal oxide, improving conductivity for energy storage applications. This composite demonstrated a high areal specific capacitance, underscoring the potential of metal oxide/AC composites for SC applications [92]. In a different stance, Tugrul et al. reported MnO₂/AC and NiO/AC composites for SC applications, were synthesized using both hydrothermal and precipitation methods to investigate their effect on the surface chemistry, porous structure, and electrochemical properties on the metal oxide composite-based electrodes. It is proven that the hydrothermal treatment for depositing nano-oxides led to an increase in specific surface area and the presence of oxygen-containing surface functionalities, thereby enhancing the electrochemical properties of the composites. Despite the decrease in specific surface area caused by metal oxide loading, the pseudocapacitive effect of MnO₂ and NiO, along with the oxygen-containing surface functionalities, contributed to an increase in specific capacitance. Specifically, MnO₂ and NiO loading resulted in a remarkable 50% and 150% increase in specific capacitance, respectively [93].

3.2.4 Metal oxide/polymer composites

Conducting polymers, such as polyaniline (PANI), polythiophene (PTH), and polypyrrole (PPy), offer higher conductivity than metal oxides only and are easily integrated into composite structures for SCs [94]. The integration of the conducting polymers in the metal oxide composites produced higher electrochemical properties via improved charge-transport kinetics and flexibility, leading to enhanced energy storage performance with better stability, and rate capability. Li et al. demonstrated controlled growth of 2D ternary hybrids of Co₃O₄, PANI, and graphene for SC applications (Fig. 8 (a-b)) [95]. This synthesis involves a process that starts with the functionalization of GO sheets by in-situ polymerization of aniline, which integrates PANI into the GO sheets. After centrifuging, these modified GO sheets are treated hydrothermally with metal salt precursors, allowing the growth of metal oxide or hydroxide nanoparticles directly onto the PANI-modified graphene. In the composite structure with the cobalt oxide, PANI and graphene offer better charge distribution and interaction with the oxide and the carbon-based polymer materials.

Fig. 8

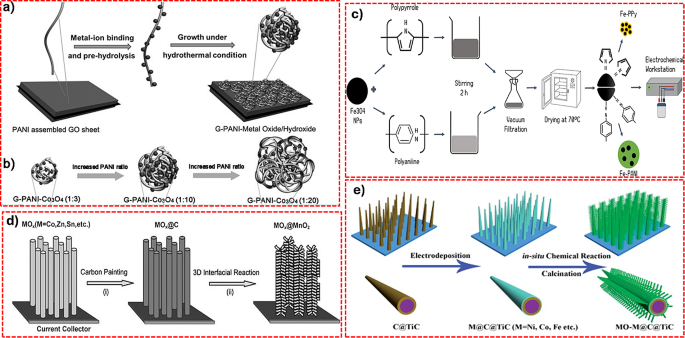

Schematic illustration of the synthesis procedure of (a) G-PANI-MOs/MHs composite. (b) PANI-Co₃O₄ hybrid composite. (c) Fe3O4-PPy and Fe3O4-PANI composite. (d) Co₃O₄ Nanowire@MnO₂ (e) MO–M@C@TiC (M = Ni, Co, Fe, Mn) electrodes. [95, 96, 98, 99]

By the same token, Jambhale et al. functionalized graphene nanosheets with PANI, followed by the addition of metal salts as precursors and subsequent hydrothermal treatment as shown in Fig. 8 (c). This study investigates the utilization of waste toner-derived Fe₃O₄ and its composites with PANI and PPy as electrode materials for SCs. Results showed that the composite synthesized with these conducting polymers achieved the highest specific capacitance of 319 F/g and 286 F/g, respectively, in 4 M KOH electrolyte [96].

3.2.5 Metal oxide/metal (oxide) composites

Composite electrodes that combine various metal oxides (metal) can provide superior mechanical stability, enhancing ion and electron transfer pathways and increasing electroactive surface sites. This leads to improved specific capacitance and energy density [97]. For instance, Liu et al. fabricated Co₃O₄ nanowire/ MnO₂ ultrathin nanosheet composites via a hydrothermal method as shown in Fig. 8 (d), achieving superior SC performance [98]. The architecture composites provided efficient charge storage and transfer capabilities with the synergetic effect between the metal oxides, providing the higher electrochemical properties of the materials.

Cheng et al. presented transition metal oxide–metal nanocomposites anchored on conductive nanowire arrays (Fig. 8). The synthesis involves a three-step process for creating metal oxide-metal composites on conductive nanowire arrays. First, transition metals are electroplated onto carbonated titanium nanowire arrays. Next, these metal-coated nanowires are chemically treated with oxalic acid to form metal oxalates directly on the nanowires. Finally, the metal oxalates are transformed into metal oxides through a calcination process, involving heating the materials in air at high temperatures. In particular, they focused on the combinations such as NiO–Ni, Co₃O₄–Co, Fe₃O₄–Fe, and MnO₂–Mn, which are integrated with conductive TiC–C core-shell nanowires on a Ti alloy sheet represented in Fig. 8 (e). These composites exhibit a unique 3D nanostructure coupled with high electronic conductivity with the exceptional electrochemical performance of the NiO–Ni/C/TiC nanocomposite. Impressively high capacitance and rate capability are demonstrated, with a specific capacitance reaching 1845 F/g at a charge-discharge current density of 5 A/g. Even after undergoing 500 charge-discharge cycles at an extremely high rate of 100 A/g, the composite maintains a substantial specific capacitance of 811.1 F /g [99].

4 Utilizing metal oxide composites in energy storage systems

4.1 Metal oxide composites for supercapacitor

Metal oxide composites are increasingly vital in the development of advanced electrode materials due to their ability to enhance the electrochemical performance of SCs and batteries. These composites improve the internal conductivity of the electrode material and expose many active sites, which are a favor for electrochemical reactions and combinedly to improve the storage performance of the electrode materials.

The flexible electrodes designed for SC applications were crafted using CNT/MnO₂/graphene coatings on carbon cloth. This optimized nanostructure features excellent conductivity and a large surface area. Specifically, the nanostructured MnO₂ offers numerous electroactive sites and short ion transport paths, while the CNTs provide conductive channels that enhance electron transport and improve the kinetics of redox reactions. Together, these features enable the electrode to achieve high areal capacitances without sacrificing rate capability, ensuring a broad working voltage and high energy density in asymmetric SCs. Remarkably, this nano-engineered architecture of CNT/MnO₂/graphene delivers an exceptional areal capacitance of 3.38 F/cm² at a current density of 1 mA/cm² [100].

Metal oxide composites such as sulfur-doped TiO₂ composites combined with TiS₂ and carbon, prepared using the electrospinning method, and its super capacitive performance was reported [101]. The TiS₂/S-TiO₂/C nanofibers feature a uniform, well-dispersed structure within a tightly woven network, where metal oxide and carbon nanoparticles are densely aggregated. These fibers contain nano-scale clusters and display a distinct crystalline structure characteristic of the anatase TiO₂ (101) plane, as shown in Fig. 9 (a-h). The electrospun nanofibers demonstrate pseudo-capacitance and achieve a specific capacity of 114 mAh/g at a high discharge rate of 5000 mA/g. Clearly, the addition of sulfur significantly enhances the capacity of the TiO₂/C nanocomposite electrode materials.

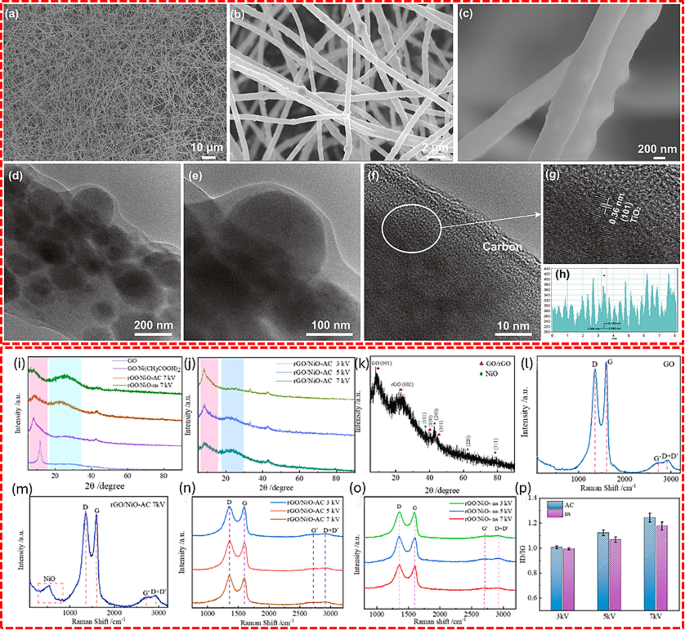

Fig. 9

FE-SEM image of electro-spun TiS₂/S-TiO₂/C nanofiber (a-c), Bright field TEM image fiber network (d-e), The HR-TEM image and lattice fringe spacings of anatase TiO₂ (f-h). XRD pattern of NiO/GO nanocomposite and pristine GO under different experimental conditions (i-k), Raman spectrum of NiO/GO nanocomposite and pristine GO under different experimental conditions (l-o), I_D/I_G ratio under various experimental conditions (p). [101, 102]

The enhanced capacitance of the rGO/NiO composite was also presented, which was fabricated by reducing nickel acetate tetrahydrate and GO using dielectric barrier discharge plasmas. The rGO/NiO composite is characterized by distinctive XRD patterns that differentiate the nanocomposite from pristine GO under various conditions, indicating the crystalline structure and phase purity of the materials. Additionally, Raman spectroscopy reveals the bonding and functional groups within the composite, highlighting its complex molecular interactions and structural integrity, Fig. 9 (i-k). The composite electrode achieved a specific capacitance of 193.3 F/g at 0.5 A/g, indicating improved capacitance of rGO with NiO incorporation [102].

Recently, metal oxide-based core-shell composites are getting more attention due to their porous structure, which favors accessing all the active sites of the electrode material by electrolyte ions. The MCo₂O₄/MCo₂S₄/PPy (M = Cu, Mn) 3D nanoflower core-shell composite is directly grown on nickel foam substrate using a facile hydrothermal method, as shown in Fig. 10 (a-f) [83]. The bimetallic oxides grown on nickel foam almost vertically aligned and covered the entire surface of the substrate. After the pyrole polymerization reaction, a 3D flower-like core-shell structure was formed with the smooth surface of the PPy nanosheets. The prepared nanocomposite exhibits the specific capacitance of 2978.1 F/g for CuCo₂O₄/CuCo₂S₄/PPy and 4713.4 F g^− 1 for MnCo₂O₄/MnCo₂S₄/PPy at the current density of 1 A/g. The capacitance of the MCo₂O₄/MCo₂S₄/PPy (M = Cu, Mn) nanocomposite reaches its maximum compared to the individual counterparts [103]. A flexible asymmetric SC using Fe₃O₄/MWCNT/cellulose nanofiber nano paper through a simple vacuum filtration method for wearable applications. They demonstrated excellent electrical conductivity of 1016.3 S/m without compromising flexibility. The highly conductive, recyclable Fe₃O₄/MWCNT/CNF nano paper exhibits extraordinary gravimetric and areal capacitance of 229.9 F/ g and 735.68 mF/ cm², respectively [104].

Fig. 10

FE-SEM image of the MCo₂O₄@MCo₂S₄@polypyrrole (M = Cu, Mn) nanocomposite (a-f). Physicochemical characterization of Fe₃O₄/MWCNT/cellulose nanofiber composite (g) XRD pattern, (h) FTIR, (i-l) XPS survey spectrum and the core level spectrum of the elements. [103, 104]

4.1.1 Metal atom doped metal oxide composites for supercapacitor

Metal oxide electrodes typically have low ionic and intrinsic electronic conductivity. By doping or making composites with other good conductive active materials will overcome these issues [105]. Doping involves introducing foreign elements into the metal oxide structure, which can alter the electronic properties and improve conductivity. The benefit of using the composite structure of zinc-doped manganese vanadate (MnZn₃(VO₄)₂) and carbon nanofibers (CNFs) over individual compounds is the enhanced electrochemical performance in SCs. The composite electrode exhibited a specific capacitance of 469 F/g at a current density of 0.5 A/g, which is substantially higher than the specific capacitance values of the pristine electrodes. Additionally, the MnZn₃(VO₄)₂ composite electrode demonstrated exceptional retention, maintaining approximately 82.6% of its initial capacitance even after 5000 charge-discharge cycles. This improvement is attributed to the synergistic effects between the MnZn₃(VO₄)₂ and CNFs [106].

The oxygen-deficient Ni-doped V₂O₅ on carbon nanocoils, grown directly on nickel foam (O_v-Ni-V₂O₅ /CNCs/NF), also exhibited improved capacitance behaviors [64]. The synergistic effect of the composite components achieved a maximum specific capacitance of 3485 F/g at a current density of 1 A /g. The full cell was designed using O_v-Ni-V₂O₅ /CNCs/NF as a positive electrode and S-CNCs/NF as a negative electrode, as shown in Fig. 11. The electrochemical study of the device reveals that it operates effectively up to a potential window of 1.5 V, achieving a specific capacitance of 543 F/g at a current density of 1 A/g. Additionally, the performance of this asymmetric SC surpasses that of previously reported systems, as demonstrated by its superior energy and power density metrics. The reported capacitance shows better capacitance than the pure Ni-V₂O₅/CNCs/NF.

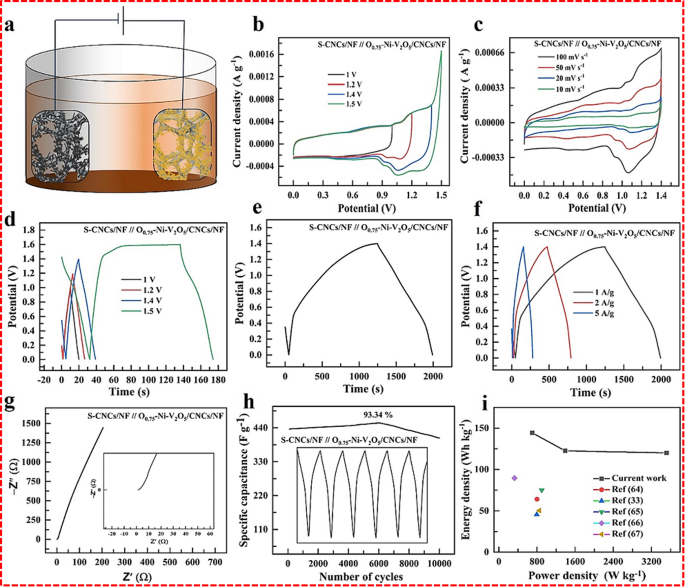

Fig. 11

(a) Schematic representation of S-CNCs/NF // O_v-Ni-V₂O₅ /CNCs/NF SCs, cyclic voltammetry analysis for (b) different potential window, (c) various scan rate, Galvanostatic charge-discharge analysis for (d) different potential window, (e) optimized GCD window, (f) different applied current, (g) Nyquist plot, (h) cyclic stability test, (i) Ragone plot [64]

Furthermore, oxygen-deficient Cu-doped Co₃O₄ in a carbon matrix as a battery-type electrode material for the SC application was reported by Liu et al. [107]. Initially, copper-doped cobalt carbonate hydroxide (Cu-CCH) was grown on a carbon cloth substrate, and converted into a Cu-doped cobalt metal-organic framework using 2-methylimidazole. Calcining Cu-doped Co-MOF in an Ar/H₂ environment to obtain Cu-doped Co₃O₄ then embedded into the carbon network. The electrode material was reduced by using NaBH₄ to produce O_v-Cu-Co₃O₄/C, which achieved the maximum specific capacity of 927 C /g at a current density of 1 A/g. For practical applicability of the electrode material, the full-cell device was fabricated using S-rGO as shown in Fig. 12. The CV and GCD analyses reveal the dynamic electrochemical behaviors and charge-discharge characteristics of the Cu-Co₃O₄/C electrodes. Performance comparisons in energy and power density show its superiority over other metal oxide composites. Additionally, the practical application of this wearable, flexible asymmetric SC is demonstrated by its ability to power a green LED, highlighting its functionality [107]. Similarly, Cu-doped Co₃O₄/CNT for composite SC application as shown in (Fig. 12(j)) was studied, which nanocomposite exhibits outstanding redox behavior with superior structural stability than the Cu-Co₃O₄ [108].

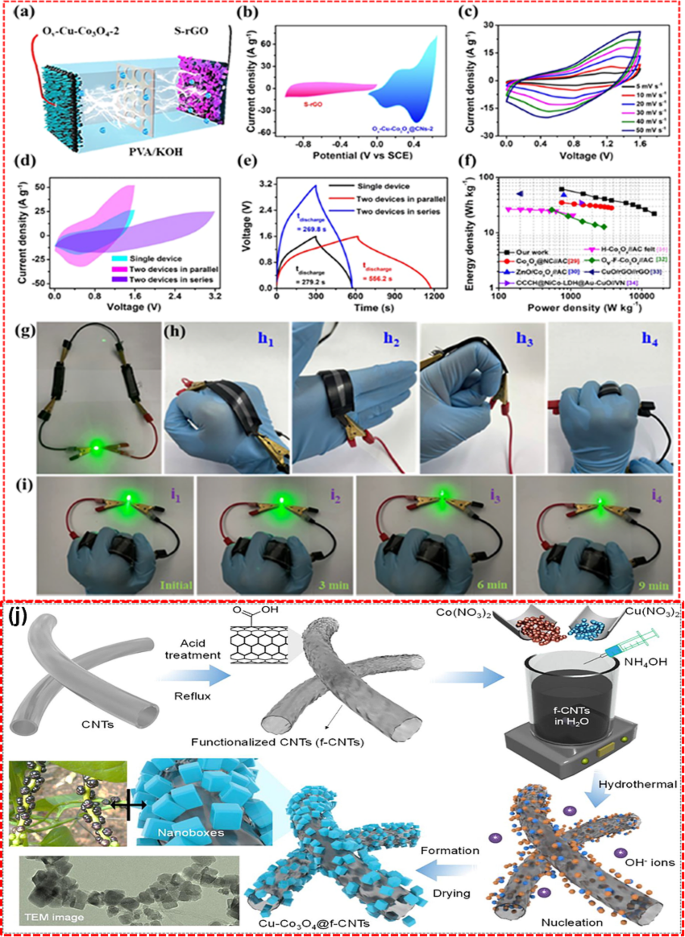

Fig. 12

(a) Schematic representation O_v-Cu-Co₃O₄@C // S-rGO solid state flexible SC, CV analysis of (b) the positive and negative electrodes, (c) different scan rates. (d-e) CV and GCD analysis of a single and two devices connected in parallel and series. (f) Ragone plot, (g-i) practical demonstration of wearable, flexible asymmetric SC by lighting up the green LED. (j) Schematic representation of the hydrothermal preparation process of Cu-Co₃O₄@f-CNTs. [107, 108]

4.1.2 Bimetal oxide-based composites for supercapacitor

In order to further increase the electrochemical performance of metal oxide composites, bimetallic oxides are introduced. The presence of two metal ions can facilitate better electron and ion transport pathways within the electrode material, leading to higher conductivities. In addition, Bimetal oxides often exhibit enhanced structural integrity during the charge-discharge cycles, which helps maintain their shape and functionality over time, thus improving cyclic stability [108]. In this regard, CoMn₂O₄/C hollow spheres were utilized as anode material for the sodium hybrid SC. The CoMn₂O₄/C hollow spheres were synthesized by a simple hydrothermal reaction followed by calcination (Fig. 13(a)) [109]. Carbon hollow spheres (CHS) with mesoporous structures act as robust, non-sacrificial hard templates. CoMn₂O₄ nanosheets are evenly coated over the surface of the CHS, creating a sandwich-like shell configuration. This mesoporous arrangement promotes the infiltration of reactive electrolyte ions, improving their accessibility to the electrode materials. The prepared nanoarchitecture increases the sodium storage ability and reaches the specific capacity of 290 mAh/g at 0.1 A/g. The CoMn₂O₄/CHS shows a higher capacity than the CoMn₂O₄. The NiCo₂O₄/MoS₂/rGO composite structure, prepared by the hydrothermal method as shown in Fig. 13(b) exhibits the exceptional SC performance [110]. Specifically, the composite demonstrated a remarkable specific capacitance of 946 F/g at 1 A/g, improved rate capability, and outstanding electrochemical stability, maintaining 87.3% retention after 5000 charge-discharge cycles. The study reported the high conductivity of graphene and the high capacitance of NiCo₂O₄, is responsible for this superior performance. Furthermore, MXene/NiCo₂O₄ composites for asymmetric SC applications was fabricated, reporting an enhanced energy storage performance than the individual Ti₃C₂T_x and NiCo₂O₄ [111].

Fig. 13

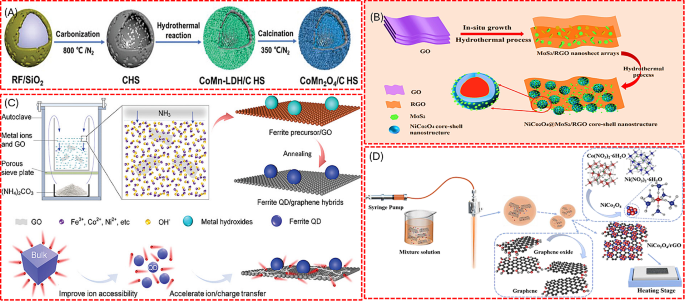

Schematic illustration of hydrothermal preparation of (A) CoMn₂O₄/C hollow spheres, (B) NiCo₂O₄@MoS₂/RGO composite. Schematic representation of preparing (C) NiFe₂O₄ QD/G nanostructure by biomimetic mineralization synthetic method. (D) Binder-free NiCo₂O₄/rGO composites by ultrasonic spray method. [109, 110, 112, 113]

Ferrite quantum dots (QD) on graphene heterostructures using a simple biomimetic mineralization synthetic method was also introduced, as shown in Fig. 13(c) [112]. The metal precursor, dissolved in deionized water with GO powder, underwent ultrasonication. This mixture was autoclaved, followed by calcination at 500 °C in an N₂ atmosphere to yield the metal ferrite QD/ graphene. The prepared ferrite QD/ graphene improves electrical conductivity, ion transport, and active sites. The graphene nanosheets support the ferrite QD that is anchored on it. Here, the graphene nanosheets act as a structural material to strengthen the stability, increase charge transfer ability, and enhance the ion diffusion.

The NiFe₂O₄ quantum dot/graphene nanostructure exhibits an impressive specific capacitance of 697.5 F/g at a current density of 1 A/g. Meanwhile, the binder-free NiCo₂O₄/rGO composite electrode material, produced via an ultrasonic spray method, achieves a higher specific capacitance of 871 F/g at the same current density of 1 A/g [113].

4.1.3 Metal oxide composites-based printed supercapacitor

Wearable and flexible low-power electronic devices are attracted to the next revolution of the electronic world. There is a huge demand for onboard energy storage devices that need to be compatible with recent electronic technology. On the way to producing printed, electronic circuit boards, printed SC technology has also boomed nowadays. Liang et al. fabricated a flexible patterned SC using manganese hexacyanoferrate-manganese oxide and electrochemically reduced graphene oxide (MnHCF-MnO_x/ErGO) as the electrode material by simple screen-printing technique shown in Fig. 14 [114]. MnO_x is integrated into the MnHCF system through an in-situ self-reaction with NH₄F, producing MnHCF- MnO_x that delivers a specific capacitance of 467 F/g at 1 A/g. This system also forms a part of a flexible SC, MnHCF- MnO_x /ErGO, which achieves an areal capacitance of 16.8 mF/cm². Additionally, a graphene/VO_x flexible symmetric SC is developed using a straightforward laser-scribing method. This combination of graphene and vanadium oxides, which feature multiple oxidation states, not only broadens the potential window but also enhances the specific capacitance to 1110 F/g. Notably, the gravimetric capacitance of graphene/VO_x significantly surpasses that of a bare graphene electrode [115].

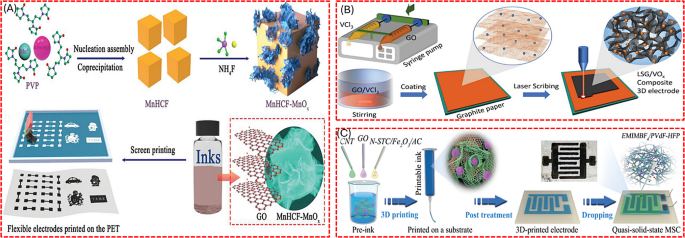

Fig. 14

Pictorial representation of preparing (A) MnHCF-MnO_x/ErGO flexible patterned SC by simple screen-printing technique, (B) Graphene/VO_x flexible symmetric SC by the facile laser-scribing method, (C) CNT, GO and N-STC/Fe₂O₃/AC active materials micro-mesoporous quasi-solid state micro SC by 3D printing technique. [114,115,116]

In addition, a 3D printed micro-mesoporous quasi-solid state micro SC was demonstrated by Lai’s group, as shown in Fig. 14(c). The electrode is prepared as an ink by combining active materials such as CNT, GO, and N-STC/Fe₂O₃/AC. Once printed, the electrode material is densely decorated with ultrafine Fe₂O₃ nanoparticles. This 3D-printed electrode, when paired with an ionogel electrolyte, demonstrates a gravimetric capacitance of 267 F/g at a scan rate of 2 mV/s. Notably, the N-STC/Fe₂O₃ nanocomposites exhibit superior capacitance compared to each of the individual components within the composite [116].

4.2 Metal oxide composites for battery

Metal oxide nanocomposites are pivotal in propelling battery technology forward, acting as essential elements within the energy storage mechanisms of various battery systems. Their application spans lithium-ion (LIB), sodium-ion (NIB), Zinc-ion (ZIB), potassium-ion (KIB), and lithium-sulfur (Li-S) batteries, driving significant advancements in energy storage capabilities [117,118,119]. The dominance of metal oxide composites in battery technology stems from their high surface area, superior electrochemical performance, enhanced ion diffusion rates, adjustable properties, and seamless compatibility with electrolytes, marking them as indispensable in the evolution of battery technologies.

In particular, catalytic activity is crucial and significantly boosts electrochemical performance. Metal oxide composites, blending the catalytic traits of metal oxides with carbon-based materials or catalytic metals, exhibit synergistic effects that amplify catalysis [120]. These composites, with their distinctive surface attributes, electronic structures, and reactivity, emerge as potent catalysts for diverse chemical reactions. Incorporating graphene or CNTs increases active sites and enhances electron transfer, improving catalysis [26].

4.2.1 Anodes

The diverse approaches and technological advancements in synthesizing and applying metal oxide composites for energy storage highlight their crucial role as anodes in batteries [120,121,122,123]. Nanocomposites in battery anodes help buffer volume changes during charge/discharge cycles, reducing material stress and enhancing cycling stability. The controllable conductivity enhance high-rate performance. Additionally, their robust structures maintain integrity under mechanical stresses, prolonging battery life. The hollow porous CoFe₂O₄ nanotube anode from metal–organic frameworks (MOF) was prepared, whose schematic representation of synthesis is shown in Fig. 15 [121]. The CoFe₂O₄ was used as an anode for LIB and its stable capacity arrives at 815 mA h/g at 20 ºC. By adjusting synthesis parameters, the surface area, morphology, and chemistry of composites are finely tuned to enhance the number of active sites and optimize interactions with reactants for improved catalytic efficiency, as evidenced by charge-discharge analysis. A detailed morphological analysis reveals Zn_xCo_3-xO₄ hollow polyhedral structures at the nanoscale, exposing their internal hollow configurations [122]. Additionally, TEM imaging offers a deep dive into the crystal lattice, grain boundaries, and material defects, providing a richer understanding of the metal oxides and their composites. Such insights into atomic arrangement, phase purity, and crystallinity elucidate their diverse electrochemical properties, highlighting their significance in developing advanced energy storage devices with practical applications.

Fig. 15

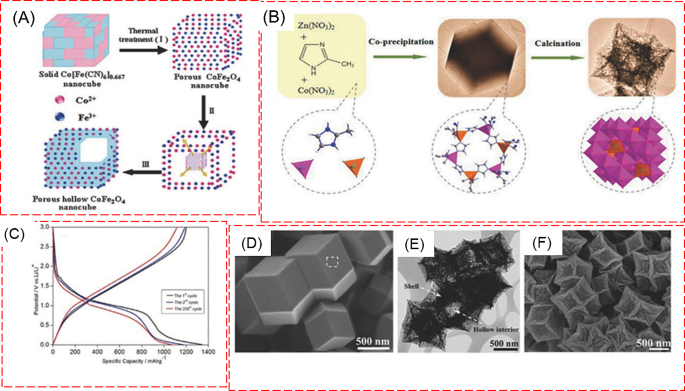

(A, B) Schematic drawing illustrating the preparation CoFe₂O₄ and Zn-Co-ZIFs-0.33 (C) specific capacity analysis of CoFe₂O₄. (D, E, F) FESEM images and TEM images of ZnxCo₃xO₄ hollow polyhedral obtained by annealing Zn-Co-ZIFs-0.33 [121, 122]

A novel TiO₂ decorated MXene composite as LIB anodes was also reported. The limitations of TiO₂, such as low electronic conductivity, were overcome by leveraging the excellent structural stability and superior electronic conductivities of MXenes. Thus, electrochemical tests demonstrated that MXene- TiO₂ nanocomposite anode had faster kinetics and significantly better performance, including a higher capacity of around 200 mAh/g at 0.1 C, compared to pristine TiO₂ anodes [123].

Additionally, extensive research has been conducted on graphene and GO composites. Synthesizing these metal oxides on graphene in various morphologies including nanosheets, nanorods, and complex hierarchical structures has led to improved electrochemical behavior. These structures increase the surface area and offer more active sites for lithium interactions while also shortening the pathways for electron and ion movement, contributing to superior battery performance [124]. V₂O₃ nanoparticles on nitrogen-doped carbon nanosheet arrays in Ni foam were synthesized as anode for LIB, paired with a Li metal foil cathode. This electrode displayed high initial capacities of 984 mAh/g (discharge) and 508 mAh/g (charge), maintaining a capacity of 317 mAh/g after 1000 cycles at 2 A/g. The improved performance, due to increased conductivity and reduced volume expansion, is credited to the nitrogen-doped carbon coating and the structural stability from the tight contact with the Ni foam [125]. On the other hand, Tin oxide (SnO₂) nanoparticles anchored on graphene sheets offer a high specific capacity attributed to the reversible alloying/dealloying reactions of tin with lithium ions, as well as the high surface area of graphene for lithium-ion adsorption. Tin oxide/graphene composites typically exhibit specific capacities ranging from 600 mAh/g to 1000 mAh/g [126]. The specific capacity of tin oxide electrodes is around 700 mAh/g, while the graphene component contributes negligibly to the capacity due to its low lithium storage capability.

A 2D Co₃O₄ nanofoils using GO as a sacrificial template as shown in the Fig. 16 (a) was prepared by hydrothermal method. The synthesized nano foils exhibit a high reversible capacity of 1279.2 mAh/g, after 50 cycles, which represents the significant conversion mechanism from Co₃O₄ to Li₂O and metallic Co [127]. An atomic layer-by-layer Co₃O₄/Graphene Composite was synthesized by Dou et al. as shown in Fig. 16 (b) and the stability analysis was reported along with the comparison of atomically thin mesoporous Co₃O₄ nanosheets (ATMCNs) and its graphene composite as shown in Fig. 16 (c) [128].

Fig. 16

(A, B) illustrates a novel synthesis method for 2D porous Co₃O₄ nanofoils using GO as a sacrificial template. This method leverages the thermal instability of GO and the catalytic ability of Co₃O₄ particles to fabricate the nanofoils, aiming to enhance the performance of lithium-ion battery anodes. (C) Cyclic stability comparison of nanocomposite and graphene measured at a high current density of 2.25 C [127, 128]

Furthermore, mesoporous ZnCo₂O₄ microspheres composed of ultrathin nanosheets cross-linked with metallic NiSi_x nanowires on Ni foam were utilized as anodes for LIB [129]. This composite exhibits high specific capacity, excellent rate capability, and long-term cycling stability when used as an electrode material in LIB. The hierarchical structure provides abundant active sites for lithium-ion storage, while the NiSi_x enhances electron conductivity and structural stability.

4.2.2 Cathodes

Metal oxide composites are indispensable as cathode materials in batteries due to their diverse advantages by offering high energy density, enabling batteries to store substantial amounts of energy efficiently. Moreover, they enhance the stability of cathodes, mitigating issues of structural degradation during charge-discharge cycles, thus prolonging battery lifespan. By incorporating conductive additives, metal oxide composites may improve electron transport within the cathode, optimizing battery performance. Additionally, they facilitate ion diffusion, enabling faster charging/discharging rates, which is crucial for demanding battery applications like electric vehicles and portable electronics. Metal oxide composites serve as crucial cathode materials in LIB, NIB, and ZIB, maintaining high performance over numerous charge-discharge cycles.

Along the way of developing effective cathode materials, graphene-coated α-MnO₂ nanowires for high-performance cathode material for aqueous ZIB was prepared by facile hydrothermal method, as shown in Fig. 17. The stability of the cathode material was enhanced by incorporating rGO, as evidenced by a high capacitance retention of 94% after 3000 cycles. The addition of rGO minimized the dissolution of the cathode and boosted its electrical conductivity, leading to a high capacity of 362.2 mA h/g at a current density of 0.3 A/g after 100 cycles [110]. To further enhance the stability of ZIB, nitrogen was doped into MnO₂. In this study, the stability of ZIB was evaluated at a current density of 5 A/g for both MnO₂ and nitrogen-doped MnO₂ cathodes. The capacitance retention improved from 62 to 83% with the introduction of nitrogen into MnO₂ [130].

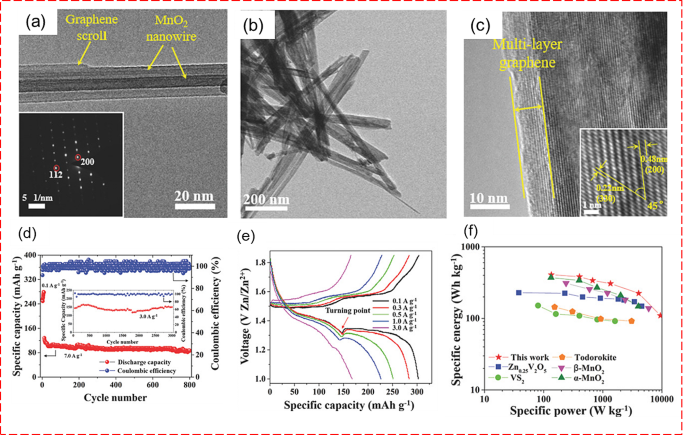

Fig. 17

(a-c) TEM images of α-MnO₂ nanowires with graphene scrolls. (d) stability analysis for 3000 cycles (e) GCD analysis at different current densities. (f) Ragone plot comparison of α-MnO₂ Nanowires with graphene scrolls [145]

In the view of bimetallic transition metal oxide composites, a nonstoichiometric ZnMn₂O₄/carbon composite was employed as a new Zn-insertion cathode material-based aqueous battery with a reversible capacity of 150 mAh /g and a capacity retention of 94% over 500 cycles. The high performance was credited to the remarkable cathode performance from the facile charge transfer and Zn insertion in the structurally robust spinel featuring small particle size and abundant cation vacancies [131]. A high-performance Zn-air battery was reported using Ni-doped Co oxide nanosheets on carbon-fiber paper as an air cathode. This cathode, coupled with a Zn foil anode and 6 M KOH electrolyte, delivered a specific capacity of 655 mAh/g at 30 mA/cm² and achieved a power density of 377 mW/cm², outperforming traditional CoO nanosheets and Pt/C catalysts by 20% [132].

Moreover, complex metal composites, including Al₂O₃ coated LiNi_0·5Mn_1·5O₄ by the solid-state reaction by atomic layer deposition, reported better cyclic stability with capacity retention over 63% after 900 cycles. Note that the bare LiNi_0·5Mn_1·5O₄ can only maintain 75% after 200 cycles. The study also reported temperature-dependent changes in specific capacity where the Al₂O₃ coated LiNi_0·5Mn_1·5O₄ delivered 116 mAh/g at a higher temperature of 55 °C whereas the bare LiNi_0·5Mn_1·5O₄ reduced to 98 mAh/g after 100 cycles respectively [133]. Furthermore, a LIB was constructed using a Li₂ZrO₃ coated LiNi_0·7Co_0·15Mn_0·15O₂ composite cathode paired with a graphite anode, fabricated through the precipitation method. The electrochemical performance of this setup was thoroughly examined, revealing that the composite cathode maintained 73.3% capacity retention even after 1500 cycles at a current rate of C/3 [134].

A thin film of LiCoO₂ cathodes using aluminum oxide coating to suppress the cobalt dissolution from the cathode using different metal oxides was examined. The study concluded that ZrO₂-coated LiCoO₂ could efficiently inhibit cobalt dissolution, resulting in an excellent electrochemical behavior above 4.4 V [135]. Multiple metal oxides (Co₃O₄/rGO, Fe₂O₃/rGO, and CoFe₂O₃/rGO) as cathode materials using Prussian blue analog (PBA)-type MOF (CoCo(CN)₆, FeFe(CN)₆, and FeCo(CN)₆) as precursors for AIB were established with profound significance. Amongst, CoFe₂O₄/rGO exhibits a highly stable charge/discharge with a capacity retention rate of 74% after 500 cycles and promising Coulombic efficiency of 99.6% [136]. Aside from carbon-based composite materials, cobalt oxide/phosphate (Co₃O₄/CoP) composite reported high-performance Li/S cathode electrocatalyst. The Co₃O₄/CoP composite cathode offered high cyclic stability with a very less capacity fading rate of 0.033% per cycle at 1 C rate over 500 cycles [137].

The mechanism of thermal decomposition of the cathode was carefully explored using high-nickel (LiNi_0.87Co_0.05Mn_0.08O₂) composites with loaded nano-Al₂O₃ on conductive carbon for LIBs. The study demonstrates a significant enhancement in the thermal properties of delithiated composite cathodes when paired with electrolytes, showcasing a remarkable 44% reduction in maximum heat flow, decreasing from 5.59 mW m/g to 3.15 mW m/g. Furthermore, the phase transition from spinel to rock salt is noticeably delayed while maintaining comparable electrochemical performance [138]. A nano-seized uniformly compounded FeCoNi and MnO nanoparticles for the low-temperature cycling performance of Li-S batteries is shown in Fig. 18 (a-c). The addition of MnO nanoparticles enhances absorption, and acting as anchors for Li polysulfides by increasing their local concentration around both FeCoNi and MnO nanoparticles [139]. This effectively reduces the shuttle effect and improves cycling stability, especially at low temperatures. At -40 °C and a rate of 0.1 C, the initial discharge capacity reaches 1167.5 mAh/g, maintaining 70.1% capacity after 100 cycles at 0.2 C and its capacity is compared with the composite material as shown in Fig. 18 (d). This study offered a novel strategy for developing high-performance, low-temperature Li-S batteries.

Fig. 18

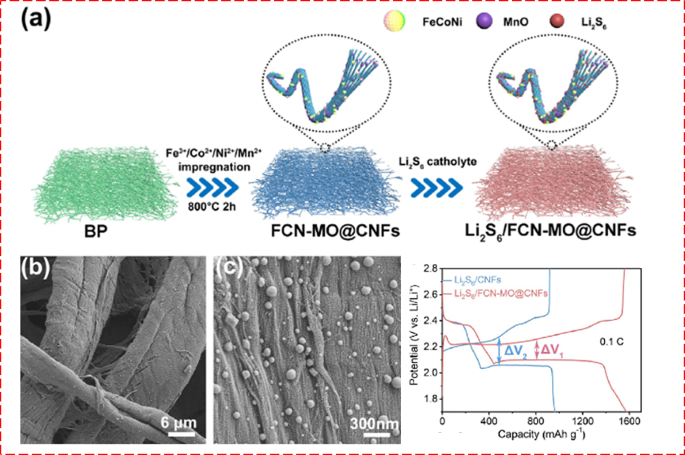

(a) The synthesis process of Li₂S₆/FCN-MO@CNFs.(b-c) SEM images of FCN-MO@CNFs and (d) Constant-current discharge/charge curves of Li₂S₆/CNFs and Li₂S₆/FCN-MO@CNFs [139]

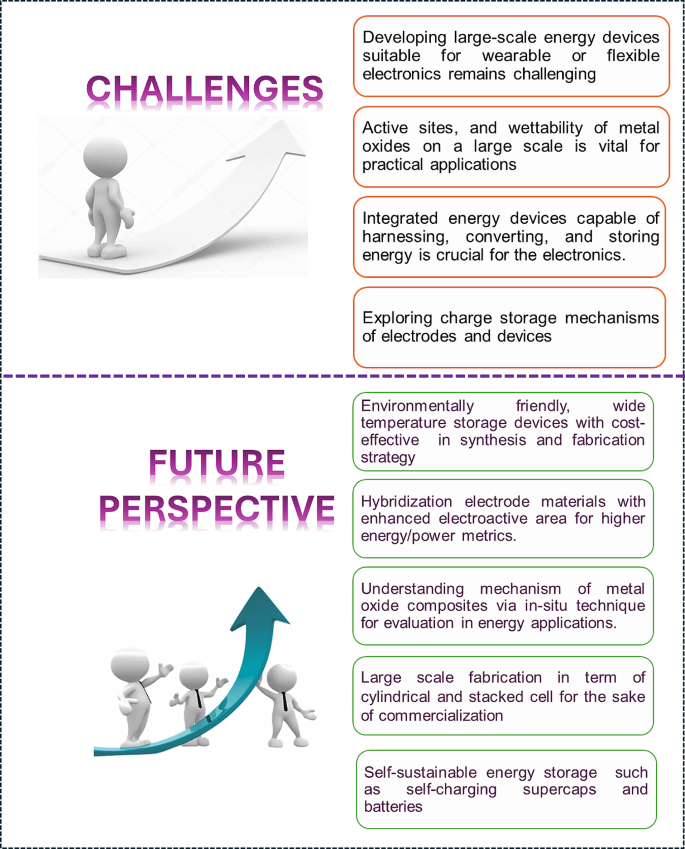

Fig. 19

Challenges and future perspectives for the energy storage devices

Through a simple dry ball-milling method, O3-type Na[Ni_0.6Co_0.2Mn_0.2]O₂ cathode was synthesized, and Al₂O₃ nanoparticle was coated over the cathode material, which provides a high energy density for NIB. The Al₂O₃-coated Na[Ni_0.6Co_0.2Mn_0.2]O₂ cathode demonstrated exceptional performance, boasting a high specific capacity of 151 mA h/g, coupled with enhanced cycling stability and rate capability in a half-cell configuration. Additionally, this cathode innovation was successfully scaled up to a pouch-type full cell, employing a hard carbon anode. Notably, the full cell exhibited superior rate capability and remarkable capacity retention, maintaining 75% of its capacity after 300 cycles. With an impressive energy density of 130 W h/kg, this advancement underscores the potential of Al₂O₃-coated cathodes and hard carbon anodes in pushing the boundaries of battery technology towards more efficient and sustainable energy storage solutions [140].

The significance of metal oxide composites in electrochemical energy storage systems has been thoroughly demonstrated, showcasing their specific capacity, cycle life, and rate capability. However, to develop high-performance materials for future energy applications, several critical factors must be considered and addressed.

5 Factors for consideration for designing metal oxide composites

For optimal electrochemical energy storage, electrode materials should exhibit several key characteristics: (i) a large specific surface area to provide abundant electroactive sites, (ii) high electrical conductivity for fast charging and discharging, (iii) robust electrochemical stability, (iv) a broad operational temperature range for functionality under extreme conditions, (v) a wide operating voltage window suitable for both aqueous and ionic electrolytes, and (vi) cost-effectiveness to enable scaling from laboratory to industrial production.

In this review article, we explore the preparation methodologies and various configurations of metal oxide composites for electrodes of energy storage devices, including supercapacitors (SCs) and batteries. Currently, energy storage devices face challenges such as suboptimal energy/power ratings and limited cycle life. Addressing these issues requires focused research on developing diverse strategies to enhance system outcomes through innovative electrode material design, which is essential for advancing the performance and longevity of energy storage technologies.

Designing low-dimensional nanostructured electrode materials with high surface areas and differentiated morphologies is crucial for enhancing the electrochemical performance of these devices. Especially for SCs, the potential limit can significantly vary depending on the electrolyte system. Therefore, designing electrodes that work effectively across various electrolyte types and can operate at higher potential voltages is crucial for achieving high-performance devices. Additionally, designing electrodes with enhanced flexibility is vital for their application in flexible electronics.

Moreover, multi-functionality in energy materials can enhance their attractiveness in energy storage applications. These functionalities could include integration into electrochromic devices, AC line-filtering, and the development of self-healing, shape-memory, and self-charging energy cells, each feature adding value and expanding the potential applications and effectiveness of energy storage devices.

For commercialization, it is crucial to consider other complex factors beyond the basic functionality of the product. Self-discharge is a significant limitation of energy storage devices, hindering their practicability. In batteries, the self-discharge behavior is minimal, whereas in SCs, it is high, complicating their use in real-time applications due to rapid energy loss over time. Enhancements in electrode materials, electrolytes, and separators, such as adopting solid electrolytes and innovative membranes with sulfonated functional groups, are crucial to mitigate self-discharge rates.

Furthermore, optimizing performance metrics is key to improving energy efficiency, cycle life, and cost-effectiveness. Developing scalable manufacturing processes that streamline production and reduce costs is vital for the economic viability of these devices at an industrial scale. Additionally, adhering to regulatory standards is crucial as they provide clear frameworks for performance, safety, and environmental impact, thereby playing a pivotal role in the broader market adoption of energy storage technologies.

6 Conclusion and future perspectives

In this review, we have examined the role of metal oxide composites as electrodes in energy storage applications, focusing on SCs and batteries with varying architectures and designs. We discussed various methodologies for preparing metal oxides and their composite derivatives, emphasizing the integration of diverse components. For optimal energy system development, electrode materials should have a high surface area, numerous active sites for electrochemical charging/discharging, and a specific surface morphology to minimize ion diffusion length. The schematics for the challenges and the future perspectives of the metal oxides composites for the energy storage applications is provided in Fig. 19.

Despite significant research efforts in engineering metal oxide composites, there remain substantial challenges to developing efficient systems. The future direction of existing research technologies includes:

• i) The development of large-scale energy devices suitable for wearable or flexible electronics remains a formidable challenge. It is also essential to devise environmentally friendly, low-temperature, and cost-effective synthesis methods. Additionally, enhancing the surface area, active sites, and wettability of metal oxides on a large scale is vital for practical applications.

• ii) Improving the conductivity of metal oxides through hybridization with carbonaceous materials and other electroactive substances can lead to synergistic effects. These enhancements can increase surface area, create porosity, facilitate electron/proton conduction, and add pseudocapacitance.

• iii) Designing integrated energy devices capable of harnessing, converting, and storing energy is crucial for the electronics. Self-charging energy devices, particularly using metal oxides with their high performance and tunable characteristics, show promise for powering portable, and implantable electronics, though research in this area is still in its early stages.

• iv) Exploring the in-depth charge/storage mechanisms of electrodes/devices through operando spectroscopic studies and theoretical investigations is an emerging research area. Understanding the roles of modified metal oxide-based materials in energy applications can significantly enhance energy storage performance.

• v) Exploring the hybridization of metal oxides with emerging low-dimensional materials such as MXenes, black phosphorus, and transition metal dichalcogenides promises high-performance energy storage devices. Determining the optimal ratios and combinations of these materials with metal oxides is crucial for developing superior electrode materials.

In summary, while recent developments and strategies in metal oxides and their composites for energy storage devices show promise, there is a continuing need for further research to transition these technologies to industrial-scale applications effectively. This review underscores both the current achievements and the considerable potential for future advancements in this rapidly evolving field.
