Skip to main content

Peptide hydrogel with self-healing and redox-responsive properties


We have rationally designed a peptide that assembles into a redox-responsive, antimicrobial metallohydrogel. The resulting self-healing material can be rapidly reduced by ascorbate under physiological conditions and demonstrates a remarkable 160-fold change in hydrogel stiffness upon reduction. We provide a computational model of the hydrogel, explaining why position of nitrogen in non-natural amino acid pyridyl-alanine results in drastically different gelation properties of peptides with metal ions. Given its antimicrobial and rheological properties, the newly designed hydrogel can be used for removable wound dressing application, addressing a major unmet need in clinical care.


Widely accepted wet-to-dry wound dressings involve applying moist saline gauze over the wound bed to allow for moisture to evaporate and the gauze to adhere to tissue. Replacement of such dressings requires removal of the dried gauze and damages the healing wound [1,2,3] and is traumatic and painful for patients. Keeping the wound moist is necessary to promote healing [4], thus hydrogels that inherently retain moisture have been successfully used in wound dressings [5,6,7,8,9]. Antimicrobial hydrogels are especially popular because they provide both a moist environment and antimicrobial protection, resulting in improved healing outcomes [10, 11]. Moreover, hydrogels are relatively easy to replace if material could be dissolved in saline solution, yet traditional hydrogels show long dissolution times [12]. In this work, we set out to create a redox-sensitive, self-healing, antimicrobial and cytocompatible hydrogel for wound healing. While materials that possess some of these properties individually have been reported before [13,14,15,16,17,18,19,20,21,22,23,24,25] none of the reported materials possess all the above-mentioned properties simultaneously. Self-healing is essential for delivery of the hydrogel via a syringe, antimicrobial properties and cytocompatibility are essential for safe wound healing and redox switching offers an excellent approach to removal of the gel upon addition of a mild reductant. We started our design using a previously established antimicrobial peptide [26]. In contrast to polymer-containing hydrogels, those made of peptides are generally cytocompatible [7, 27,28,29]. The small size of the peptides give them an advantage over natural protein materials because modifications (such as non-natural amino acids and RGD motif) can be easily incorporated [30]. We have employed a well-established strategy to create self-healing materials via the use of metal ions to assemble hydrogels through formation of metal complexes [31,32,33,34,35,36,37,38,39]. We chose Cu(II) for non-covalent crosslinking because of its redox properties and ability to accelerate wound healing, including healing of diabetic ulcers and burn wounds [40,41,42,43,44,45].

Results and discussion

Peptide F9 with non-natural amino acid 4ʹ-pyridyl-alanine forms a hydrogel in the presence of Cu(II) ions

Recently, we developed a series of 9-residue peptides containing an unnatural amino acid for metallohydrogel preparation. We have shown that our basic design allows for semi-rational tuning of rheological properties of the resulting materials [26, 46] (Additional file 1: Table S1). We found that peptides with phenylalanine cores provide excellent stiffness and versatility in supporting metal coordination.

Therefore, in our present studies we focus on F9 as a core sequence. To facilitate cross-linking we have introduced pyridyl-alanine residues (3ʹPyA and 4ʹPyA) at both termini (Fig. 1). The resulting peptides, F9 3ʹPyA and F9 4ʹPyA, were used in subsequent studies. Cu(II) was chosen as a redox active crosslink based on its cytocompatibility (extensive utilization of copper in wound dressings [40, 47, 48] and intrauterine devices [49]) and previous success in designing redox-responsive polymers using pyridine [50], imidazole [51], 2,2ʹ-bipyridine ligand [52] and a peptide which coordinates copper ions through glutamate residues [53]. In the presence of Cu(II) F9 4ʹPyA forms a strong gel. Location of the nitrogen in the pyridyl ring has a major impact on the structure of peptides with pyridyl-alanine side chains (Fig. 1A, B, Additional file 1: Table S1) [26]: F9 4ʹPyA assembles into a hydrogel in the presence of Cu(II), however the same sequence with 3ʹPyA does not form a gel with Cu(II) (opposite to what we observed for Ag(I) ions). Given the similar coordination geometry preferences of Cu(I) and Ag(I) that are distinct from Cu(II), this observation supports the notion that the gelation properties are almost exclusively supported by the proper metal–ligand interactions and the peptide assemblies themselves are quite rigid as they are unable to accommodate metals in different redox states without major structural reorganization. Positioning of the metal-binding residue has a major impact on the gelation properties: placing 4ʹPyA in positions 2 and 8 of the nine amino acid peptide sequence (F9 (2,8) 4ʹPyA) or using D-4'PyA (F9 D-4ʹPyA) leads to reduced peptide hydrogelation (Additional file 1: Table S1). Surprisingly, despite multiple precedents that successfully utilize alternating hydrophobic residue-lysinen patterns for the design of hydrogel-forming peptides, replacement of arginine residues with lysine (FK9 4ʹPyA) is quite detrimental to gel formation (Additional file 1: Table S1). This is likely due to the short sequence length of the F9 family of peptides.

Fig. 1
figure 1

Nine-residue peptides with non-natural amino acids discussed in this work. A F9 3ʹPyA forms a gel with Ag(I) but not with Cu(II). B F9 4ʹPyA forms a gel in the presence of Cu(II) but no gel with Cu(I) or Ag(I). C Evolution of storage modulus for hydrogels containing 1 wt% peptide (P = F9 4ʹPyA) and 0.5 equiv Cu(II) in buffer with and without ascorbate present (5 equiv with respect to copper)

Peptide hydrogel has antimicrobial properties with and without Cu(II)

The growth of Gram-negative bacteria, E. coli (ATCC 25922), was inhibited by hydrogels with and without copper ions but control samples containing only Cu(II) did not prevent bacterial growth (Additional file 1: Fig. S1A). Thus, Cu(II) ions serve a role of driving self-assembly of peptides into 3D hydrogels, enhancing their stability, but the antimicrobial properties of the hydrogel come from the peptide itself. Hydrogel samples incubated with E. coli cultures remain assembled and do not dissolve in the presence of bacteria, supporting the potential of the material as an antimicrobial dressing (Additional file 1: Fig. S1B).

Cu(II)-Hydrogel assemblies are not cytotoxic

Due to the lack of cytotoxicity in similar peptide based hydrogels, as well as the extensive utilization of copper in wound dressings [40, 47, 48] and intrauterine devices [49], we anticipated excellent cytocompatibility of the copper-containing hydrogel. However, it is known that Cu(II) could participate in Fenton chemistry and produce OH radicals [54], therefore we wanted to evaluate cytotoxicity of copper and the hydrogel material. We prepared hydrogel-copper extracts and samples containing only Cu(II) by incubating with media for 72 h at 37 °C. Next, 3T3 mouse fibroblast cells (model of skin cells [55]) were treated with hydrogel extracts and their viability measured by resazurin assay. Samples prepared by soaking hydrogels (F9 4ʹPyA with Cu(II) and without Cu(II)) showed that release products from the material (peptide and copper) are not cytotoxic (Additional file 1: Fig. S2). Control samples, containing just Cu(II) ions, demonstrated that this metal is not cytotoxic for fibroblasts at the concentrations tested.

Copper reduction significantly weakens the hydrogel

We performed an experiment where we used Cu(I) for gel formation or reduced Cu(II) to Cu(I) in the gel that had been preformed and observed much lower Gʹ values (Table 1 and Additional file 1: Table S2). In this experiment, F9 4ʹPyA was mixed with Cu(II), buffer containing ascorbate (5 equiv) was added and then evolution of the storage modulus was measured over time. Under such conditions all copper reduced quickly to Cu(I) and remained reduced after 1 h (as confirmed by BCA assay, Additional file 1: Fig. S3), therefore Gʹ values reported in Table 1 for peptide + 0.5 equiv Cu(II) + ascorbate represent peptide with Cu(I). In addition to rheological measurements, we changed the stiffness of the hydrogel on a larger scale by reducing Cu(II) to Cu(I) and visually show that 5 min incubation with a reductant is enough to achieve dissolution of the hydrogel (Fig. 2A). Without reducing the copper crosslink, the hydrogel remained stiff even after 24 h (Additional file 1: Fig. S4). To confirm that the oxidation state of copper makes a large effect on stiffness of the hydrogel, we used Cu(I) solution prepared from CuCl and measured rheological properties for F9 4ʹPyA with Cu(II) or Cu(I) (Additional file 1: Table S2).

Table 1 Rheological properties of hydrogels (1 wt% of peptides) measured at 0.5% strain, 25 °C after 1 h
Fig. 2
figure 2

A hydrogel formed from F9 4ʹPyA and Cu(II) dissolves after 5 min when ascorbate is added. A Vials containing hydrogel samples assembled using F9 4ʹPyA (1 wt%) and 1 equiv of Cu(II) in buffer (50 mM HEPES, pH 8). Hydrogel samples (300 µL) were set by incubation at 37 °C overnight and then the buffer (50 mM HEPES, 5 mM NaCl, pH 8) containing (vial 2) or not (vial 1) ascorbate (5 equiv vs Cu(II)) was added and the picture taken in 5 min. B EPR spectra acquired at room temperature of the hydrogel formed by F9 4ʹPyA and 1 equiv Cu(II). Red spectrum corresponds to 7 mM peptide/copper (1 wt% peptide) and black spectrum shows sample after reduction of Cu(II) (3.5 mM peptide/copper) to Cu(I) by ascorbate (5 equiv)

EPR studies

Reduction of Cu(II) complexes to Cu(I) by ascorbate has been demonstrated before [52, 56, 57]; here we established the number of equivalents of ascorbate and time needed to achieve complete reduction in our copper/peptide system. We previously used EPR (electron paramagnetic resonance) to observe copper/peptide reduction by 2,6-dimethoxyphenol [58]. In this work, we used room temperature EPR to confirm that change in hydrogel stiffness is due to reduction of paramagnetic Cu(II) to diamagnetic Cu(I). Hydrogel samples were prepared using F9 4ʹPyA (1 wt%) and substoichiometric Cu(II) (to avoid contribution of the unbound metal to the spectra). To half of the mixture, we added buffer with ascorbate to achieve hydrogel dissolution, mimicking conditions in Fig. 2A. EPR spectra in Fig. 2B show that change in stiffness is due to reduction of Cu(II) crosslink to Cu(I).

Ratio of metal ion to peptide

To establish the optimal metal:peptide ratio we measured sample ellipticity at 220 nm while keeping the peptide concentration constant and systematically varying the Cu(II) concentration. When using high concentrations of the peptide (0.5 wt%) we observed significant contribution of phenylalanine exciton coupling to circular dichroism (CD) spectra (Additional file 1: Fig. S5) [59]. To minimize this problem, we prepared samples that contained 100 µM F9 4ʹPyA instead of 7 mM (1 wt%) concentration (Fig. 3A and Additional file 1: Fig. S6). Based on these spectra, the ratio of Cu(II):peptide is 1:2, which is consistent with four 4ʹPyA ligands around each Cu(II) center, presumably with water ligands completing a distorted octahedral coordination geometry. It is possible that the ratio of peptide:copper is different when a higher concentration of peptide is used. To avoid contribution of exciton coupling to the spectra, we prepared hydrogel samples using peptides with a leucine core instead of phenylalanine (Additional file 1: Fig. S7). Leucine peptide L9 4ʹPyA forms a gel in the presence of Cu(II) as shown in Additional file 1: Table S1 and is a good substitute for CD studies. Using L9 4ʹPyA we also observed that 0.5 equiv of Cu(II) is enough to form a hydrogel and higher concentrations of Cu(II) do not yield higher CD signal. This result is also consistent with Cu(II):peptide ratio of 1:2. We further confirmed the ratio of Cu(II):peptide as 1:2 using rheological studies (Fig. 3B).

Fig. 3
figure 3

CD analysis and rheology data with variable [Cu(II)] showing that the ratio of F9 4ʹPyA peptide and Cu(II) is 2 to 1. A Correlation of mean residue ellipticity (MRE) at 220 nm and copper concentration. Final concentration of peptide is 100 µM; buffer 5 mM HEPES, pH 8; pathlength of cuvettes 1 mm. Samples were prepared by incubating peptide, Cu(II) in buffer at 37 °C for 3 h. For full CD spectra see Additional file 1: Fig. S5; B Evolution of storage modulus over time. Gels were prepared by dissolving 2 wt% F9 4ʹPyA and Cu(II) in water and then equal volume of the buffer (75 µL; 100 mM HEPES, pH 8) was added

The gel formed by F9 4ʹPyA and copper is self-healing

Given the hydrogel lacks covalent crosslinks, it can recover its storage modulus after applying strain; hydrogels with such characteristics are self-healing and can be delivered using a syringe, offering very desirable therapeutic applications [34, 60,61,62]. In this work, we demonstrate that developed hydrogel with Cu(II) crosslinks is self-healing. For shear recovery test, the hydrogel sample formed by mixing F9 4ʹPyA (1 wt%) and Cu(II) (1 equiv) was subjected to strain for 30 s followed by an oscillation time sweep experiment for 2 h to check the sample recovery. We observed at least 5 cycles of recovery for the hydrogel (Fig. 4 and Additional file 1: Table S3). Hydrogels assembled from F9 4ʹPyA (1 wt%) and Cu(II) (0.5 equiv) also demonstrated self-healing behaviour (Additional file 1: Fig. S8).

Fig. 4
figure 4

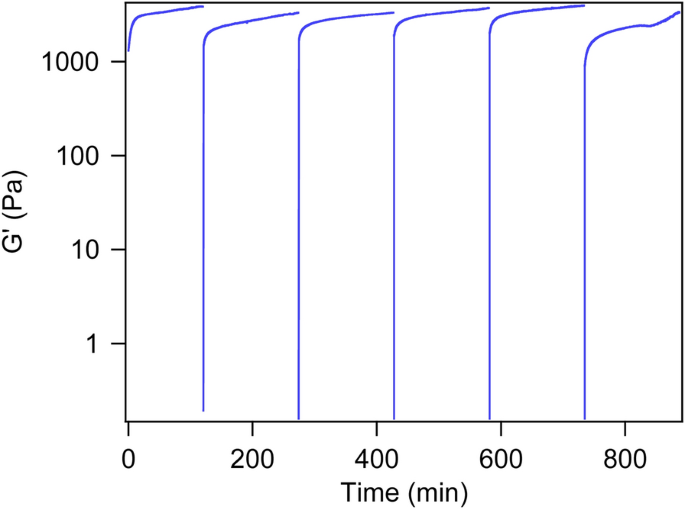

Shear recovery of the hydrogel prepared from F9 4ʹPyA (1 wt%) with Cu(II) (1 equiv) in buffer (50 mM HEPES, pH 8). Hydrogel was subjected to 1000% strain at 6.283 rad/s for 30 s, 25 °C, followed by an oscillation time sweep experiment (0.5% strain) for 2 h to check the sample’s recovery after shear. The numbers for the hydrogel samples reported for 2-h recovery are in Additional file 1: Table S3

Peptide assemblies with Cu(II) have a β-sheet secondary structure and form fibrils

To probe the secondary structure of the peptide we performed a CD study (Fig. 5A). Because of exciton coupling due to Phe residues in the sequence (Additional file 1: Fig. S5), we used L9 4ʹPyA instead of F9 4ʹPyA. L9 4ʹPyA in the presence of Cu(II) showed a CD signature characteristic of β-sheets. Transmission electron microscopy (TEM) images of F9 4ʹPyA with Cu(II) (Fig. 5B) show the formation of fibril-like structures as expected.

Fig. 5
figure 5

Peptide assembles into β-sheets in the presence of Cu(II) and forms fibrils. A CD spectra of L9 4ʹPyA peptide with 1 equiv of Cu(II). Hydrogel samples were assembled from L9 4ʹPyA (1 wt%, 7.5 mM) with (P + Cu(II)) or without Cu(II) (P) in buffer (50 mM HEPES, pH 8), incubated overnight at 37 °C and the spectra were measured using 0.1 mm cuvette. B TEM image showing the fibrils of the hydrogel formed from F9 4ʹPyA (1 wt%) and Cu(II) (1 equiv) in buffer

Computational modeling

Many metallohydrogels with various sequences have been reported, yet structural studies of these assemblies remain very scarce [63]. To fully advance our understanding of metallohydrogels we must understand the structural basis for this function. We used experimental data to build a high-quality structure for computational modeling. The equilibrated structure of the metal-free hydrogel derived from 200 ns all-atom MD simulations is shown in Fig. 6A. It is a two-layer sandwich like structure (Additional file 1: Fig. S9) stabilized by non-covalent interactions such as hydrogen bonding and π–π stacking. For instance, the top and bottom layers connected by π–π stacking between the Phe residues of the peptide. This structure is further stabilized by the strong hydrogen bonding between the amide and carbonyl groups of the two adjacent strands. Additionally, all positively charged Arg residues of these peptides are oriented upwards perpendicular to the plane of the hydrogel. They interact with solvent water molecules through hydrogen bonding. Furthermore, the terminal 4ʹPyA groups interact with each other through π–π stacking. This structure contains 96.3% \(\beta\) sheet character. The interactions of the Cu(II) ion with the 4ʹPyA residues of this structure were investigated using more accurate hybrid quantum mechanics/molecular mechanics (QM/MM) optimizations. In the optimized structure, two pyridyl alanine residues from different peptides coordinate to the metal ion at the equatorial positions, while the solvent water molecule occupies the axial position (Fig. 6B). This complex exists in a square-pyramidal conformation. This specific binding mode could be the reason that the peptide with 3ʹPyA ligands are unable to form hydrogels in the presence of the Cu(II) ion. The pyridyl rings of these residues are sterically hindered to orient at the equatorial position needed for the metal binding.

Fig. 6
figure 6

Computational model of the peptide-based hydrogel without (A) and with (B) copper(II) ion


We have rationally designed a short, nine-residue peptide F9 4ʹPyA that assembles into a redox-responsive, antimicrobial metallohydrogel upon addition of Cu(II). The resulting self-healing material can be rapidly reduced by ascorbate under physiological conditions and demonstrates a remarkable 160-fold change in hydrogel stiffness upon reduction. Cu(II)- F9 4ʹPyA gel undergoes shear-thinning under strain with complete gelation recovery once the strain has been removed. While hydrogels with various properties have been reported before, this work, to our knowledge, provides the first example of the material that combines antimicrobial, redox-active and self-healing properties. The computational modeling provided information regarding the coordination mode of Cu(II) and the ligands in the hydrogel, and will help to guide future designs of hydrogels. Nine-residue peptides are simple and inexpensive to produce, opening the path to the large-scale production of these materials. Given its antimicrobial and rheological properties, the newly designed hydrogel can be used for removable wound dressing application, addressing a major unmet need in clinical care.

Availability of data and materials

The datasets used and/or analysed during the current study are available from the corresponding author on reasonable request.





Circular dichroism


Electron paramagnetic resonance


  1. C.A. Fleck, Why “wet to dry”? J. Am. Col. Certif. Wound Spec. 1(4), 109–113 (2009). (Epub 2009/12/01)

    Article  Google Scholar

  2. A.J. Wodash, Wet-to-dry dressings do not provide moist wound healing. J. Am. Col. Clin. Wound Spec. 4(3), 63–66 (2012). (Epub 2012/09/01)

    Article  Google Scholar

  3. L.J. Cowan, J. Stechmiller, Prevalence of wet-to-dry dressings in wound care. Adv. Skin Wound Care 22(12), 567–573 (2009). (Epub 2009/11/26)

    Article  Google Scholar

  4. F.K. Field, M.D. Kerstein, Overview of wound healing in a moist environment. Am. J. Surg. 167(1A), 2S-6S (1994). (Epub 1994/01/01)

    Article  CAS  Google Scholar

  5. H. Hamedi, S. Moradi, S.M. Hudson, A.E. Tonelli, Chitosan based hydrogels and their applications for drug delivery in wound dressings: a review. Carbohydr. Polym. 199, 445–460 (2018). (Epub 2018/08/26)

    Article  CAS  Google Scholar

  6. R. Rodríguez-Rodríguez, H. Espinosa-Andrews, C. Velasquillo-Martínez, Z.Y. García-Carvajal, Composite hydrogels based on gelatin, chitosan and polyvinyl alcohol to biomedical applications: a review. Int. J. Polym. Mater Polym. Biomater. 69(1), 1–20 (2020).

    Article  CAS  Google Scholar

  7. J. Li, R. Xing, S. Bai, X. Yan, Recent advances of self-assembling peptide-based hydrogels for biomedical applications. Soft Matter 15(8), 1704–1715 (2019). (Epub 2019/02/07)

    Article  CAS  Google Scholar

  8. A. Francesko, P. Petkova, T. Tzanov, Hydrogel dressings for advanced wound management. Curr. Med. Chem. 25(41), 5782–5797 (2018). (Epub 2017/09/22)

    Article  CAS  Google Scholar

  9. R.C. Op’t Veld, X.F. Walboomers, J.A. Jansen, F.A.D.T.G. Wagener, Design considerations for hydrogel wound dressings: strategic and molecular advances. Tissue Eng. Part B Rev. (2020).

    Article  Google Scholar

  10. C.M. Gonzalez-Henriquez, M.A. Sarabia-Vallejos, J. Rodriguez-Hernandez, Advances in the fabrication of antimicrobial hydrogels for biomedical applications. Materials (Basel) 10(3), 232 (2017).

    Article  CAS  Google Scholar

  11. A.S. Veiga, J.P. Schneider, Antimicrobial hydrogels for the treatment of infection. Biopolymers 100(6), 637–644 (2013)

    Article  CAS  Google Scholar

  12. H. Lu, L. Yuan, X. Yu, C. Wu, D. He, J. Deng, Recent advances of on-demand dissolution of hydrogel dressings. Burns Trauma 6, 35 (2018). (Epub 2019/01/09)

    Article  Google Scholar

  13. C. Cao, M. Cao, H. Fan, D. Xia, H. Xu, J.R. Lu, Redox modulated hydrogelation of a self-assembling short peptide amphiphile. Chin. Sci. Bull. 57(33), 4296–4303 (2012).

    Article  CAS  Google Scholar

  14. J.P. Wojciechowski, A.D. Martin, P. Thordarson, Kinetically controlled lifetimes in redox-responsive transient supramolecular hydrogels. J. Am. Chem. Soc. 140(8), 2869–2874 (2018).

    Article  CAS  Google Scholar

  15. C.J. Bowerman, B.L. Nilsson, A reductive trigger for peptide self-assembly and hydrogelation. J. Am. Chem. Soc. 132(28), 9526–9527 (2010).

    Article  CAS  Google Scholar

  16. L. Aulisa, H. Dong, J.D. Hartgerink, Self-assembly of multidomain peptides: sequence variation allows control over cross-linking and viscoelasticity. Biomacromol 10(9), 2694–2698 (2009). (Epub 2009/08/27)

    Article  CAS  Google Scholar

  17. C. Ren, Z. Song, W. Zheng, X. Chen, L. Wang, D. Kong, Z. Yang, Disulfide bond as a cleavable linker for molecular self-assembly and hydrogelation. Chem. Commun. 47(5), 1619–1621 (2011).

    Article  CAS  Google Scholar

  18. L. Lv, H. Liu, X. Chen, Z. Yang, Glutathione-triggered formation of molecular hydrogels for 3D cell culture. Colloids Surf. B Biointerfaces 108, 352–357 (2013). (Epub 2013/04/17)

    Article  CAS  Google Scholar

  19. K. Tsuchiya, Y. Orihara, Y. Kondo, N. Yoshino, T. Ohkubo, H. Sakai, M. Abe, Control of viscoelasticity using redox reaction. J. Am. Chem. Soc. 126(39), 12282–12283 (2004).

    Article  CAS  Google Scholar

  20. N. Falcone, H.B. Kraatz, Supramolecular assembly of peptide and metallopeptide gelators and their stimuli-responsive properties in biomedical applications. Chemistry 24(54), 14316–14328 (2018).

    Article  CAS  Google Scholar

  21. Z. Sun, Z. Li, Y. He, R. Shen, L. Deng, M. Yang, Y. Liang, Y. Zhang, Ferrocenoyl phenylalanine: a new strategy toward supramolecular hydrogels with multistimuli responsive properties. J. Am. Chem. Soc. 135(36), 13379–13386 (2013). (Epub 2013/08/30)

    Article  CAS  Google Scholar

  22. N. Falcone, S. Basak, B. Dong, J. Syed, A. Ferranco, A. Lough, Z. She, H.B. Kraatz, a ferrocene-tryptophan conjugate: the role of the indolic nitrogen in supramolecular assembly. ChemPlusChem 82(10), 1282–1289 (2017). (Epub 2017/10/01)

    Article  CAS  Google Scholar

  23. B. Adhikari, H.B. Kraatz, Redox-triggered changes in the self-assembly of a ferrocene-peptide conjugate. Chem. Commun. 50(42), 5551–5553 (2014). (Epub 2014/03/29)

    Article  CAS  Google Scholar

  24. F. Peng, G. Li, X. Liu, S. Wu, Z. Tong, Redox-responsive gel−sol/sol−gel transition in poly(acrylic acid) aqueous solution containing Fe(III) ions switched by light. J. Am. Chem. Soc. 130(48), 16166–16167 (2008).

    Article  CAS  Google Scholar

  25. Y. Zhang, B. Zhang, Y. Kuang, Y. Gao, J. Shi, X.X. Zhang, B. Xu, A redox responsive, fluorescent supramolecular metallohydrogel consists of nanofibers with single-molecule width. J. Am. Chem. Soc. 135(13), 5008–5011 (2013). (Epub 2013/03/26)

    Article  CAS  Google Scholar

  26. A. Douza, J.H. Yoon, H. Beaman, P. Gosavi, Z. Lengyel-Zhand, A. Sternisha, G. Centola, L.R. Marshall, M.D. Wehrman, K.M. Schultz, M.B. Monroe, O.V. Makhlynets, Nine-residue peptide self-assembles in the presence of silver to produce a self-healing, cytocompatible antimicrobial hydrogel. ACS Appl. Mater. Interfaces 12(14), 17091–17099 (2020). (Epub 2020/03/11)

    Article  CAS  Google Scholar

  27. W. Ahn, J.-H. Lee, S.R. Kim, J. Lee, E.J. Lee, Designed protein- and peptide-based hydrogels for biomedical sciences. J. Mater. Chem. B. 9(8), 1919–1940 (2021).

    Article  CAS  Google Scholar

  28. A.M. Jonker, D.W.P.M. Löwik, J.C.M. van Hest, Peptide- and protein-based hydrogels. Chem. Mater. 24(5), 759–773 (2012).

    Article  CAS  Google Scholar

  29. N. Mukherjee, A. Adak, S. Ghosh, Recent trends in the development of peptide and protein-based hydrogel therapeutics for the healing of CNS injury. Soft Matter 16(44), 10046–10064 (2020).

    Article  CAS  Google Scholar

  30. U. Hersel, C. Dahmen, H. Kessler, RGD modified polymers: biomaterials for stimulated cell adhesion and beyond. Biomaterials 24(24), 4385–4415 (2003). (Epub 2003/08/19)

    Article  CAS  Google Scholar

  31. C.H. Li, J.L. Zuo, Self-healing polymers based on coordination bonds. Adv. Mater. 32(27), e1903762 (2020). (Epub 2019/10/11)

    Article  CAS  Google Scholar

  32. L. Shi, P. Ding, Y. Wang, Y. Zhang, D. Ossipov, J. Hilborn, Self-healing polymeric hydrogel formed by metal-ligand coordination assembly: design, fabrication, and biomedical applications. Macromol. Rapid Commun. 40(7), e1800837 (2019).

    Article  CAS  Google Scholar

  33. S. Varghese, A. Lele, R. Mashelkar, Metal-ion-mediated healing of gels. J. Polym. Sci., Part A: Polym. Chem. 44(1), 666–670 (2006).

    Article  CAS  Google Scholar

  34. G. Janarthanan, I. Noh, Recent trends in metal ion based hydrogel biomaterials for tissue engineering and other biomedical applications. J. Mater. Sci. Technol. 63, 35–53 (2021).

    Article  Google Scholar

  35. M. Krogsgaard, M.A. Behrens, J.S. Pedersen, H. Birkedal, Self-healing mussel-inspired multi-pH-responsive hydrogels. Biomacromol 14(2), 297–301 (2013).

    Article  CAS  Google Scholar

  36. N. Holten-Andersen, A. Jaishankar, M. Harrington, D.E. Fullenkamp, G. DiMarco, L. He, G.H. McKinley, P.B. Messersmith, K.Y. Lee, Metal-coordination: using one of nature’s tricks to control soft material mechanics. J. Mater. Chem. B. 2(17), 2467–2472 (2014).

    Article  CAS  Google Scholar

  37. L. Shi, Y. Zhao, Q. Xie, C. Fan, J. Hilborn, J. Dai, D.A. Ossipov, Moldable hyaluronan hydrogel enabled by dynamic metal-bisphosphonate coordination chemistry for wound healing. Adv, Healthc. Mater. 7(5), 1700973 (2018).

    Article  CAS  Google Scholar

  38. S. Basak, J. Nanda, A. Banerjee, Multi-stimuli responsive self-healing metallo-hydrogels: tuning of the gel recovery property. Chem. Commun. 50(18), 2356–2359 (2014).

    Article  CAS  Google Scholar

  39. P.S. Yavvari, A. Srivastava, Robust, self-healing hydrogels synthesised from catechol rich polymers. J. Mater. Chem. B 3, 899–910 (2015)

    Article  CAS  Google Scholar

  40. G. Borkow, J. Gabbay, R. Dardik, A.I. Eidelman, Y. Lavie, Y. Grunfeld, S. Ikher, M. Huszar, R.C. Zatcoff, M. Marikovsky, Molecular mechanisms of enhanced wound healing by copper oxide-impregnated dressings. Wound Repair. Regen. 18(2), 266–275 (2010). (Epub 2010/04/23)

    Article  Google Scholar

  41. G.D. Mulder, L.M. Patt, L. Sanders, J. Rosenstock, M.I. Altman, M.E. Hanley, G.W. Duncan, Enhanced healing of ulcers in patients with diabetes by topical treatment with glycyl-l-histidyl-l-lysine copper. Wound Repair Regen. 2(4), 259–269 (1994). (Epub 1994/10/01)

    Article  CAS  Google Scholar

  42. B. Tao, C. Lin, Y. Deng, Z. Yuan, X. Shen, M. Chen, Y. He, Z. Peng, Y. Hu, K. Cai, Copper-nanoparticle-embedded hydrogel for killing bacteria and promoting wound healing with photothermal therapy. J. Mater. Chem. B 7(15), 2534–2548 (2019). (Epub 2020/04/08)

    Article  CAS  Google Scholar

  43. S. Zhao, L. Li, H. Wang, Y. Zhang, X. Cheng, N. Zhou, M.N. Rahaman, Z. Liu, W. Huang, C. Zhang, Wound dressings composed of copper-doped borate bioactive glass microfibers stimulate angiogenesis and heal full-thickness skin defects in a rodent model. Biomaterials 53, 379–391 (2015). (Epub 2015/04/22)

    Article  CAS  Google Scholar

  44. M.A. Mofazzal Jahromi, P. Sahandi Zangabad, S.M. Moosavi Basri, K. Sahandi Zangabad, A. Ghamarypour, A.R. Aref, M. Karimi, M.R. Hamblin, Nanomedicine and advanced technologies for burns: preventing infection and facilitating wound healing. Adv. Drug Deliv. Rev. 123, 33–64 (2018). (Epub 2017/08/08)

    Article  CAS  Google Scholar

  45. G. Borkow, Using copper to improve the well-being of the skin. Curr. Chem. Biol. 8(2), 89–102 (2014). (Epub 2015/09/12)

    Article  CAS  Google Scholar

  46. L.M. De Leon Rodriguez, Y. Hemar, J. Cornish, M.A. Brimble, Structure–mechanical property correlations of hydrogel forming β-sheet peptides. Chem. Soc. Rev. 45(17), 4797–4824 (2016).

    Article  Google Scholar

  47. C. Marambio-Jones, E.M.V. Hoek, A review of the antibacterial effects of silver nanomaterials and potential implications for human health and the environment. J. Nanopart. Res. 12, 1531–1551 (2010)

    Article  CAS  Google Scholar

  48. L. Pickart, The human tri-peptide GHK and tissue remodeling. J. Biomater. Sci. Polym. Ed. 19(8), 969–988 (2008).

    Article  CAS  Google Scholar

  49. P.A. O’Brien, R. Kulier, F.M. Helmerhorst, M. Usher-Patel, C. d’Arcangues, Copper-containing, framed intrauterine devices for contraception: a systematic review of randomized controlled trials. Contraception 77(5), 318–327 (2008). (Epub 2008/04/12)

    Article  CAS  Google Scholar

  50. R.D. Harris, J.T. Auletta, S.A. Mohaghegh Motlagh, M.J. Lawless, N.M. Perri, S. Saxena, L.M. Weiland, D.H. Waldeck, W.W. Clark, T.Y. Meyer, Chemical and electrochemical manipulation of mechanical properties in stimuli-responsive copper-cross-linked hydrogels. ACS Macro Lett. 2, 1095–1099 (2013)

    Article  CAS  Google Scholar

  51. C. Jiao, J. Zhang, T. Liu, X. Peng, H. Wang, Mechanically strong, tough, and shape deformable poly(acrylamide-co-vinylimidazole) hydrogels based on Cu2+ complexation. ACS Appl. Mater. Interfaces. 12(39), 44205–44214 (2020).

    Article  CAS  Google Scholar

  52. S. Kawano, N. Fujita, S. Shinkai, A coordination gelator that shows a reversible chromatic change and sol-gel phase-transition behavior upon oxidative/reductive stimuli. J. Am. Chem. Soc. 126(28), 8592–8593 (2004).

    Article  CAS  Google Scholar

  53. X. Wang, I. Bergenfeld, P.S. Arora, J.W. Canary, Reversible redox reconfiguration of secondary structures in a designed peptide. Angew. Chem. Int. Ed. 51(48), 12099–12101 (2012). (Epub 2012/10/31)

    Article  CAS  Google Scholar

  54. M.R. Gunther, P.M. Hanna, R.P. Mason, M.S. Cohen, Hydroxyl radical formation from cuprous ion and hydrogen peroxide: a spin-trapping study. Arch. Biochem. Biophys. 316(1), 515–522 (1995). (Epub 1995/01/10)

    Article  CAS  Google Scholar

  55. P. Bainbridge, Wound healing and the role of fibroblasts. J. Wound Care. 22(8), 407–8, 10–12 (2013).

  56. A.K. Miller, Z. Li, K.A. Streletzky, A.M. Jamieson, S.J. Rowan, Redox-induced polymerization/depolymerization of metallo-supramolecular polymers. Polym. Chem. 3, 3132 (2012)

    Article  CAS  Google Scholar

  57. S.M. Smith, R. Balasubramanian, A.C. Rosenzweig, Metal reconstitution of particulate methane monooxygenase and heterologous expression of the pmoB subunit. Methods Enzymol. 495, 195–210 (2011). (Epub 2011/03/23)

    Article  CAS  Google Scholar

  58. O.V. Makhlynets, P.M. Gosavi, I.V. Korendovych, Short self-assembling peptides are able to bind to copper and activate oxygen. Angew. Chem. Int. Ed. 55, 9017–9020 (2016)

    Article  CAS  Google Scholar

  59. C. Bortolini, L. Liu, S.V. Hoffmann, N.C. Jones, T.P.J. Knowles, M. Dong, Exciton coupling of phenylalanine reveals conformational changes of cationic peptides. ChemistrySelect 2(8), 2476–2479 (2017).

    Article  CAS  Google Scholar

  60. Y. Liu, S.H. Hsu, Synthesis and biomedical applications of self-healing hydrogels. Front Chem. 6, 449 (2018).

    Article  CAS  Google Scholar

  61. M. Guvendiren, H.D. Lu, J.A. Burdick, Shear-thining hydrogels for biomedical applications. Soft Matter 8, 260–272 (2012)

    Article  CAS  Google Scholar

  62. D.L. Taylor, M. In Het Panhuis, Self-healing hydrogels. Adv. Mater. 28(41), 9060–9093 (2016).

    Article  CAS  Google Scholar

  63. K. Nagy-Smith, E. Moore, J. Schneider, R. Tycko, Molecular structure of monomorphic peptide fibrils within a kinetically trapped hydrogel network. Proc. Natl. Acad. Sci. 112(32), 9816–9821 (2015). (Epub 2015/07/29)

    Article  CAS  Google Scholar

Download references


We thank Nicole Maurici, Alexis Eckhart and Cheyene Muenzel for help with various aspects of this work.

We would like to thank Prof. Ivan V. Korendovych for his help with writing the manuscript and for providing the critical feedback. We thank Monroe lab at the Syracuse BioInspired institute for NIH/3T3 cells.


This work was supported in part by a CUSE and NSF ADVANCE HRD-1008643 to OVM. EPR work was supported by an NIH Grant P41GM103521 to ACERT. Computational work was supported by an NSF award CHE-2102563 to RP.

Author information

Authors and Affiliations



AD, LM, JY, AK, SC, DIUE, PR performed experiments. OVM wrote the manuscript with input of all the authors. All authors read and approved the final manuscript.

Corresponding author

Correspondence to Olga V. Makhlynets.

Ethics declarations

Competing interests

The authors declare that they have no competing interests.

Additional information

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Supplementary Information


Additional file 1. Contains supplementary figures S1–S17, tables S1–S3 and “Materials and Methods” section.

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

D’Souza, A., Marshall, L.R., Yoon, J. et al. Peptide hydrogel with self-healing and redox-responsive properties. Nano Convergence 9, 18 (2022).

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI:


  • Hydrogel
  • Self-healing and redox-responsive properties
  • Copper reduction
  • Antimicrobial wound dressing
