SERS biosensors for liquid biopsy towards cancer diagnosis by detection of various circulating biomarkers: current progress and perspectives

Abstract

Liquid biopsy has emerged as a promising non-invasive strategy for cancer diagnosis, enabling the detection of various circulating biomarkers, including circulating tumor cells (CTCs), circulating tumor nucleic acids (ctNAs), circulating tumor-derived small extracellular vesicles (sEVs), and circulating proteins. Surface-enhanced Raman scattering (SERS) biosensors have revolutionized liquid biopsy by offering sensitive and specific detection methodologies for these biomarkers. This review comprehensively examines the application of SERS-based biosensors for identification and analysis of various circulating biomarkers including CTCs, ctNAs, sEVs and proteins in liquid biopsy for cancer diagnosis. The discussion encompasses a diverse range of SERS biosensor platforms, including label-free SERS assay, magnetic bead-based SERS assay, microfluidic device-based SERS system, and paper-based SERS assay, each demonstrating unique capabilities in enhancing the sensitivity and specificity for detection of liquid biopsy cancer biomarkers. This review critically assesses the strengths, limitations, and future directions of SERS biosensors in liquid biopsy for cancer diagnosis.

1 Introduction

Cancer, a multifaceted heterogeneous disease, demands precise diagnostic methodologies to guide effective treatment strategies. Conventional diagnostic methods, while valuable, often require invasive procedures and are not favorable for multiple sampling to reflect the dynamic changes of tumor progression. Liquid biopsy, by contrast, harnesses the unique biomolecular signatures shed by tumors into body fluids, providing real-time, minimally invasive insights into the tumor’s molecular landscape [1,2,3]. This transformative approach involves the analysis of circulating tumor cells (CTCs), circulating tumor nucleic acids (ctNAs), circulating small extracellular vesicles (sEVs), and circulating proteins as biomarkers, offering insights into tumor dynamics and aiding in personalized therapeutic interventions.

CTCs are cancer cells that have detached from a primary tumor and intravasated into the peripheral bloodstream during the process of cancer metastasis [4, 5]. CTCs were first discovered in the blood of a man with metastatic cancer by Thomas Ashworth in 1869 [6, 7]. However, CTCs have been increasingly studied only since the mid-1990s, with the development of new isolation and detection techniques [8]. The CellSearch System (Janssen Diagnostics) is the first FDA-approved system for clinical CTCs detection in breast, colorectal, and prostate cancer patients [9]. The prognostic value of CTCs has also been demonstrated in patients with bladder, head and neck, and pancreatic cancer [10]. The detection of CTCs poses significant challenges due to multiple factors, including i) extraordinary rarity with approximately 1 to 100 CTCs per milliliter of blood, making their isolation and detection among 5 billion erythrocytes and 10 million leukocytes a daunting task [8, 11, 12]; ii) heterogeneity of CTCs exhibiting significant variations in surface marker expression, complicating the identification and characterization of CTCs [13, 14]. ctNAs include circulating tumor DNA (ctDNA) and microRNA (miRNA). ctDNAs are released from tumor cells under apoptosis, necrosis, or active release thus reflecting molecular, phenotypic or genetic changes in the tumor tissue [15,16,17]. miRNAs are non-coding small RNA molecules and are known for their role in promoting tumor progression and metastasis through inhibition of tumor suppressor genes as well as the genes engaged in cell apoptosis and differentiation [18]. Since ctNAs may reflect systemic disease and are more abundant than CTCs, the analysis of ctNAs could serve as a better measure of tumor burden and heterogeneity with higher sensitivity and specificity than analysis of solid tumors and CTCs [15]. sEVs, also called exosomes, are nanoscale phospholipid bilayer membrane vesicles released from cells with diameter < 200 nm [19, 20]. Due to their diverse origin (secreted by almost all types of cells) and excellent stability in the body fluid, cancer-derived sEVs have emerged as potential non-invasive biomarkers in liquid biopsy for the diagnosis and treatment of diseases [21, 22]. Circulating proteins from serum or plasma can be used as non-invasive biomarkers for cancer diagnosis, and the changes in protein expression levels and protein structures may indicate genomic mutations and reflect disease progression [23]. The detection of circulating proteins has been used in various ways, such as screening, diagnosis, monitoring treatment response, and detecting recurrence [24, 25].

The effective utilization of liquid biopsy biomarkers relies on sensitive and specific detection methodologies, propelling the advancement of surface-enhanced Raman scattering (SERS) biosensors. SERS is a powerful spectroscopic technique that enhances the Raman scattering signal of molecules adsorbed on or near nanostructured metal surfaces [26]. The enhancement is predominantly attributed to the localized surface plasmon resonance (LSPR) effect, which occurs when noble metal nanoparticles, such as gold or silver, interact with incident light [27]. SERS assays have aroused considerable attention due to their unparalleled sensitivity and specificity in detecting molecular fingerprints of various cancer-associated biomarkers. The advantages of SERS-based biosensors include i) extraordinary sensitivity, often allowing for the detection of molecules at extremely low concentrations [28]; ii) high specificity via functionalization of SERS substrates with specific ligands, antibodies, or aptamers, ensuring selective binding to target molecules [29]. This specificity is crucial for accurately identifying and distinguishing between different analytes, making SERS well-suited for biosensing applications; iii) high multiplexing capability, allowing for the simultaneous detection of multiple analytes in a single experiment [14, 30]. By using different SERS substrates functionalized with specific recognition elements, multiplexed analysis is achievable, providing comprehensive information in a single measurement; iv) non-invasive sampling, allowing for the detection of biomarkers without the need for invasive procedures; and v) real-time and rapid analysis, making it suitable for dynamic processes and time-sensitive applications. This feature is valuable in fields such as pharmacology, environmental monitoring, and point-of-care diagnostics [9, 31, 32]. Therefore, SERS application in liquid biopsy holds promise for revolutionizing cancer diagnostics by offering rapid, multiplexed, and non-invasive detection capabilities.

This review thus aims to comprehensively explore the recent developments and applications of SERS biosensors in liquid biopsy for cancer diagnosis. Four distinct types of SERS assay, including label-free, magnetic bead (pull-down), microfluidic device, and paper-based assays, are discussed in detail. Each type of assay exhibits unique attributes, ranging from enhanced capture efficiency to portable diagnostic capabilities, contributing to the diversification and optimization of liquid biopsy methodologies. We endeavor to elucidate the significance of liquid biopsy in cancer diagnosis and treatment management, outline the existing methodologies employed in liquid biopsy, explain the rationale behind the utilization of SERS assays, and critically analyze the recent advancements in SERS biosensors. Moreover, the specific focus is on delineating the distinct attributes and potential clinical implications of the four types of SERS assay in the realm of liquid biopsy for cancer diagnosis. By integrating the diverse facets of liquid biopsy, SERS technology, and innovative assay designs, this review aims to offer insights into the evolving landscape of cancer diagnostics and the transformative potential of SERS biosensors in enhancing precision medicine.

2 Label-free SERS assay

Label-free SERS assay (also called direct-SERS assay) utilizes the intrinsic Raman spectrum of the analyte rather than labelling the analyte with Raman molecule to discern disease-associated biomarkers [33]. Figure 1 illustrates the working scheme of label-free SERS assay in liquid biopsy for cancer diagnosis. Noble metal nanoparticles, particularly gold nanoparticles (AuNPs) and silver nanoparticles (AgNPs), are frequently utilized as SERS substrates due to their strong plasmonic properties [34]. Spherical AuNPs display a robust plasmon resonance within the visible to near-infrared (NIR) range, typically around 520 − 550 nm [35]. This resonance makes Au an excellent choice for applications that necessitate excitation at visible wavelengths. Other materials, such as copper, aluminum, and lead, also exhibit plasmon resonance within the visible to NIR region and can be used as SERS substrate [36]. The morphology of the SERS substrate also holds a crucial role in SERS enhancement. The wavelength of the localized surface plasmon resonance for metal can be tuned by modifying the size, shape, and the dielectric layer of the nanoparticles [9]. The analyte in liquid biopsy sample can be attached to SERS substrate through physical adsorption and chemical binding. Physical adsorption relies on van der Waals forces, electrostatic attractions, or hydrophobic interactions for adhesion of analyte to the substrate [37]. Alternatively, chemical binding, such as the formation of covalent bonds, can be employed to create a more stable and specific interaction between the SERS substrate and the target [37].

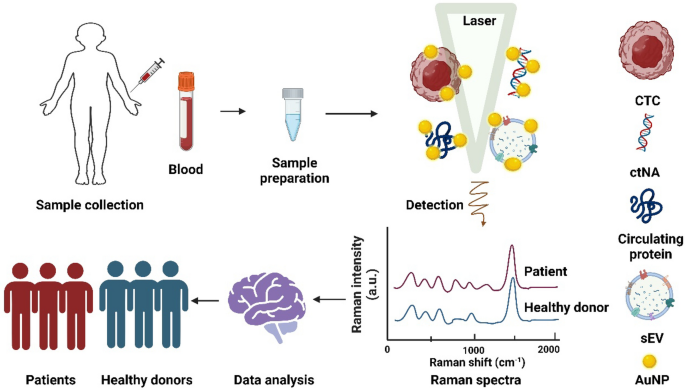

Fig. 1

Scheme of label-free SERS assay for liquid biopsy detection. Analyte including CTCs, ctNAs, sEVs and proteins attached to the SERS substrate (such as AuNP) to generate inherent Raman spectra of the analyte, which could be analyzed by machine learning algorithms for cancer detection

In label-free SERS assay, SERS spectra of analytes provides rich fingerprint information of the analytes, indicating their molecular composition and chemical structure. However, identification of the difference in Raman spectra from complex matrix is challenging due to the potential overlapping peaks, baseline noise or intermolecular interactions. Thus, methodologies for signal analysis with more precision are highly demanded, where machine learning emerges as a promising solution. A number of algorithms, including principal component analysis (PCA), support vector machines (SVMs), convolutional neural networks (CNNs), distributed arithmetic (DA), quadratic discriminant analysis (QDA), linear discriminant analysis (LDA), partial least squares-discriminant analysis (PLS-DA), artificial neural networks (ANNs), and random forests (RFs), have been successfully employed to analyze Raman spectra [38]. When combined with an artificial intelligence (AI) technique, SERS allows for analysis of samples with enhanced accuracy, effectively addressing the limitations imposed by complex data. By leveraging advanced data analysis models, Raman spectra from healthy donors and patients can be accurately distinguished. This integration of AI and SERS offers a powerful tool for accurate and efficient diagnosis, further enhancing the capabilities of liquid biopsy in clinical applications.

2.1 CTCs

CTCs contain a complex repertoire of biomolecules, including polysaccharides, proteins, and nucleic acids. Given its exceptional sensitivity, SERS presents a powerful analytical tool for the label-free identification of CTCs. However, accurate identification of CTCs solely through label-free SERS spectra is challenging, as the spectra of CTCs typically exhibit highly overlapping spectral features originating from diverse biomolecules within the focal area of the laser beam [33]. Therefore, appropriate algorithms capable of discerning subtle spectral variations between different cell types for accurate identification of CTCs are needed.

Zhang et al. presented a study that demonstrated the potential of an Ag film-based label-free SERS assay for distinguishing various cells through the utilization of a discriminant model [39]. The model was developed based on the nucleic acid characteristic peaks of various cells, including tumor cancer cell lines, CTCs derived from lung cancer patient tissues, red and white blood cells. This approach allowed for the successful discrimination of tumor cancer cells from white blood cells, as well as CTCs, by utilizing the characteristic peak intensity ratios of nucleic acid.

To simplify the procedures for CTC isolation and analysis, one study presented a one-step technique based on tailor-made membrane to isolate and enrich CTCs from blood samples [40]. SERS-active nanoparticles (Ag-Au alloy) on a polymer mat could enhance the Raman signals, enabling molecular and biochemical analysis of CTCs. SERS spectra of prostate cancer cells (PC3), cervical carcinoma (HeLa) cells, and leucocytes (representing healthy cells) showed distinctive differences in band positions and intensities of the Raman spectra, thus PCA effectively identified these key differences and achieves accurate classification of cell types, demonstrating the potential for efficient cancer discrimination.

In an alternative methodology, Niciński et al. leveraged the advantages of automation and high-throughput capabilities provided by microfluidic devices to isolate and detect CTCs in human blood [41]. The microfluidic chip enabled efficient size-based inertial separation of CTCs, and the SERS-active substrate (AgNPs coated with silica shell) facilitated label-free detection and molecular identification of isolated cells. SERS analysis discerned significant differences in molecular composition between cancer cells (HeLa, Caki-1) and blood cells using PCA. This innovative approach simplifies the detection of CTCs, improving accuracy without invasiveness or cell damage.

2.2 ctNAs

Label-free SERS technology for ctNAs detection facilitates the direct acquisition of Raman signals from nucleic acids, encompassing both nucleobases and the phosphate/sugar backbone [42]. This capability enables direct identification of base changes and conformational alterations within nucleic acid structures. Label-free SERS has demonstrated successful detection of single bases, point mutations, base methylations, and structural modifications, indicating the remarkable potential of label-free SERS as a sensitive and rapid method for ctNA detection [43, 44].

For instance, Liu et al. successfully created positively charged Au–Ag alloy nanostars to perform label-free SERS detection of DNA mutations without the need for Raman molecule labelling. The nanostars were utilized to distinguish between wild-type (WT) and BRAF V600E mutant genomic DNA using statistical analysis methods known as PCA-LDA [45]. This approach allowed for the analysis of whole genome DNA lysed from cells. Notably, the method provided a comprehensive DNA fingerprint with reduced analysis time while achieving a low detection limit of 100 copies, which was comparable to quantitative PCR (qPCR) but ten times more sensitive than traditional gel electrophoresis.

In another study, Lin et al. demonstrated the label-free SERS method for sensitive quantification of minor changes in DNA molecules at the single nucleobase level [42]. The proposed method detected circulating DNA in blood and achieved the diagnostic sensitivity of 83.3% and specificity of 82.5% for differentiating nasopharyngeal cancer (NPC) patients from normal subjects. This proof-of-concept study demonstrated the promising potential of the method for sensitive NPC detection based on liquid biopsy.

Label-free SERS can also be used for RNA detection. For example, a label-free SERS assay, coupled with a duplex-specific nuclease (DSN) signal amplification strategy, has been developed for the sensitive and quantitative analysis of miRNA-21 [46]. This approach involved utilizing magnetic beads functionalized with excess capture DNA to hybridize with the target miRNA-21 and iodide-modified Ag nanoparticles (AgINPs) for SERS detection. This method indicated excellent performance for miRNA-21 detection at a lower detection limit of 42 aM. Furthermore, this strategy exhibited effective base discrimination capability and was successfully applied to monitor the expression levels of miRNA-21 in different cancer cell lines and human serum.

2.3 Circulating tumor-derived sEVs

Label-free SERS, which investigates signal patterns that can originate from either unidentified or non-interesting substances, enables the analysis of sEVs that are challenging to differentiate using other analytical methods that target a unique marker. Additionally, Raman spectrum of sEVs contains abundant information regarding the chemical structure, thereby offering insights into the molecular composition of sEVs.

For example, one research introduced an artificial intelligence-based SERS strategy for label-free spectral analysis of serum sEVs [47]. The deep learning algorithm training by using SERS spectra from cancer cell-derived sEVs demonstrated 100% prediction accuracy for patients with different breast cancer subtypes and did not undergo surgery. Moreover, when combined with similarity analysis through PCA, the approach could effectively evaluate the surgical outcomes for distinct molecular subtypes of breast cancer.

To investigate the clinical application of label-free SERS for sEV detection, a large cohort of patient samples with different cancer types were investigated using AgNPs as SERS susbtrate [48]. SERS spectra of serum and serum-derived sEVs from 32 patients with prostate cancer (PCa), 33 patients with renal cell cancer (RCC), 30 patients with bladder cancer (BCa), and 35 healthy controls (HCs) were obtained using label-free SERS assay, yielding 650 and 1206 spectra, respectively. The serum SERS-based CNN models showed testing accuracies of 73.0%, 71.1%, and 69.2% in diagnosing PCa, RCC, and BCa, respectively. These results showed the superior diagnostic potential of deep learning-based SERS analysis of sEVs, providing a novel and effective tool for the diagnosis of urologic cancer, outperforming serum-based SERS analysis.

Additionally, Shin et al. utilized deep learning-based SERS assay of sEVs, and achieved an accurate diagnosis of early-stage lung cancer [49]. Analyzing 43 patients, including those at stages I and II, the deep learning model predicted a significant similarity between plasma sEVs and lung cancer cells-derived sEVs in a substantial proportion of patients. This similarity correlated with cancer progression, and notably, the model predicted lung cancer with a high area under the curve (AUC) of 0.912 for the entire cohort and 0.910 for stage I patients. These findings underscored the immense potential of combining sEVs analysis and deep learning for early-stage liquid biopsy of lung cancer.

More recently, Liu et al. applied an Au nanopyramid array as the SERS substrate which could boost a high density of hot spots with SERS enhancement factor over 10¹⁰ to obtain composition information from Raman-active bonds inside sEVs [50]. A machine learning-based spectral feature analysis algorithm was developed to distinguish cancer-derived sEVs from non-cancer sub-populations objectively. The algorithm demonstrated prediction accuracies of 90%, 85%, and 72% in tissue, blood, and saliva, respectively. A cross-validation method was conducted to evaluate the performance of a diagnostic or prognostic model and assess the clinical potential, where excellent predictive accuracy was indicated by the high AUC in ROC analysis. Furthermore, this study proposed a way to trace the biogenesis pathways of patient-specific sEVs from tissue to blood to saliva by comparing the SERS fingerprints of individual vesicles.

2.4 Circulating tumor-related proteins

Label-free SERS stands as a prominent approach for the detection and in-depth characterization of proteins. This technique affords comprehensive structural insights into proteins by revealing vibrational details from crucial elements such as amide groups, amino acids, and protein cofactors, including heme and flavins, under physiological conditions. Notably, label-free SERS is not limited by the protein molecular mass or solubility, thus offering distinct advantages over traditional protein analysis methods such as electrophoresis, enzyme-linked immunosorbent assay (ELISA), and western blots.

For instance, Chaloupková et al. developed an analytical method for the parallel analysis of prostate-specific antigen (PSA) and free PSA in whole human blood using magnetically assisted (MA)-SERS [51]. This method was based on magnetic Fe₃O₄@Ag nanocomposite functionalized with anti-PSA antibody. It could distinguish between the levels of PSA and free PSA within a single analytical run with LOD of 0.62 ng/ml and 0.49 ng/ml for PSA and free PSA, respectively.

Additionally, Liu et al. used label-free SERS technology combined with AgNPs to measure and analyze peripheral serum protein samples from patients with breast cancer, pre- and postoperatively, and from normal subjects [52]. Significant differences in the serum protein’s SERS spectra among the three groups were detected due to the changes in certain biochemical compositions related to breast cancer transformation. Using PCA-LDA, the authors achieved diagnostic sensitivities of 96.7%, 53.3%, and 100% for pre-surgery versus post-surgery, post-surgery versus normal, and pre-surgery versus normal, respectively.

In a short summary, the development of a label-free SERS assay for liquid biopsy detection represents a promising potential toward clinical translation. This technology enables the sensitive and specific detection of biomarkers directly from complex biological samples, eliminating the need for labelling Raman molecules. The key to its efficacy lies in the utilization of nanomaterials, such as Au and Ag nanoparticles, which amplify the Raman scattering signal of the target analyte. By capitalizing on surface plasmon resonance, Raman signal is significantly boosted, thereby facilitating sensitive detection of analytes at low concentrations. Furthermore, advancements in data analysis models, including machine learning algorithms, have contributed to the improvement of label-free SERS assays. Together with high-resolution Raman spectrometers and sophisticated algorithms for signal extraction and background correction, these advancements have enabled more accurate and reliable measurements. To provide a comprehensive overview of label-free SERS assays for the detection of circulating biomarkers in recent five years, Table 1 summarizes the key information regarding assay sensitivity, SERS substrate, sample sources, data analysis methods, assay advantages, clinical sample details, and associated disease types. This table serves as a valuable resource for understanding the current state of label-free based SERS detection techniques for circulating tumor biomarkers.

Table 1 Label-free SERS assay for the detection of circulating tumor biomarkers

Despite its promising potential, label-free SERS still faces challenges in its journey to clinical translation, which includes overcoming background noise and achieving reproducibility. Future research should focus on addressing these challenges to fully harness the capabilities of label-free SERS in liquid biopsy applications: i) overcoming background noise from other untargeted substances, which will involve significant consideration of sample preparation to minimize the background signal; ii) developing SERS substrates with high enhancement factors, and stability; iii) creating advanced data analysis tools for accurate analysis and identification of analytes from complex SERS spectra; iv) establishing standardized protocols and rigorous clinical validation methods to ensure reproducibility and reliability of SERS assays in clinical settings. Addressing these challenges through collaborative efforts between researchers, clinicians, and engineers will be key to unlocking the full potential of label-free SERS for liquid biopsy applications.

3 Magnetic bead-based SERS assay

When combined with magnetic beads or nanoparticles, SERS creates a versatile platform for the detection of biomarkers from liquid biopsy. In the magnetic bead-based SERS assay, SERS nanotags are employed as sensors. Typically, SERS nanotags contain a SERS substrate (plasmonic active metal colloids such as gold and silver), Raman reporters adsorbed onto their surface, and conjugation with a target-specific binding molecule, e.g., antibodies, aptamers, or DNA probes for selective identification of the biomarkers [29]. The complexes of SERS nanotags/biomarkers are then recognized by magnetic beads functionalized with capture ligands to form a SERS nanotags/biomarker/magnetic bead sandwich structure for enrichment by a magnet and the following SERS measurement. The integration of magnetic bead with SERS technology enhances the sensitivity, specificity, and overall performance of liquid biopsy biomarker detection assays. This approach holds great promise for early disease diagnosis and monitoring, especially in the field of personalized medicine. This subsection aims to delve into the diverse applications, methodologies, and recent advancements in magnetic bead-based assays for detecting CTCs, ctNAs, sEVs, and proteins from liquid biopsy. The discussion will encompass various strategies involving magnetic beads functionalization, assay design, and their role in enhancing the sensitivity and specificity of cancer biomarker detection. The scheme of bead-based SERS assay is illustrated in Fig. 2.

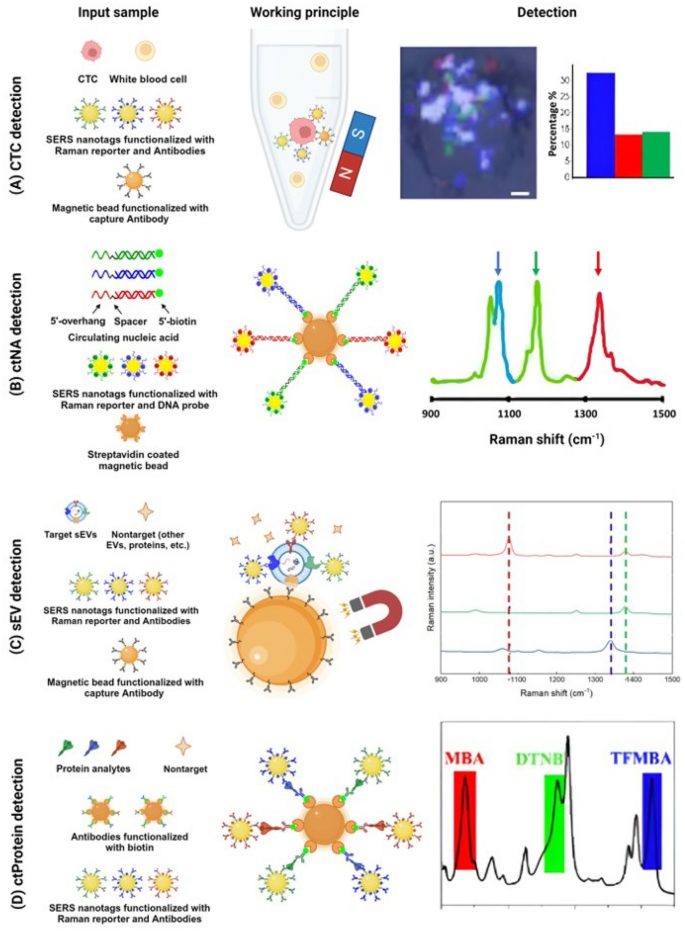

Fig. 2

Scheme of beads-based SERS assay for detecting circulating biomarkers, where SERS nanotags are functionalized with specific ligands, e.g., antibodies, aptamers, or DNA probes for selective identification of the biomarkers. A CTC detection, where CTC surface markers are labelled with SERS nanotags and magnetic beads, followed by magnetic enrichment for SERS reading. Reproduced with permission [14]. Copyright 2018, Springer Nature. B ctNA detection, where amplicons were tagged with mutation-specific SERS nanotags and enriched using magnetic beads for SERS detection. Reproduced with permission [30]. Copyright 2016, Ivyspring International Publisher. C sEVs detection, where molecular phenotype profiling of sEVs were detected using SERS nanotags and capture antibody-functionalized magnetic beads. Reproduced with permission [79]. Copyright 2020, American Chemical Society. D Protein analytes were recognized by magnetic beads functionalized with capture antibodies and SERS nanotags for readout of SERS signal. Reproduced with permission [https://doi.org/10.1021/acssensors.9b01211]. Copyright 2019, American Chemical Society

3.1 CTCs

Magnetic beads offer a way to selectively isolate the target CTCs from numerous other blood cells by exploiting specific interactions between the beads and the target cells. This enrichment step can improve the sensitivity and specificity of the SERS assay, enhancing the detection of CTCs amongst a diverse population of blood cells. The combination of magnetic beads with SERS-based detection was firstly reported by Sha et al. (2008), where the bead modified with anti-EpCAM antibody and SERS nanotags with anti-HER2 were used for specific recognition of breast cancer cells in whole blood. The typical sandwich structure (magnetic beads-CTC-SERS nanotags, Fig. 2A) was formed for rapid capture and detection of CTCs in whole blood with a LOD of 50 cells/mL [66].

To improve the assay sensitivity, SERS nanotags with improved signal enhancement were designed for CTCs detection. For example, Ruan et al. designed the triangular silver nanoprisms (AgNPR) and superparamagnetic iron oxide nanoparticles (SPION), both functionalized with folic acid for capture, enrichment, and detection of cancer cells in the blood with high sensitivity (1 cell/mL) [67]. Notably, the captured CTCs were further released via excessive free folic acid for cell expansion and phenotype identification [68].

Alternatively, modification of magnetic beads with gold or silver-coated shell can further improve the SERS signal due to their enhanced plasmonic properties. For instance, Pang et al. fabricated silver shell-coated magnetic nanoparticles functionalized with anti-ASGPR antibody and Au@Ag nanorods functionalized with anti-GPC3 for detection of CTCs from hepatocellular carcinoma (HCC) [69]. Wherein, a LOD of 1 cell/mL for HCC CTC in human peripheral blood samples was obtained due to the dual-enhanced SERS signals between the silver shell and the Au@Ag nanorods.

3.2 ctNAs

PCR-based assays for detecting ctNAs mutations rely on probe-based qPCR, or targeted sequencing [70]. More recently, droplet digital PCR has been demonstrated to quantify mutant copies from limited DNA input in ctNAs [71]. While accurate, these fluorescence-based methods require expensive specialized equipment, have limited sensitivity and multiplexing capability [30]. In the magnetic bead-based SERS assay, the combination of biochemical (PCR) and physical (SERS) amplification allows the assay to detect low copies of aberrant DNA from wild type sequences, meanwhile, the magnetic beads can be easily separated from the solution using magnetic fields to simplify the sample preparation and washing steps.

Wee et al. reported a PCR/SERS method for multiplex detection of clinically important melanoma DNA mutations in ctDNA, by using a biotinylated reverse primer for capture by streptavidin-coated magnetic beads (SMB), and an allele-specific forward primer for direct hybridization to SERS nanotags. The presence of targeting amplicons was detected by the fingerprinting spectrum of the SERS nanotags (Fig. 2B) [30]. PCR/SERS method showed comparable sensitivity with that of droplet digital PCR (ddPCR) yet at the convenience of standard PCR, thus illustrating the great potential in sensitive detection of multiple ctDNA mutations in clinical setting. Lyu et al. further improved this PCR/SERS assay with a simple and specific strategy by integrating asymmetric PCR with SERS (Asy-PCR/SERS) for highly specific distinguishing of KRAS G12V (c.35G > T) and KRAS G12D (c.35G > A) locating at the same nucleotide on KRAS oncogene without the needs of complex design and optimization of allele-specific primers compared to that of PCR/SERS assay [72].

DNA probe-based method is a direct and efficient method for miRNA detection in blood samples and is suitable for both research and clinical applications. For example, Wu et al. have demonstrated simultaneous and sensitive detection of three hepatocellular carcinoma-related miRNA biomarkers, namely miRNA-122, miRNA-223, and miRNA-21 by using SERS nanotag and a magnetic capture substrate [28]. Other magnetic nanoparticles-based SERS platforms with elaborate design of signal amplification are also reported. For instance, He et al. proposed a novel “off” to “on” SERS platform combining padlock probe-based exponential rolling circle amplification strategy and magnetic Co@C/PEI/Ag SERS substrate for quantitative and sensitive detection of miRNA-155 with a LOD of 70.2 aM [73].

3.3 Circulating tumor-derived sEVs

ELISA and western blotting are two regular approaches widely used to detect proteins from sEVs [74, 75]. However, these methods are limited by low sensitivity and complicated protocols. The immunoaffinity magnetic beads for enrichment of sEVs through their specific protein markers have been used for the point-of-care clinic diagnosis as the simple and fast isolation process [76]. The mechanism of immunomagnetic isolation protocols is using magnetic beads coated with anti-marker antibodies/aptamers to capture sEVs by recognizing the specific proteins on their surface (Fig. 2C) [77].

A variety of proteins can be targeted as biomarkers for isolation of sEVs including the tetraspanins CD9, CD63, CD81 and cancer-related markers such as EpCAM, CD24, and CA125. Antibodies can be immobilized on the surface of beads for binding with sEVs that expressed specific antigens, the immunoaffinity thus resulted in high specificity and purity for isolating a particular sEVs subtype (Fig. 2C) [78]. For example, Zhang et al. reported using anti-CD63 modified magnetic beads to capture and enrich pancreatic cancer-derived sEVs from different cell lines, followed with multiplex detection of three surface markers glypican-1, EpCAM, CD44v6 on captured sEVs by the three corresponding antibody labelled SERS nanotags [79]. To further demonstrate the clinical application of the proposed assay, they profiled the sEVs’ phenotypes from healthy donors and pancreatic ductal adenocarcinoma patients, providing an initial investigation of using bead-based SERS assay for pancreatic cancer diagnosis and early cancer stage prediction in the clinical setting [80].

Aptamers have been used as an alternative to antibodies with high selectivity and affinity toward protein biomarkers [81]. Numerous aptamer-based biosensors have been designed for sEVs detection [82]. Taking the advantage of particularly designed aptamers and the multiplexing ability of the SERS spectra, Wang et al. proposed a SERS-based method for screening and simultaneous multiple detection of sEVs using magnetic substrates and SERS probes for targeting sEVs’ proteins (CEA, PSMA, HER2) [83].

Other than the above-mentioned immunoaffinity binding between the functionalized magnetic beads and sEVs, Pang et al. reported a strategy to enrich sEVs through the binding of hydrophilic phosphate head of the sEVs phospholipids to the TiO₂ shell on Fe₃O₄@TiO₂ nanoparticles, where sEVs could be enriched and separated from solution within 5 min with a capture efficiency of 96.5%, and subsequent labelling with anti-PD-L1 antibody modified Au@Ag@MBA SERS nanotags for quantification with a LOD of 1 EV/μL [84]. Jiang et al. further reported using the same strategy for enrichment of sEVs through the affinity interaction of TiO₂ shell on Fe₃O₄@TiO₂ nanoparticles, while using locked nucleic acid (LNA)-modified Au@DTNB SERS nanotags to bind with target miRNAs inside sEVs to induce hot spot SERS signals. This is the first attempt to apply the target-triggered hot spot SERS strategy for cancer-related miRNA qualification inside sEVs, where sEVs miRNA can be determined directly in serum samples [85].

Magnetic bead-based SERS assay has proved the promise in the early-stage screening of cancers. With the further improved sensitivity and repeatability, the SERS-based method will be a useful strategy in the diagnosis and therapeutics of cancers. However, due to the high cost of affinity-based assay, this method is only applicable for a small volume of samples and might not be suitable for processing large volumes of samples efficiently.

3.4 Circulating tumor-related protein

The magnetic-assisted sandwich strategy is the most used detection strategy for protein biomarkers. Generally, magnetic bead/nanoparticle modified with antibodies or aptamers are used to capture the target proteins, followed by the binding/detecting of SERS nanotags in the sample solution (Fig. 2D). Cheng et al. reported a bead-based SERS assay for simultaneous detection of dual PSA makers namely free PSA (f-PSA) and complexed PSA (c-PSA) from prostate cancer patients by using the total PSA (t-PSA) antibody-conjugated magnetic beads as capture substrates and two different types of antibody-conjugated SERS nanotags as detection probe [86].

Other than antibodies, aptamer could also be used for recognizing the target proteins. For example, Hu et al. have demonstrated the use of aptamer labelled SERS nanotags (Raman reporter labelled Au nano-bridged nanogap particles, Au NNPs) and magnetic capture substrate (Ag-coated Fe₃O₄-Au nanoparticles, Ag MNPs) for specific recognition of C-reactive protein (CRP). The method exhibits excellent selectivity and specificity for CRP under the interference of other proteins and displays high accuracy in the detection of human serum samples [87].

In a short summary, the high sensitivity and specificity of magnetic bead-based SERS assay allow for the detection of trace amounts of biomarkers in liquid biopsy, which is crucial in early cancer detection. Meanwhile, magnetic beads can be easily separated from the solution using magnetic fields, which not only simplifies the sample preparation and washing steps, but also reduces the background noise and interferences. Moreover, magnetic bead-based SERS assay is compatible with various sample matrices and can be used for both research and clinical application; this flexibility makes it a versatile tool for liquid biopsy detection. Table 2 summarized magnetic bead-based SERS assay in the detection of liquid biopsy, listed with typical reports in terms of sensitivity, specificity and multiplexity published in the last 5 years. With further optimization and improvement, the method may achieve higher selectivity, and reproducibility. In addition, more studies are needed to validate the method in clinical settings and to evaluate its diagnostic accuracy in larger patient cohorts.

Table 2 Detection of circulating biomarkers with magnetic bead-based assay

4 Microfluidic device-based assay

Since its adoption as an analytical tool in early 2000s, [105] microfluidics has been continuously grown and been widely adopted in a plethora of applications such as single cell analysis, [106] cell and particle isolation, [107] and organs-on-chips [108]. While research on the use of microfluidics continues, the translation of this technology is coming into reality as an in-vitro diagnosis tool. This is because microfluidics enables manipulation of small volumes of samples and reagents, and performs assays including mixing, incubation, and isolation for a successful in-vitro diagnosis assay. Most importantly, it can be easily integrated with diverse biosensing methods to detect disease-related biomarkers.

A microfluidic biosensor can detect trace amounts of circulating biomarkers by i) ensuring sensitive and selective capture of biomarkers through frequent ligand-target binding and ii) employing a sensitive sensing mechanism to detect captured analytes. SERS can be easily integrated into a microfluidic device in the form of functionalized SERS substrates or SERS nanotags. Such integrated microfluidic SERS will therefore be an attractive candidate for liquid biopsy analysis. The scheme of microfluidic device-based SERS assays for liquid biopsy detection is illustrated in Fig. 3.

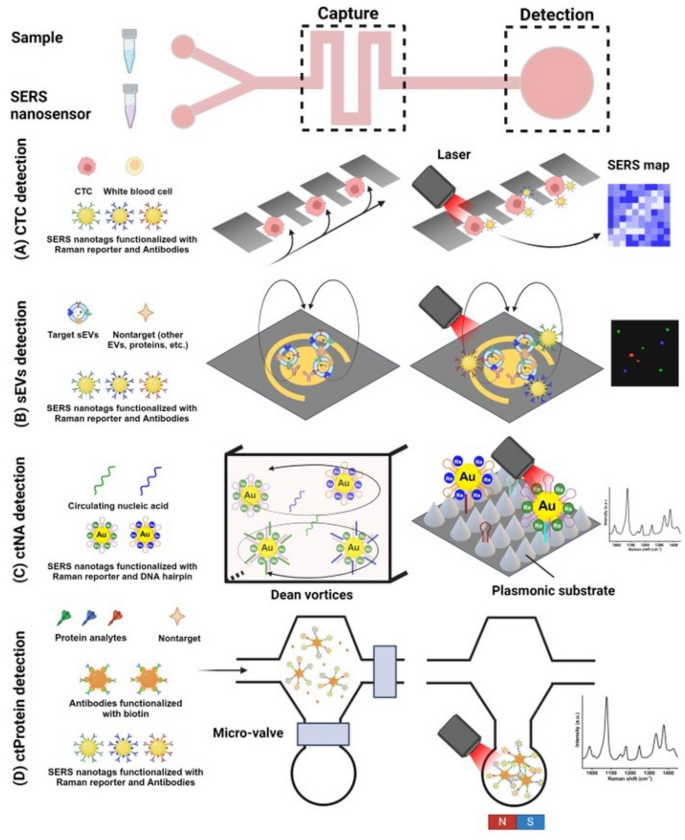

Fig. 3

Scheme of microfluidic device-based SERS assays for liquid biopsy detection. A typical microfluidic device should include a capture zone and a detection zone, which can be physically in the same or separate location. A CTC detection: an array of traps can capture CTCs based on their differential size followed by SERS mapping on individual captured cells. Reproduced with permission [114]. Copyright 2018, Wiley-VCH. B sEVs are much smaller than CTCs and therefore their captures require an efficient mixing at both micro and nano scales; a nanomixing device represents this concept. Reproduced with permission [128]. Copyright 2021, Wiley‐VCH GmbH. C Capture of ctNA requires even more efficient mixing, a serpentine channel creating Dean vortices provides such mixing capability which is followed by a further enhanced SERS signal using a plasmonic substrate. Reproduced with permission [131]. Copyright 2023, Dove Medical Press Limited. D Protein analytes require precision in capture and detection due to low analyte concentration. This can be achieved by a magnetic capture nanoparticle, flow control through a valving system and detection at small volumes for achieving higher analyte concentration. Reproduced with permission [138]. Copyright 2018, Springer Nature

4.1 CTCs

CTCs are rare cancer cells that can be as low as 1–10 CTCs per 10 mL of whole blood, [109] isolation of CTCs from blood is therefore essential in CTCs analysis. CTCs are on average larger than other blood cells, and express specific membrane proteins (such as EpCAM). Microfluidic devices leverage these differences to isolate CTCs from blood cells. Captured CTCs will then be used to profile expression of cancer-specific membrane proteins such as EpCAM, cytokeratin (CK), vimentin, and CD133, where the latter two markers used to identify mesenchymal and stem cells phenotypes [110,111,112]. The multiplexing capability and high sensitivity of microfluidic-integrated SERS biosensors can be used to target multiple membrane proteins at low expression level (such as low EpCAM expressing CTCs) [113].

Integration of SERS biosensors to a microfluidic device depends on the microfluidic isolation mechanism. For example, in a microfluidic trapping device (Fig. 3A), Zhang et al. used SERS nanovectors functionalized with detection antibody to target EpCAM, EGFR and HER2 proteins on captured CTCs. These nanovectors harbor unique Raman reporter molecules with distinct Raman peaks allowing independent and multiplexed analysis of the captured CTCs [114]. In another example Gao et al. used aptamer functionalized SERS nanotags to perform SERS mapping on individual cells to find epithelial-to-mesenchymal transition (EMT) CTCs. The drawback of this method is that the blood sample is mixed with SERS nanotags on the chip before entering the trapping zone, which increases the chance of channel clogging [115]. An alternative size-based CTC isolation methods is an inertial microfluidic device that isolates CTCs from blood into a separate outlet which is equipped with a SERS substrate [41].

Affinity-based isolation offers an alternative approach with the advantage of avoiding the loss of small CTCs. Cho et al. used biotinylated SERS nanotags to capture breast cancer CTCs on streptavidin coated micro-posts for a 5-plex SERS biosensing of MUC1, EpCAM, EGFR, HER2, and CD133 [116]. To increase the chance of CTC capture, Kamil Reza et al. used an alternating-current electrohydrodynamic (ac-EHD) device to create nanomixing near the electrode surface for enhanced CTC-capture substrate interaction [117].

An interesting development in SERS biosensor for CTC analysis is a multicolor iron oxide-Au SERS nanotag with dual functions: i) selective binding to CTCs expressing a target protein followed by magnetic isolation and ii) multiplexed profiling of membrane protein expression through their Raman reporter molecule coating. This method has been proposed by Wilson et al. and enabled capture and 4-plexed profiling of EpCAM, HER2, CD44, and IGF1R CTCs from 10X diluted blood samples. [118] The microfluidic device developed in this work uses much smaller sample volume, a high gradient of magnetic field across a narrow channel leading to more effective magnetic isolation, and combines isolation and detection in one device reducing the chances of CTC loss and cross-contamination.

To overcome the limitations imposed by the need to enrich CTCs before SERS detection, a high throughput cell screening using Raman-based flow cytometry can be performed. In this method introduced by Pallaoro et al., cells are focused in a narrow hydrodynamic flow focusing before passing through a laser [119]. This method was further enhanced by Kamil Reza et al. that detected three membrane proteins of MCSP, MCAM and LNGFR on melanoma cells via a single flow chamber with sensitivity as low as 10 cells in 1 mL of peripheral blood mononuclear cell (PBMC) [120].

Finally, microfluidic-SERS is a potent tool for functional analysis of single CTCs. An important function of cells is secreting proteins that facilitate cell–cell communication. This is particularly important in analysis of CTCs to find the most invasive phenotypes and to understand the phenotype-function correlation. To quantify this function, single cells can be encapsulated in nano-droplets together with a SERS nanoparticle [121] or a combination of a magnetic capture SERS substrate and a SERS nanotag [122]. The latter strategy allows dual SERS amplification by i) turning SERS signal ON through the Raman reporter molecule on magnetic nanoparticles adjacent to AgNPs and ii) leveraging the magnetic field-induced spontaneous collection effect, which brings 75 times enhancement for SERS signal [122]. Microfluidic droplet-based SERS biosensors has enabled quantification of critical cancer cells secretum including vascular endothelial growth factor (VEGF) and interleukin-8 (IL-8) that are indicators of tumor growth and expansion [122].

4.2 Circulating tumor-derived sEVs

Like CTCs, sEVs analysis involves isolation and profiling of surface membrane proteins. However, sEVs are significantly smaller than CTCs, measuring at nanoscale range. This intrinsic size difference calls for a new transport strategy that can manipulate these nanovesicles and enhance the contact frequency of EV-capture ligand both at the micro- and nanoscales.

There are several reports on isolation of sEVs based on their size, [123,124,125] however, on-chip sEVs detection is almost exclusively performed in a microfluidic affinity-based capture configuration (Fig. 3B). One of the most sensitive tumor-derived sEVs detection systems was reported by Wang et al. reaching a sensitivity of 1.6 × 10² sEVs/mL. In that work, authors used an efficient mixing strategy where the sEVs sample and the anti-CD63 functionalized magnetic beads were first passed through an array of patterned micropillars. sEVs bound to the anti-CD63 functionalized magnetic beads were then mixed with EpCAM Raman beads and immobilized in a detection zone for SERS detection [126].

A novel microfluidic device “EV phenotype analyzer chip (EPAC)” was introduced by Wang et al., which uses the principles of nanomixing to detect cancer-specific sEVs phenotypes from melanoma patient plasma. AuNPs coated with four Raman reporters and four capture antibodies were used in 4-plex detection of MCSP, MCAM, ErbB3, and LNFGR to monitor their changes during BRAF inhibitor treatment [127]. EPAC-II improved the performance of the previous version by incorporating an antibody cocktail and circulating nanomixing force, which reduces non-specific binding (Fig. 3B). Those improvements led to a 100-fold increase in detection sensitivity (from 10⁵ sEVs/mL to 10³ sEVs/mL). One of the challenges in working with this system is operational expertise [128].

In addition, a microfiltration microfluidic device that incorporates a nanoporous polycarbonate track etched (PCTE) membrane sandwiched between microfluidic channels was introduced for osteosarcoma diagnosis, [129] where sEVs and SERS nanotags are pre-mixed and then injected into the tangential flow filtration device for enriching sEVs immunocomplexes and removing free SERS nanotags and plasma biomolecules. This scheme enables 3-plex detection of CD63, EpCAM, and vimentin with sensitivity as low as 2 × 10³ sEVs/mL.

4.3 ctNAs

The genetic structure of ctNAs demands microfluidic SERS biosensors that are functionalized with capture oligonucleotides complementary to the ctNA sequence and a signal amplification mechanism to obtain detectable signals (Fig. 3C). Cao et al. reported a catalytic hairpin assembly (CHA) strategy where the presence of ctDNA triggers the formation of hairpin duplexes that join the SERS probes and the capture substrate. Capture of SERS probes over the reaction time led to the formation of hotspots that significantly increase the SERS signal [130]. This device contains three functional units: a micromixer for efficient capture of ctNAs on SERS probes, a detection zone, and a capillary network for the passive flow of analytes. The integration of an amplification step either before or after CHA reaction can significantly improve sensitivity, for example, Quian et al. and Cao et al. used this strategy to detect lung and gastric cancer ctDNAs at attomolar ranges [131, 132]. Interestingly, the sample and SERS nanotags were driven into the microfluidic device chambers through comb-like hydrophilic channels that create capillary flow, thus achieving the passive flow of sample without the need for a pump. This characteristic renders the microfluidic device a suitable choice for point-of-care and low-resource-settings [130].

A recent study in 2024 introduced another pump-free microfluidic SERS biosensor which uses vacuum generated by finger pressure to drive whole blood samples into the device [133]. The blood cells were rapidly removed by passing them through a filter trench before ctDNA capture and detection. Gold nanoprobes functionalized with hairpin structures and Raman reporters were used to detect the target ctDNAs. In the presence of target sequences, the hairpin structures straighten up and become linear in shape, thus increasing the distance between the gold nanorods and the Raman reporters, resulting in the reduction of SERS signal from the Raman reporters. The device successfully detected EGFR E746-A750 mutation in lung cancer patients with sensitivity of 100 fM.

The strategy of altering SERS signals by changing the distance between the Raman reporter molecule and the plasmonic substrate was also employed in the detection of miR-34a, a tumor suppressor molecule [134]. The detection zone in this device was functionalized with miR-34a-specific molecular beacon (MB) which is disrupted in the presence of miR-34a leading to detachment of the Raman reporter from the SERS substrate, resulting in the decrease of SERS signal. An interesting aspect of this device is its recyclability as the SERS substrate can be removed from the device for washing and reusing.

Capturing sEVs miRNAs can also be detected through sEVs capture and lysis on-chip [135]. A multifunctional microfluidic chip first captures sEVs from plasma samples using functionalized magnetic beads, then the captured sEVs are lysed by mixing with a lysis buffer. The lysed sample containing miRNA-21 passes through a detection zone where the miRNA displaces a previously immobilized DNA strand and activates a masked rolling circle amplification (RCA) primer. The subsequent RCA steps produce tandem periodic sequence units, facilitating the capture of numerous SERS nanotags that significantly increase the SERS signal, allowing for detection of miRNA-21 from sEVs with a sensitivity as low as 1 pM [135].

4.4 Circulating tumor-related proteins

The role of microfluidic SERS biosensors in detection of circulating proteins are i) ultra-sensitive detection in a wide protein concentration range of ng/mL to fg/mL, and ii) meeting the highly multiplexed detection requirement of circulating protein profiling, which is essential in obtaining a high-resolution picture of the tumour status.

Microfluidic channels can create a spatial pattern to achieve individual zones for parallel detection. In a study by Zheng et al., a microfluidic stamping device was first used to create patterns of AgNPs functionalized with capture antibodies against breast cancer specific biomarkers CA153, CA125 and CEA [136]. Subsequent stamps were made to introduce the sample followed by SERS nanoprobes for the detection. This strategy was also used for 3-plex detection of IL-6, IL-8 and IL-18 cytokines, which are stimulants of tumour cell proliferation, malignant transformation, and progression [137].

Several strategies have been employed to increase the capture of circulating protein and improve assay sensitivity. First, is a microfluidic SERS biosensor that comprised of a mixing unit to selectively capture proteins on antibody-conjugated magnetic nanochains (Magchain) followed by opening a microfluidic valve for mixing with SERS-encoded probes to form sandwich immune complexes (Fig. 3D) [138]. The mixed sample is then exposed to a magnetic field which routes Magchains with attached proteins to a Raman detection zone. This device allowed detection of prostate-specific antigen (PSA), carcinoembryonic antigen (CEA), and α-fetoprotein (AFP) circulating proteins with high sensitivity of 10 pg/mL. The second strategy is ac-EHD device developed by Kamil et al., which benefits from the increased surface area offered by graphene oxide substrate and micromixing through electrohydrodynamic flow for 4-plex detection of HER2, EGFR, MUC1, MUC16 at the high sensitivity of 10 fg/mL [139].

Finally, microdroplet systems also offer increased mixing efficiency for improved capture and sensitivity. In this strategy, the sample, capture magnetic beads and SERS nanotags are first mixed into droplets that follow a winding channel that creates a chaotic advection for mixing the reagents. A Y-shaped splitting junction breaks up the droplet to separate the immunocomplexes from the residual SERS nanotags. The immunocomplexes are then collected in a separate chamber and analysed via SERS.

In summary, microfluidics-SERS provides benefits of low sample consumption, portability for point-of-care testing, delicate manipulation of input analytes, and superior integration with SERS biosensors. Efficient capture and detection are at the core of all microfluidic-SERS biosensors. However, each circulating biomarker has its own requirement, as presented in Table 3. First, the design of the microfluidic device should be tuned to enable manipulation of input sample. For instance, CTCs need to be isolated from blood samples, and EVs and ctNAs need to frequently collide with the functionalized capture substrates through one of the mixing strategies. Second, the microfluidic device should deliver SERS nanosensors to the captured analytes uniformly while simultaneously preventing their clogging and aggregation. These two criteria directly affect the device’s sensing capability quantified via assay sensitivity, specificity and multiplexity. Ligand conjugated SERS nanoparticles need to efficiently find their target (i.e. high sensitivity), while removing the chance of non-specific binding through washing steps (i.e. high specificity). As a final evaluation criterion, it is important to have a holistic view of each microfluidic method and its advantages in clinical application. Assay time, ease of manipulation, SERS interface integration, minimal contamination, and flexible and automated operation are all important factors in assessing a microfluidic SERS biosensor platform for a specific application.

Table 3 Microfluidic SERS biosensors for detection of circulating markers for cancer diagnosis

5 Paper-based SERS assay

The use of paper as a substrate for detection assays has a long history that extends over many centuries, with some of the earliest instances being traced as far back as the seventeenth century [150, 151]. Over time, numerous scientific advancements have paved the way towards the development of modern paper-based detection assays for increasingly complex applications. The invention of paper chromatography in 1944 laid the groundwork for the paper chromato-electrophoresis radioimmunoassay in 1959, which introduced the immunoassay technology that led to the invention of the pregnancy test: the first at-home paper-based point-of-care (POC) test to reach the market in 1985 [151,152,153,154,155].

Since then, paper-based detection assays have continued to evolve and diversify into established FDA-approved tools for diagnosis and disease monitoring. Paper substrates are often the preferred platform for designing POC tests due to their cost-effectiveness, biocompatibility, adaptability, and portability, which are attributes that satisfy most of the ASSURED criteria (Affordable, Sensitive, Specific, User-friendly, Rapid and robust, Equipment-free, and Deliverable to end users) outlined by the World Health Organization (WHO) in 2006 to evaluate the effectiveness of POC devices [156,157,158].

These devices come in various forms (Fig. 4), including as lateral flow assays (LFAs), vertical flow assays (VFAs), microfluidic paper-based analytical devices (µPADs), and simple filter paper-based assays. LFAs are the most common type of paper-based detection assays commercially available, this is the format of most pregnancy and COVID-19 rapid antigen tests (RATs). A typical LFA (Fig. 4A) is composed of a sample pad, a conjugate pad, a nitrocellulose (NC) reaction membrane, and an absorbent pad, all fixed onto a strong backing card for support and durability. Liquid sample is first added to the sample pad, and as the name suggests, it travels laterally along the assay due to the capillary action of the porous substrates, subsequently, the sample enters the conjugate pad where it encounters detection bioreceptors that bind to the sample and create bioreceptor-sample complexes. Gold nanoparticles (AuNPs) are the most common detection bioreceptors used in LFAs, they are conjugated with antibodies against the target analyte and dried in the conjugate pad. Upon contact with the liquid sample, the AuNPs are re-solubilized and released from the pad to bind to the target analyte via the antibodies, the bioreceptor-sample complexes then continue to travel along the assay into the NC membrane where the test and control lines are located. The test line contains capture bioreceptors that bind to the target analyte. When the bioreceptor-sample complex reaches the test line it becomes immobilized on the NC membrane, thus forming a sandwich-like structure linking the AuNPs, the detection antibody, the target analyte, the capture antibody, and the NC membrane together. The accumulation of various AuNPs onto the test line produces a red signal that indicates the presence of the target analyte. If no signal is produced, then there was no target analyte to form linkages between AuNPs and the NC membrane. Control lines are added as quality control, they are designed to produce a signal regardless of the presence of the sample.

Fig. 4

Scheme of paper-based SERS assays for liquid biopsy detection representing A a lateral flow assay device (left) and a lateral flow assay strip (right) depicting the lateral movement of the sample from the sample pad to the conjugate pad, nitrocellulose membrane, and absorbent pad; B a vertical flow assay device (left) and a vertical flow assay structure with the reaction membrane/substrate and absorbent pad arranged vertically (right), depicting the addition of the sample to the device followed by detection using gold nanoparticle bioreceptors; and C the modification of filter paper with alkyl groups that allows the attachment of gold nanoparticles (red) on the substrate to enhance Raman signals

VFAs help mitigate the “hook effect” that can cause false negatives in LFAs when used for samples with very high concentrations of analyte [159, 160]. The pads and membranes of VFAs are organized vertically so that the sample traverses across the conjugate pad, the NC membrane, and the absorbent pad (Fig. 4B). Some VFAs consist of only a NC membrane and an absorbent pad, here the AuNPs detection bioreceptors are pre-mixed with the sample beforehand and then added to the device. On other occasions, the untreated sample is added first, then a conjugate pad is placed over the VFA and the AuNPs are released with buffer.

µPADs were developed more recently in 2007 and quickly became one of the most researched paper-based platforms due to their affordability and portability [151, 161]. Their principle focuses on patterning paper to create microchannels that direct liquid reagents and samples through the device. This was a groundbreaking technique due to the increased control that allowed for the development of increasingly complex devices. In contrast, filter paper-based assays (Fig. 4C) are usually simple devices composed of functionalized filter paper with at least one test zone.

The first detection assay to combine paper substrates and SERS was introduced in 2010 by Yu and White, and a few years later in 2014, Li et al. pioneered the development of the first SERS-based immunochromatographic assay that was pivotal for the development of various forms SERS-based LFAs commonly studied today [162, 163]. The integration of SERS in paper-based assays remarkably improved sensitivity and allowed for the quantification of analytes, which is not possible with the colorimetric formats commonly used. Consequently, assay portability and user-friendliness were negatively affected by the need for external equipment to read and measure Raman signals. Although this disadvantage could soon be mitigated with the introduction of portable SERS readers, the equipment requirements still make it difficult for SERS-based assays to meet ASSURED criteria for POC tests [156,157,158, 164].

Nevertheless, increased assay sensitivity is particularly important for the detection of scarce biomarkers, like in the early detection of diseases where biomarkers might not be as abundant. Cancer is a very common disease in which early diagnosis is paramount for a good prognosis. As such, highly sensitive techniques would be very helpful for disease monitoring and the reduction of mortality rates. This section describes recent advancements in paper-based assays that use SERS technology for the detection of common liquid biopsy biomarkers, including CTCs, ctNAs, sEVs, and circulating cancer protein biomarkers. The scheme of the paper-based SERS assay for liquid biopsy detection is illustrated in Fig. 4.

5.1 CTCs

Although CTCs have been the focus of various paper-based devices, the integration of SERS with paper-based devices for the detection of CTCs remains unexplored to date. Moreover, among the limited number of paper-based devices for CTCs detection, the majority were validated with human serum samples spiked with cancer cell lines. Therefore, these devices might not be as effective when used with clinical patient samples due to the complexity of blood samples [165,166,167]. This might be due to the markedly low abundance of CTCs in blood, with a concentration of 1–10 to 10–100 CTCs per mL of whole blood, [109, 168, 169] and the evident difficulties in procuring real CTCs patient samples.

5.2 ctNAs

Colorimetric LFAs perform best with uniform nanoparticles with smooth spherical surfaces, while nanoparticles with rough surfaces are best suited for SERS-based LFAs [170]. Li et al. recently developed two LFAs for the detection of ctDNA and miRNA in clinical serum samples [171, 172]. The SERS substrates for both LFAs were palladium gold core–shell nanorods (Pd-AuNRs) conjugated with Raman reporters, and detection was coupled with catalytic hairpin assembly (CHA) for signal amplification. Tips, edges, and rough surfaces in nanoparticles serve as “hot spots” for generating strong SERS signals. Therefore, rougher nanoparticles such as gold nanostars (AuSts) and Pb-AuNRs lead to higher enhancement factors (EF) of the Raman signal compared to gold nanospheres [171,172,173,174,175]. The Raman signal from Pb-AuNRs is further enhanced with CHA, an amplification-free method that increases the binding of Pb-AuNRs to the test line. Pb-AuNRs are coupled with biotinylated hairpin structures that unravel after hybridization with sample strands to expose the biotin molecule, which binds to streptavidin immobilized on the NC membrane, thus driving the accumulation of Pb-AuNRs on the test line. The sample strands are freed by the introduction of another sequence with higher affinity to the hairpin structures, in this way, the hairpin structures remain open with the exposed biotin molecule, while the sample strands are recycled through the system. The accumulation of Pb-AuNRs on the test line is therefore independent from the number of sample strands present, thus greatly amplifying the generated signal.

These principles were applied for the detection of TP53 and E545K ctDNA biomarkers, and miR-106b and miR-196b biomarkers in serum samples from laryngeal squamous cell carcinoma patients [171, 172]. The LOD for both LFAs reached attomolar levels ranging from 23.1 to 61.3 aM within 30–45 min, with results comparable to qRT-PCR [171, 172]. Mao et al. applied the same CHA principle in another LFA for the multiplexed detection of miR-21 and miR-196a-5p on a single test line, achieved by using two SERS probes that can be distinguished in the same Raman spectrum due to their distinct Raman peaks. Although this assay demonstrated higher LODs ranging from 2.2 ‒ 3.3 pM, it offered the distinct advantage of the simultaneous detection of two biomarkers in non-invasively collected urine samples [176].

Multiple hairpin sequences and long preparation times for SERS probes might negatively affect the cost-effectiveness and accessibility of these LFAs. Although sensible, the stability of the SERS probes and hairpin structures within LFA materials remains to be elucidated. Moreover, the preparation processes of clinical specimens were not detailed in the studies, so it is unclear whether any type of nucleic acid isolate or enrichment was performed prior to adding samples to the LFAs.

5.3 Circulating tumor-derived sEVs

Recently, Su et al. developed two types of paper-based devices for the quantification of breast cancer exosomes in serum: a 3-plex VFA and a 2-plex LFA [177, 178]. These two platforms are vastly different, with distinct advantages and disadvantages. The VFA was made to quantitatively profile serological exosomes from different breast cancer subtypes through the detection of exosomal surface proteins carcinoembryonic antigen (CEA), human epidermal growth factor receptor 2 (HER2), and Mucin 1 (MUC1) [177]. AuSts coupled with the Raman reporter p-nitrothiophenol (p-NTP), and anti-CD63 aptamers were used as SERS probes, while three different test zones were coated with capture aptamers against HER2, MUC1, and CEA [177]. The different Raman signals from the test zones were used to measure the proportions of exosomal surface proteins and discriminate between exosomes from different origins. This approach was applied to analyze samples containing a mixture of exosomes derived from four breast cancer cell lines (MCF-7, SKBR-3, MDA-MB-231 and BT474) in a 50% FBS medium, as well as four breast cancer subtypes (luminal A/B, HER2, triple negative) in human serum samples [177]. Although a good discrimination of exosomal protein expression profiles was observed, it is important to note that these findings were obtained using samples with known exosomal origins. This becomes more evident through the examination of the profiles of HER2 and luminal B serum samples, which were nearly indistinguishable from one another. A blind study with sample mixtures of unknown proportions or breast cancer subtypes would be beneficial to accurately measure the efficacy of this assay in profiling exosomes. Another issue posed by this approach, also observed in other multiplexed assays, is that a sample might contain a heterogenous mixture of exosomes from different origins or cancer subtypes and that each type of exosome can contribute to the final Raman signal differently. The strongest Raman signals from the most prominent group of exosomes could overshadow the more subtle signals from the minority groups, thus certain exosomes in the mixture might be overlooked in the analysis.

Su et al.’s LFA sought to overcome this issue by integrating two spectrally different SERS probes made of AuSts coupled with distinct Raman reporters and aptamers against HER2 and MUC1 on the conjugate pad, while coating the test line with anti-CD63 aptamers [178]. Similar to Mao et al., HER2 and MUC1 were simultaneously detected on a single test line using these two SERS probes with distinct Raman reporters [176, 178]. Su et al. took this a step further by using the combined Raman signals of the SERS probes to generate distinct Raman signatures that can differentiate between exosomes derived from SKBR-3 and MCF-7 cell lines (SKBR and MCF exosomes) [178]. A mixture of SKBR and MCF exosomes can result in a total of four Raman signals on the test line: SKBR-3 exosomes + HER2 /MUC1 probes, and MCF exosomes + HER3/MUC1 probes. Since there are only two Raman reporters here, there is no way to distinguish between the Raman signals from SKBR and MCF exosomes. Multivariate spectral unmixing analysis solved this issue by separating the combined Raman spectra of the two SERS probes into two separate individual spectra that each represent a different type of exosome. Traditional methods, similar to Su et al.’s VFA, identify the proportions of multiple biomarkers in the sample as whole without considering that the sample can contain different types of exosomes that each contribute to the final Raman spectra differently. In contrast, this approach can differentiate between exosome subtypes in a complex matrix, thus providing a more comprehensive analysis of the sample [178]. Low LODs of 3.27 × 10⁶ SKBR exosomes/mL and 4.80 × 10⁶ MCF exosomes/mL were observed, although this was measured in 50% FBS instead of human serum. While the assay required a large volume of 100 µL isolated exosomes, it is noteworthy that the procedure was completed in only 15 min and validation with 39 breast cancer human serum samples yielded results in line with ELISA [178].

5.4 Circulating tumor-related proteins

Various studies have reported the potential improvement in diagnostic efficacy of detection assays capable of identifying multiple protein biomarkers, as opposed to assays focused on a single protein biomarker [179,180,181,182]. Multiplexed paper-based SERS assays are often designed by immobilizing distinct capture bioreceptors to multiple test zones, each aimed at detecting specific biomarkers. In contrast, alternative designs combine different capture bioreceptors into a singular test zone for the simultaneous detection of multiple biomarkers. In 2019, Chen et al. reported the first multiplexed SERS-based VFA by immobilizing capture antibodies against CEA, AFP, and PSA on a single test dot [183]. The assay procedure was completed in 7 min with as little as 10 µL of serum, and, although only 5 replicates were tested, consistent results between the VFA and ELISA were observed with prostate cancer human serum samples. Low LODs of 0.260–0.370 pg/mL were obtained using Raman dye (RD) encoded core–shell (Au@Ag) SERS nanotags that further enhance Raman scattering through the nanogaps between the gold core and the silver shell [183]. This creates the plasmon coupling effect that amplifies the electric field on the nanoparticle surfaces and leads to significantly enhanced Raman signals. However, since the LOD was determined without the use of biological samples, it is probable that clinical serum specimens will result in higher LODs [183]. In 2020, Xia et al. also developed a multiplexed single-test line LFA for the detection of squamous cell carcinoma antigen (SCCA) and cancer antigen 125 (CA125) in cervical cancer human serum samples [184]. This reduces variability in LFAs caused by the different distances between test lines and the sample pads [185]. The assay was completed within 20 min with a LOD of 7.37 pg/mL for SCCA and 8.10 pg/mL for CA125 [184]. While Xia et al.’s assays did not display the same level of sensitivity as those developed by Chen et al.’s, it is noteworthy that Xia et al.’s LOD was measured and validated against ELISA with 120 serum samples [183, 184].

Lu et al. proposed a filter paper-based SERS assay with a single test zone coated with capture antibodies against SCCA and osteopontin (OPN) for the detection of cervical cancer human sera samples [186]. Notably, an interesting mechanism for Raman enhancement was introduced by coating the filter paper with gold nanoflowers (AuNFs) coupled with the capture antibodies on the test zone [186]. Since there is no conjugate pad, the sample was added directly to the filter paper followed by the addition of SERS immunoprobes after an incubation period of 1 h [186]. Gold-silver nanoshuttles (Au-AgNSs) in the SERS immunoprobes are elongated with arrow-like structures at both ends of the particles, which serve as hot spots for enhancing the electric field and increasing the Raman signals [186]. This signal is further enhanced by the plasmonic coupling effect from the close distance between the AuNFs on the filter paper and the Au-AgNSs in the SERS immunoprobes. Although this assay seems simple, it has a lengthy operation time of > 2 h and a combined fabrication time of > 18 h [186]. Noteworthy results were nevertheless obtained, with low LODs recorded at 8.63 pg/mL for SCCA and 4.39 pg/mL for OPN [186]. Furthermore, a strong correlation between ELISA and this approach was established during validation with cervical cancer serum samples [186].

Fan et al. and Peng et al. took this approach one step further by integrating conventional SERS-LFAs with a plasmonic internal standard (PIS) made of plasmonic nanoparticles embedded into NC membranes [187, 188]. In this new LFA, called PIS-LFA, sample molecules travel to the conjugate pad to bind with the SERS immunoprobes and form complexes, which then travel along the NC membrane to encounter the PIS nanoparticles as well as the test and control lines. The nanogaps between the PIS nanoparticles on the NC membrane and the SERS immunoprobes create the plasmon coupling effect that significantly enhances Raman signals [187, 188]. The plasmonic nanoparticles on the PIS also generate a Raman signal independently from the SERS immunoprobes, this serves as a constant background signal that can be used as a normalization factor by calculating the Raman peak intensity ratio between the SERS immunoprobes and the PIS [187, 188]. This reduces signal variation from external factors, thus improving overall assay sensitivity and reproducibility. An advantage of Fan et al.’s design was the addition of capture antibodies against CEA and neuron-specific enolase (NSE) onto a singular test line, thus allowing the simultaneous detection of both biomarkers [188]. Consistent results in the detection of CEA and NSE with early-stage lung cancer human serum samples were observed using both the PIS-LFA and electrochemiluminescence immunoassays (ECLIA) [188]. Although low LODs of 39.0 pg/mL and 46.0 pg/mL were achieved for both CEA and NSE, respectively, it is important to note that these measurements were obtained without the use of biological samples [188].

Nanostructures of various shapes and sizes have been engineered to increase the number of nanogaps or hot spots, with the goal of significantly enhancing Raman scattering. This was observed when She et al. used the curiously shaped raspberry-like Fe₃O₄@Au magnetic nanoparticles (RAuMNPs) in a multiplexed LFA for the detection of AFP, CEA, and PSA [189]. These NPs consist of a 150 nm magnetic iron core, initially coated by 20 nm AuNP seeds interspersed with smaller 3 nm AuNPs seeds [189]. The final raspberry-like nanostructure is synthesized when the AuNP seeds are grown on the surface of the iron core via the nucleation reaction of gold chloroauric acid [189]. Nanogaps of 1.4 nm are created between the surface AuNPs of different sizes that generate various hot spots, significantly enhancing Raman signals and giving the RAuMNPs an EF of 2.27 × 10⁷, which was higher than the EF of gold nanospheres, AuNRs, AuSts, and other Fe₃O₄@Au magnetic nanoparticles with a smooth gold coating [171,172,173,174,175, 189]. Additionally, the RAuMNPs also function as magnetic beads to separate and enrich the target analyte before using the LFA. This sample enrichment in conjunction with Raman enhancement culminated in the sensitive detection of AFP, CEA, and PSA in bovine serum samples, with low LODs of 1.92 pg/mL, 3.84 pg/mL, and 1.43 pg/mL respectively [189].

Among all the devices listed in Table 4, Shen et al.’s approach yielded the lowest LODs measured with spiked serum samples [189]. This method can potentially be applied to other types of biomarkers that require enrichment procedures, such as CTCs. However, this could also present a shortcoming for POC settings, as the additional preparation steps might be cumbersome and time-consuming. In contrast, Gao et al. developed a SERS-based LFA for the direct detection of CEA from whole blood, eliminating the need for sample pre-treatment [190]. While not as sensitive as other devices mentioned here (1 ng/mL LOD), it stands out as the device that is closest to satisfying the ASSURED criteria, second only to the urine-based LFA for miRNA [176, 190].

Table 4 Paper-based SERS assay for the detection of cancer-derived circulating biomarkers

All in all, the integration of SERS into paper-based assays has significantly increased sensitivity and enabled the detection of scarce biomarkers important for early disease diagnosis and monitoring. Table 4 has summarized the paper-based SERS assays for the detection of ctNAs, circulating tumor-derived sEVs and related proteins that were developed in the last 5 years. Paper-based SERS assays are relatively unexplored in comparison with other types of SERS-based detection assays, particularly for the detection of CTCs, highlighting a significant gap in the current research. Despite the enhanced sensitivity, challenges in terms of portability and user-friendliness persist due to the reliance on external equipment to measure Raman signals. This makes it difficult for assays to meet the stringent ASSURED criteria for POC tests outlined by WHO. Nevertheless, advances such as new shapes of nanoparticles with more hot spots for enhancing Raman signals, the integration of a plasmonic internal standard for reducing background signals, and utilization of multivariate spectral unmixing for distinguishing between complex samples are crucial for the continued improvement of paper-based assay technologies that have the potential to revolutionize disease detection and monitoring.

6 Conclusions, perspectives and outlook

In conclusion, liquid biopsy based cancer diagnosis benefits from a diverse range of SERS biosensor platforms, including label-free SERS assay, bead-based sensors, microfluidic device systems, and paper-based assays, each demonstrating unique capabilities in enhancing the sensitivity and specificity of circulating cancer biomarker detection: i) label-free SERS assays explore the elimination of exogenous SERS labels, simplifying assay procedures and facilitating real-time detection of circulating biomarkers, thereby accelerating diagnostic processes, ii) bead-based SERS biosensors leverage functionalized beads to capture and analyze diverse circulating biomarkers, demonstrating potential for multiplexed detection and precise characterization; iii) microfluidic device-based biosensors represent a frontier in liquid biopsy, enabling precise manipulation of small sample volumes, high-throughput analysis, and integration with SERS technology for enhanced sensitivity and rapid biomarker detection; iv) paper-based SERS biosensors offer portable and cost-effective diagnostic solutions, widening access to liquid biopsy technologies and enabling point-of-care applications. Therefore, this comprehensive review illuminates the transformative impact of SERS-based biosensors in liquid biopsy, empowering accurate and non-invasive detection of circulating biomarkers for improved cancer diagnosis and treatment management.

The continued evolution of SERS biosensors holds immense potential in several key areas, including i) The paradigm of label-free SERS assays is anticipated to witness extensive exploration, driven by the quest for simplification and real-time detection. Innovations in plasmonic nanostructures paves the way for highly sensitive label-free SERS assays, minimizing complexities in sample preparation and expediting diagnostic workflows; ii) The advancement of beads-based SERS biosensors, with their capacity for multiplexed analysis and improved capture efficiency, presents an opportunity for simultaneous profiling of multiple biomarkers, enabling a more comprehensive understanding of tumor heterogeneity and aiding in personalized treatment strategies; iii) Microfluidic device-based biosensors are anticipated to undergo refinements in design and functionality, enabling seamless integration with SERS technology. The future integration of microfluidic systems with advanced SERS detection promises enhanced throughput, precise manipulation of minute sample volumes, and real-time analysis, catalyzing the translation of liquid biopsy into routine clinical practice; iv) The trend of paper-based SERS biosensor is poised towards further miniaturization, cost-effectiveness, and integration with portable devices, facilitating decentralized cancer diagnostics. This evolution could revolutionize resource-limited settings and empower healthcare providers with rapid, on-site diagnostic capabilities, thereby addressing accessibility gaps in cancer care.

Despite these promising prospects, several challenges persist in the field of SERS biosensors for liquid biopsy. Standardization of protocols, validation of assays, and harmonization of data analysis remain pivotal for ensuring reproducibility and reliability across different platforms. Additionally, addressing concerns regarding cost, scalability, and regulatory consideration will be imperative for their widespread adoption in clinical settings.

In summary, the convergence of SERS biosensors with liquid biopsy represents a new era in cancer diagnostics, offering non-invasive, sensitive, and multiplexed detection of circulating biomarkers. The future trend involves concerted efforts towards technological refinements, addressing challenges, and fostering collaborations between academia, industry, and regulatory bodies to propel SERS-based liquid biopsy into routine clinical practice, ultimately revolutionizing cancer diagnosis and patient care.
