Quantum hybridization negative differential resistance from non-toxic halide perovskite nanowire heterojunctions and its strain control

Abstract

While low-dimensional organometal halide perovskites are expected to open up new opportunities for a diverse range of device applications, like in their bulk counterparts, the toxicity of Pb-based halide perovskite materials is a significant concern that hinders their practical use. We recently predicted that lead triiodide (PbI3) columns derived from trimethylsulfonium (TMS) lead triiodide (CH3)3SPbI3 (TMSPbI3) by stripping off TMS ligands should be semimetallic, and additionally ultrahigh negative differential resistance (NDR) can arise from the heterojunction composed of a TMSPbI3 channel sandwiched by PbI3 electrodes. Herein, we computationally explore whether similar material and device characteristics can be obtained from other one-dimensional halide perovskites based on non-Pb metal elements, and in doing so deepen the understanding of their mechanistic origins. First, scanning through several candidate metal halide inorganic frameworks as well as their parental form halide perovskites, we find that the germanium triiodide (GeI3) column also assumes a semimetallic character by avoiding the Peierls distortion. Next, adopting the bundled nanowire GeI3-TMSGeI3-GeI3 junction configuration, we obtain a drastically high peak current density and ultrahigh NDR at room temperature. Furthermore, the robustness and controllability of NDR signals from GeI3-TMSGeI3-GeI3 devices under strain are revealed, establishing its potential for flexible electronics applications. It will be emphasized that, despite the performance metrics notably enhanced over those from the TMSPbI3 case, these device characteristics still arise from the identical quantum hybridization NDR mechanism.

Introduction

Research in halide perovskites field has rapidly progressed due to their potential for optoelectronic applications such as solar cells, lasers, photodetectors, and light-emitting diodes [1,2,3,4,5]. However, excellent materials properties like defect tolerance, long charge carrier diffusion length, low cost, facile synthesizability, etc. make them also promising for non-optoelectronic device applications. Recently, we predicted that the one-dimensional (1D) inorganic lead triiodide (PbI3) framework derived from the trimethylsulfonium lead triiodide (CH3)3SPbI3 (TMSPbI3) perovskite by removing TMS ligands should be semimetallic, rendering it a promising electrode material [6]. Moreover, in view of realizing advanced multi-valued logic devices [7,8,9], we predicted large room-temperature negative differential resistance (NDR) with high peak-to-valley ratios and current densities can be derived from PbI3-TMSPbI3-PbI3 heterojunction tunneling devices [6]. However, as in the case for solar cell applications [10,11,12,13], the toxicity of Pb-based halide perovskites could potentially become the bottleneck for its commercialization.

In this work, adopting a first-principles approach that combines density functional theory (DFT) and nonequilibrium Green’s function (NEGF) approaches, we discuss the electronic and quantum transport characteristics of non-toxic TMS germanium triiodide (CH3)3SGeI3 (TMSGeI3) and its inorganic framework, germanium triiodide GeI3. We first confirm that the quasi-1D organic-inorganic hybrid halide perovskite TMSGeI3 with a semiconducting character is dynamically stable. Concurrently, we find that its 1D inorganic framework, GeI3, which adopts the face-sharing [GeI6] octahedral geometry, assumes a semi-metallic character like PbI3. Next, considering van der Waals (vdW) bundled quasi-1D heterojunctions in which semiconducting TMSGeI3 channels with sub-5 nm dimensions are sandwiched between semimetallic GeI3 electrodes, we obtain excellent NDR properties characterized by high NDR peak current density (up to ~ 2700 kA·cm−2) and peak-to-valley current ratios (PVRs, up to ~ 44) at low-bias regimes (< 0.8 V). Importantly, we also demonstrate the NDR performances are robustly preserved even after uniaxial strains are applied along the GeI3-TMSGeI3-GeI3 heterojunction column direction, and particularly under a 4% compressive strain NDR metrics can be further enhanced to the enormous NDR peak current density of 5300 kA·cm-2 and PVRs of 87. It will be emphasized that these superb NDR characteristics originate from the quantum hybridization NDR mechanism [6, 14].

Methods/experimental

DFT calculations

We performed DFT calculations with the Vienna Ab-initio Simulation Package [15]. The plane-waves were expanded with a kinetic energy cutoff of 500 eV to obtain basis sets with the self-consistency cycle convergence energy criterion of 10− 8 eV. Atomic structures were optimized using conjugate-gradient approach until the Hellmann–Feynman forces were less than 0.001 eV/Å. The simulations were performed within the Perdew-Burke-Ernzenhof parameterization of generalized gradient approximation revised for solids (PBEsol) [16], which was confirmed to be a suitable exchange-correlation functional for describing TMS-based halide perovskites including their intercolumn vdW interactions [6]. The core and valence electrons were handled by the projector augmented wave method [15]. The k-point meshes of 5 × 5 × 8 and 1 × 1 × 8 were employed for unit cells of three-dimensional (3D) TMSGeI3 and 1D GeI3 wire structures, respectively. A vacuum space of more than 15 Å was inserted perpendicular to the periodic 1D structure to avoid interactions with their neighboring images in a periodic boundary condition setup. In order to determine the dynamic stability of TMSGeI3 perovskite and GeI3 inorganic metal-halide nanostructure, we adopted the 2 × 2 × 3 and 1 × 1 × 4 supercells, respectively, and computed the force constant matrices based on small displacement method.

DFT-based NEGF calculations

For the finite-bias non-equilibrium electronic structure calculations, we used the DFT-NEGF method implemented within the TranSIESTA code [17, 18]. The surface Green’s function gs were extracted from separate DFT calculations for four unit cells of GeI3 crystals with the 5 × 5 \({k}_{\parallel }\)-point sampling along the surface ab plane and 10 \({k}_{\perp }\)-point sampling along the surface-normal charge transport c direction. The transmission functions were then obtained according to

$$T\left(E;{V}_{b}\right)=Tr\left[{\Gamma }_{L}\left(E;{V}_{b}\right)G{\left(E;{V}_{b}\right)\Gamma }_{R}\left(E;{V}_{b}\right){G}^{\dag }\left(E;{V}_{b}\right)\right],$$
(1)

where G is the retarded Green’s function for the channel C and \(\Gamma _{{L/R}} = i\left( {\Sigma _{{L/R}} - \Sigma _{{L/R}}^{\dag } } \right)\) are the broadening matrices. The current density–bias voltage (J-Vb) characteristics were calculated by invoking the Landauer-Büttiker formula [19],

$$I\left({V}_{b}\right)=\frac{2e}{h}{\int }_{{\mu }_{L}}^{{\mu }_{R}}T\left(E;{V}_{b}\right)\left[f\left(E-{\mu }_{R}\right)-f(E-{\mu }_{L})\right]dE.$$
(2)

Aanalyses on DFT-NEGF calculation output were performed using the Inelastica code and our in-house codes that implement the multi-space constrained-search DFT formalism [14, 20,21,22].

Results and discussion

Screening process of metal-halide inorganic frameworks to detect metallicity

A ubiquitous key challenge in hybrid halide perovskite-based device applications is how to eliminate the hazards of Pb exposure [10,11,12,13]. Naturally, the approach employing another group 14 metal, Sn or Ge, has been actively explored as a viable option to eliminate the hazardous Pb element. In view of coming up with a non-toxic alternative to the semimetallic 1D PbI3 nanowire and its semiconducting quasi-1D parental perovskite form TMSPbI3, we thus performed the computational screening process (see Fig. 1a, left) by adopting the structural template of distorted face-sharing [BX6] octahedral geometry of PbI3 and replacing Pb with Ge or Sn as a cation B in combination with three different types of halogen anions (X: Cl, Br, and I). In Fig. 1b and c, we show the atomic structures of non-toxic bulk TMSGeI3 perovskite and its inorganic core GeI3 nanowire, respectively, optimized within the PBEsol [16]. Note that theGeI3 framework composed of connected face-sharing [GeI6] octahedra can be prepared by removing two organic TMS ligands per TMSGeI3 unit cell. Similar to the experimentally synthesized TMSPbI3 counterpart [23, 24], the 3D crystal structure of TMSGeI3 has hexagonal symmetry in the space group P63mc (no. 186) and can be considered as a composite of semi-1D TMSGeI3 columns assembled by vdW interactions.

Fig. 1
figure 1

a Schematic of a tiered “funnel” screening pipeline (left) utilized to discover low-dimensional hybrid halide perovskites for NDR devices. The screening results are summarized in the table (right). b Crystal structures of quasi-1D bulk TMSGeI3 and c 1D GeI3 inorganic core-only face-sharing octahedral framework. The black dotted boxes indicate the unit cells for each case

As the first step of our computational screening pipeline, we considered the BX3 inorganic framework candidates in view of the electronic structure and their dynamical stabilities. The screening results are summarized in the right panel of Fig. 1a, and the optimized atomic structures of BX3 inorganic framework candidates are provided in Fig. 2a. We then observe that Br- or Cl-based metal halides, GeBr3, GeCl3, SnBr3, and SnCl3, as well as PbBr3 and PbCl3, assume semiconducting characters with the B-X bond-length alternation or contracting-expanding Peierls distortions of [BX6] octahedral cages (Fig. 2a top panel). On the other hand, in the case of I-based metal halides, GeI3, and SnI3, uniform (i.e., without Peierls distortion) Ge-I bond lengths of 2.82 Å and Sn-I bond lengths of 2.93 Å were observed from the optimized GeI3 and SnI3 structures, respectively (Fig. 2a). These bond lengths are comparable to the uniform Pb-I bond lengths of 3.06 Å in the PbI3, nanowire. Then, as hinted by the avoidance of the Peierls distortion and like in the PbI3 case, GeI3 and SnI3 assume semi-metallic characters by preserving a linear dispersion at the Fermi-level (Fig. 2b).

Fig. 2
figure 2

a The atomic geometries of 1D face-sharing octahedral frameworks of Peierls-distorted GeCl3, and Peierls distortion-avoiding GeI3, and SnI3 inorganic nanowires. b The electronic band spectra showing the semiconducting character of GeCl3 and semimetallic nature of GeI3 and SnI3 nanowires. For GeI3, in addition to the PBEsol band structure (black solid lines), HSE data are presented (red dotted lines). c Phonon band spectra (left panels) and corresponding vibrational DOS (VDOS; right panels) of GeI3 and SnI3 nanowires. For the vibrational DOS, we show the projections to Ge or Sn (red lines), and I (green lines)

At this point, we provide more explanations on the mechanisms of the emergent semi-metallicity or the avoidance of Peierls distortions in PbI3, GeI3 and SnI3 nanowires. The synthesis of TMSPbI3 demonstrated that, unlike typical amine-based A cations, the sulfur-based (CH3)3 S+ cation can play a unique role of stablizing 1D PbI3 frameworks. Then, the removal of TMS ligands from a 1D TMSBX3 nanowire will increase the electron count within the BX3 inorganic framework and form half-filled 1D bands, which typically induce Peierls distortions and open bandgaps. However, as explicitly confirmed above, the quasi-1D nature or circumferential interactions between large I 5p lone-pair orbitals can avoid direct interactions between Pb cations or the contracting-expanding distortion of [BX3] octahedral cages [6]. Namely, the suppression of Peierls distortion in PbI3, GeI3 and SnI3 nanowires can be understood in terms of the quasi-1D character of the BX3 nanowire atomic structure and the large size of I anions. More detailed discussions can be found in Sect. 2.3 and Additional Fig. 9 of Ref. [6].

Next, we explored the dynamic stabilities of GeI3 and SnI3 inorganic frameworks by calculating their phonon spectra. We find that imaginary phonon modes are absent in the phonon band dispersion of GeI3 (Fig. 2c, left), which confirms the stability of this 1D semimetallic nanostructure. On the other hand, the phonon spectra of SnI3 displayed significant imaginary modes, which indicates its unstable nature (Fig. 2c, right). Their vibrational projected density of states (DOS) revealed that iodine is the major contributor for the low-frequency phonon modes of BX3 frameworks (Fig. 2c). Having identified the inorganic GeI3 column as the promising non-toxic alternative to PbI3, we further confirmed its semi-metallic character by employing Heyd−Scuseria−Ernzerhof (HSE) hybrid functional that corrects the self-interaction error within the local and semi-local DFT exchange-correlation functional [25] (Fig. 2b, middle). In summary, carrying out the screening process, we identified GeI3 as a promising non-toxic 1D semi-metallic material.

Before considering device applications based on GeI3-based heterojunctions, we also discuss the material properties of its parental form, TMSGeI3 perovskite (Fig. 3). In Fig. 3a, we show the calculated electronic band structures of bulk (3D) TMSGeI3 perovskites. At the PBEsol level, we obtain an indirect bandgap of 2.67 eV (Fig. 3a), which is reduced by about 0.43 eV from the bandgap of TMSPbI3 analogues (3.1 eV). We note that this reduced bandgap value is promising in view of photovoltaic applications [5]. Computing the phonon spectrum of TMSGeI3 perovskite (Fig. 3b), we further confirmed the absence of imaginary modes or its high dynamical stability.

Fig. 3
figure 3

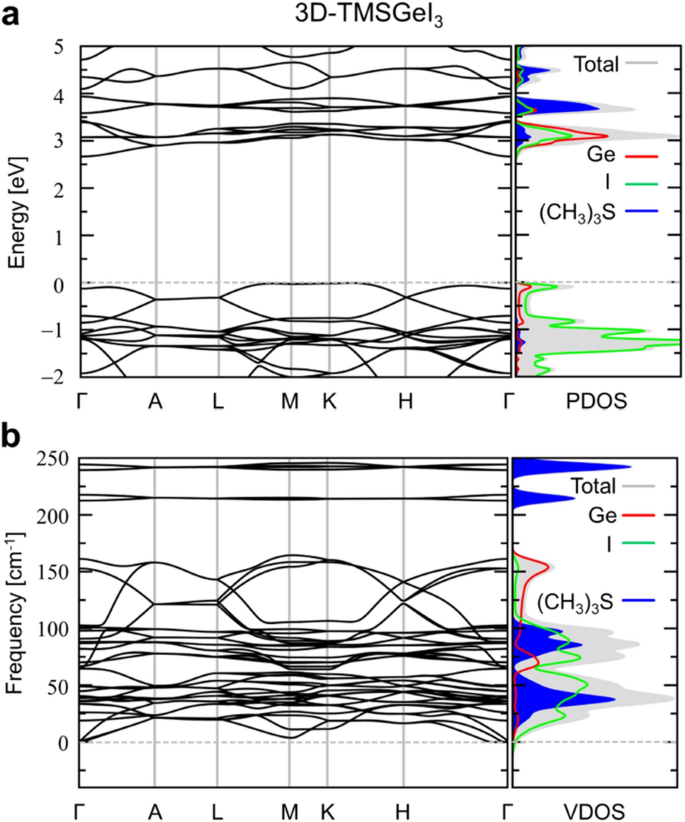

a Electronic band structures and b phonon band spectra obtained from the quasi-1D TMSGeI3 perovskite bulk structure calculated within PBEsol. For both electronic and vibrational DOS, we show the projections to Ge (red lines), I (green lines), and TMS (blue lines). In b, for clarity, high-frequency phonon modes (> 250 cm− 1) originating from (CH3)3 S+ ligands were omitted

Ultrahigh NDR from halide perovskite nanowire junctions and its strain dependence

Adopting the vdW bundled heterojunction nanowires consisting of GeI3-TMSGeI3-GeI3 (Fig. 4a), we next carried out DFT-based NEGF calculations and examined the bias-dependent quantum transport properties. As discussed previously [6], such heterojunction structures could be prepared by selectively peeling off organic TMS ligands from TMSGeI3 through a chemical etching process and exposing stable semimetallic GeI3 columns that can be utilized as electrodes [26]. We previously examined the NDR performance of PbI3-TMSPbI3-PbI3 junctions by varying the length of TMSPbI3 channel length from 3 to 5 unit cells (UCs), and concluded that the five UC (5UC) TMSPbI3 case provides the overall best NDR metrics with the PVR of 17.4 and the peak current density of ~ 921 kA·cm− 2. We thus adopted a similarly-dimensioned 5UC TMSGeI3 channel and present the calculated JVb characteristics in Fig. 4b (black solid line). With the sub-5 nm long channel, we obtain excellent NDR performances characterized by a high PVR up to 44.3 and a very high peak current density reaching ~ 2741 kA·cm− 2 achieved at low-bias voltage regimes (< 0.8 V). Particularly, compared to the NDR device metrics of the reference PbI3-5UC TMSPbI3-PbI3 counterpart (gray dashed line in Fig. 4b), we find that those from the GeI3-TMSGeI3-GeI3 junction are far superior except that the NDR peak and valley appear at slightly higher bias voltage values of Vb = 0.5 and 0.8 V, respectively.

Fig. 4
figure 4

a The optimized atomic structure of van der Waals bundled GeI3-TMSGeI3-GeI3 nanowire junctions based on the 5UC TMSGeI3 channel. Red and blue boxes indicate the electrode regions that are replaced by separate semi-infinite electrode models and retained as scattering regions, respectively, within NEGF quantum transport calculations. b The J-Vb characteristics of the GeI3-5UC TMSGeI3-GeI3 and PbI3-5UC TMSPbI3-PbI3 junctions. c Valance band maxima-region projected local DOS (left panels) and transmission spectra (right panels) of the GeI3-5UC TMSGeI3-GeI3 junction at Vb = 0 V (left) 0.5 V (middle), and 0.8 V (right), respectively. Conduction band minimum-region data are not shown for clarity. Solid and dotted lines indicate the Fermi levels in the GeI3 electrodes and the quasi-Fermi levels in the TMSGeI3 channel, respectively. Blue shaded boxes in b and c indicate the applied voltage windows

To explain the mechanisms of the appearance of NDRs in GeI3-TMSGeI3-GeI3 junctions, we show in Fig. 4c the development of projected local electronic DOS across a GeI3-TMSGeI3-GeI3 junction with increasing Vb values. The first notable feature is that at \({V}_{b}\)= 0.0 V (Fig. 4c left panel) the hole Schottky barrier height (SBH) at the TMSGeI3-GeI3 interface is only ~ 0.25 eV, which apparently originates from the fact that the same GeI3 inorganic framework is shared throughout the GeI3-TMSGeI3-GeI3 junction. The marginal hole SBH then allows the appearance of ample metal induced gap states (MIGS) spatially within the TMSGeI3 channel region and energetically between the TMSGeI3 valence band maximum (dotted lines) and the GeI3 Fermi levels (solid lines). Different from conventional MIGS [27, 28], they are quantum-hybridized states entangling two GeI3 electrode states and the special electrode-channel-electrode quantum-hybridized character can be confirmed by observing their response to finite bias voltages and corresponding transmissions. Specifically, upon increasing the applied bias, we find that until \({V}_{b}\)= 0.5 V (NDR peak; Fig. 4c middle panel) that corresponds to twice of the hole SBH (0.25 eV) the MIGS bound by quasi-Fermi levels (dotted lines) tilt symmetrically [22], maintaining the hybridization across the TMSGeI3 channel and producing large transmission values. However, upon further increasing the bias to \({V}_{b}\)= 0.8 V (NDR valley; Fig. 4c right panel), we observe that the spatial hybridization becomes abruptly broken and MIGS are distributed into an asymmetric form (MIGS accumulated near the left GeI3 electrode) with negligible transmission values. This quantum-hybridization NDR mechanism will be once more explained below based on molecular projected Hamiltonian eigenstates (see Fig. 5d).

Fig. 5
figure 5

a The NDR J-Vb characteristics of the van der Waals bundled GeI3-5UC TMSGeI3-GeI3 junction under + 4% (compressive), 0%, and −4% (tensile) uniaxial strains. b Electronic transmission spectra of the unstrained as well as strained device at different Vb values. Orange and cyan left triangle indicate the points that contribute most strongly to quantum tunneling at NDR peak and valley, respectively. c Electronic band structures of 1D GeI3 columns and quasi-1D TMSGeI3 at +4%, 0%, and 4% uniaxial strains. d Molecular projected Hamiltonian states for the NDR device with compressive strain (top) and without strain (bottom) at the NDR peak (left) and valley (right) positions, respectively. The isosurface level is 3 × 10− 3 Å−3

The differences between the quantum-hybridization NDR performance of the GeI3-TMSGeI3-GeI3 junction and that of the PbI3-TMSPbI3-PbI3 counterpart [6, 14] can be then understood in terms of the differences in SBHs (~ 0.25 eV at the GeI3-TMSGeI3 interface vs. ~ 0.15 eV at the PbI3-TMSPbI3 interface) and channel lengths (36.6 Å of the 5UC TMSGeI3 vs. 39.8 Å of the 5UC TMSPbI3). Specifically, compared with the PbI3-TMSPbI3-PbI3 case, the shorter channel length (larger SBH) of the GeI3-TMSGeI3-GeI3 junction results in the increased NDR peak current density (bias voltage position). The shift of the NDR peak position to a higher bias regime will result in a similar upshift of the NDR valley position. This will then allow a more dramatic collapse of quantum-hybridized states, which should translate into the reduction of the NDR valley current density or the enhancement of NDR PVR.

Finally, in view of wearable and flexible electronics applications, we applied uniaxial strain along the c-axis at constant volume by compressing and stretching the GeI3-TMSGeI3-GeI3 junction and repeated the room temperature transport calculations. Figure 5a and b show the JVb characteristics of the GeI3-TMSGeI3-GeI3 junctions with 4% compressive (red circle) and 4% tensile (blue triangle) strain applied and the corresponding transmission spectra, respectively. In Fig. 5a, we can confirm the robustness of NDR signals at low-bias operating conditions (< 0.8 V) regardless of the applied strain. While the NDR peaks appear at more or less similar Vb value of ~ 0.5 V, the NDR valleys are shifted to higher Vb values with increasing compressive strain. The subsequent analysis of the electronic structures of bundled GeI3 and TMSGeI3 with compressive and tensile strain along the c-axis clarifies that the semimetallicity of GeI3 is robustly preserved within \(\pm\)4% uniaxial strain conditions (Fig. 5c). Overall, we found that the application of a compressive strain further leads to the enhancement of the NDR performance: Compared to the unstrained junction, the PVR value significantly increases from 44.3 to 87.1 at 4 compression. Moreover, with the 4 compression, the peak current density is significantly enhanced from 2741 to 5365 kA·cm− 2 (Fig. 5a). On the other hand, the decrease in the peak current density upon stretching was obtained as shown in Fig. 5a. These variations in the peak current density can be understood in terms of the change in the coupling strength between electrode and channel states [19]. Via shortening the distance between GeI3 electrodes, the hybridization of TMSGeI3-GeI3 interface states and accordingly their spatial extensions are substantially increased. This can be directly visualized through the molecular projected Hamiltonian eigenstates [20,21,22] that contribute most strongly to quantum transport (orange left triangle in Fig. 5b): compared to the unstrained case, as shown in the top panel of Fig. 5d, the compressive strain or the shortened TMSGeI3-GeI3 interfacial bond length results in strong delocalization of interfacial states into the channel region. On the other hand, under the tensile strain, the extended TMSGeI3-GeI3 interfacial bond length should cause the weakening of their coupling strength and decrease the peak current density.

Conclusions

In summary, carrying out combined DFT and NEGF calculations, we explored structural, electronic, and charge transport properties of the lead-free non-toxic hybrid halide perovskite TMSGeI3 nanowires, their GeI3 inorganic frameworks, and GeI3-TMSGeI3-GeI3 junctions. Through a computational screening process, we first identified that the 1D GeI3 inorganic framework that adapts a face-sharing [GeI6] octahedral geometry exhibits a metallic behavior without Peierls distortion and is dynamically stable. Concurrently, we confirmed the semiconducting character of the quasi-1D parental TMSGeI3 perovskite nanowires as well as its dynamical stability. Next, adopting the van der Waals bundled nanowire heterojunction structures in which TMSGeI3 channels with sub-5 nm dimensions are sandwiched between GeI3 electrodes, we predicted that excellent NDR characteristics can be obtained. Characterized by drastically high peak current density (~ 2741 kA·cm−2) and room-temperature resistive switching ratio (PVR ≈ 44.3), we emphasized that these NDR metrics emerge from the quantum hybridization NDR mechanism. Finally, in view of flexible electronics applications, we confirmed that the NDR performances are robustly preserved under uniaxial tensile and compressive strains and particularly the NDR peak current density and PVR can be further enhanced to 5365 kA·cm−2 and 87.1, respectively, under 4% compressive strain. Our work demonstrates the significant potential of low-dimensional hybrid halide perovskites for the realization of beyond-CMOS and wearable flexible electronic devices.

Availability of data and materials

Not applicable.

References

  1. W.-J. Yin, J.-H. Yang, J. Kang, Y. Yan, S.-H. Wei, J. Mater. Chem. A 3, 8926 (2015)

    CAS  Article  Google Scholar

  2. M.V. Kovalenko, L. Protesescu, M.I. Bodnarchuk, Science 358, 745 (2017)

    CAS  Article  Google Scholar

  3. Q.A. Akkerman, G. Raino, M.V. Kovalenko, L. Manna, Nat. Mater. 17, 394 (2018)

    CAS  Article  Google Scholar

  4. H.J. Snaith, Nat. Mater. 17, 372 (2018)

    CAS  Article  Google Scholar

  5. A.K. Jena, A. Kulkarni, T. Miyasaka, Chem. Rev. 119, 3036 (2019)

    CAS  Article  Google Scholar

  6. M.E. Khan, J. Lee, S. Byeon, Y.-H. Kim, Adv. Funct. Mater. 29, 1807620 (2019)

    Article  Google Scholar

  7. A. Nourbakhsh, A. Zubair, M.S. Dresselhaus, T. Palacios, Nano Lett. 16, 1359 (2016)

    CAS  Article  Google Scholar

  8. J. Shim et al., Nat. Commun. 7, 13413 (2016)

    CAS  Article  Google Scholar

  9. H. Son, J. Lee, T.H. Kim, S. Choi, H. Choi, Y.-H. Kim, S. Lee, Appl. Surf. Sci. 581, 152396 (2022)

    CAS  Article  Google Scholar

  10. F. Giustino, H.J. Snaith, ACS Energy Lett. 1, 1233 (2016)

    CAS  Article  Google Scholar

  11. A.M. Ganose, C.N. Savory, D.O. Scanlon, Chem. Commun. 53, 20 (2016)

    Article  Google Scholar

  12. S. Chakraborty, W. Xie, N. Mathews, M. Sherburne, R. Ahuja, M. Asta, S.G. Mhaisalkar, ACS Energy Lett. 2, 837 (2017)

    CAS  Article  Google Scholar

  13. Z. Xiao, Z. Song, Y. Yan, Adv. Mater. 31, e1803792 (2019)

    Article  Google Scholar

  14. T.H. Kim, J. Lee, R.-G. Lee, Y.-H. Kim, Npj Comput. Mater. 8, 50 (2022)

    CAS  Article  Google Scholar

  15. G. Kresse, D. Joubert, Phys. Rev. B 59, 1758 (1999)

    CAS  Article  Google Scholar

  16. J.P. Perdew, A. Ruzsinszky, G.I. Csonka, O.A. Vydrov, G.E. Scuseria, L.A. Constantin, X. Zhou, K. Burke, Phys. Rev. Lett. 100, 136406 (2008)

    Article  Google Scholar

  17. J.M. Soler, E. Artacho, J.D. Gale, A. García, J. Junquera, P. Ordejón, D. Sánchez-Portal, J. Phys. Condens. Matter 14, 2745 (2002)

    CAS  Article  Google Scholar

  18. M. Brandbyge, J.-L. Mozos, P. Ordejón, J. Taylor, K. Stokbro, Phys. Rev. B 65, 165401 (2002)

    Article  Google Scholar

  19. S. Datta, Electronic Transport in Mesoscopic Systems (Cambridge University Press, Cambridge, 1995)

    Book  Google Scholar

  20. Y.-H. Kim, S.S. Jang, Y.H. Jang, W.A. Goddard III, Phys. Rev. Lett. 94, 156801 (2005)

    Article  Google Scholar

  21. J. Lee, H.S. Kim, Y.-H. Kim, Adv. Sci. 7, 2001038 (2020)

    CAS  Article  Google Scholar

  22. J. Lee, H. Yeo, Y.-H. Kim, Proc. Natl. Acad. Sci. U. S. A. 117, 10142 (2020)

    CAS  Article  Google Scholar

  23. A. Kaltzoglou et al., Inorg. Chem. 56, 6302 (2017)

    CAS  Article  Google Scholar

  24. A. Kaltzoglou et al., Polyhedron 140, 67 (2018)

    CAS  Article  Google Scholar

  25. J. Heyd, G.E. Scuseria, M. Ernzerhof, J. Chem. Phys. 124, 219906 (2006)

    Article  Google Scholar

  26. E.W. Elliott, R.D. Glover, J.E. Hutchison, ACS Nano 9, 3050 (2015)

    CAS  Article  Google Scholar

  27. Y.-H. Kim, H.S. Kim, Appl. Phys. Lett. 100, 213113 (2012)

    Article  Google Scholar

  28. B.-K. Kim et al., Npj 2D Mater. Appl. 5, 9 (2021)

    CAS  Article  Google Scholar

Download references

Acknowledgements

None.

Funding

This work was supported by the Samsung Research Funding & Incubation Center of Samsung Electronics (No. SRFC-TA2003-01). Computational resources were provided by KISTI Supercomputing Center (KSC-2018-C2-0032).

Author information

Authors and Affiliations

Authors

Contributions

YHK oversaw the project, and JL and MEK carried out calculations. All authors analyzed the computational results and co-wrote the manuscript. All authors read and approved the final manuscript.

Corresponding author

Correspondence to Yong-Hoon Kim.

Ethics declarations

Competing interests

The authors declare that they have no competing interests.
